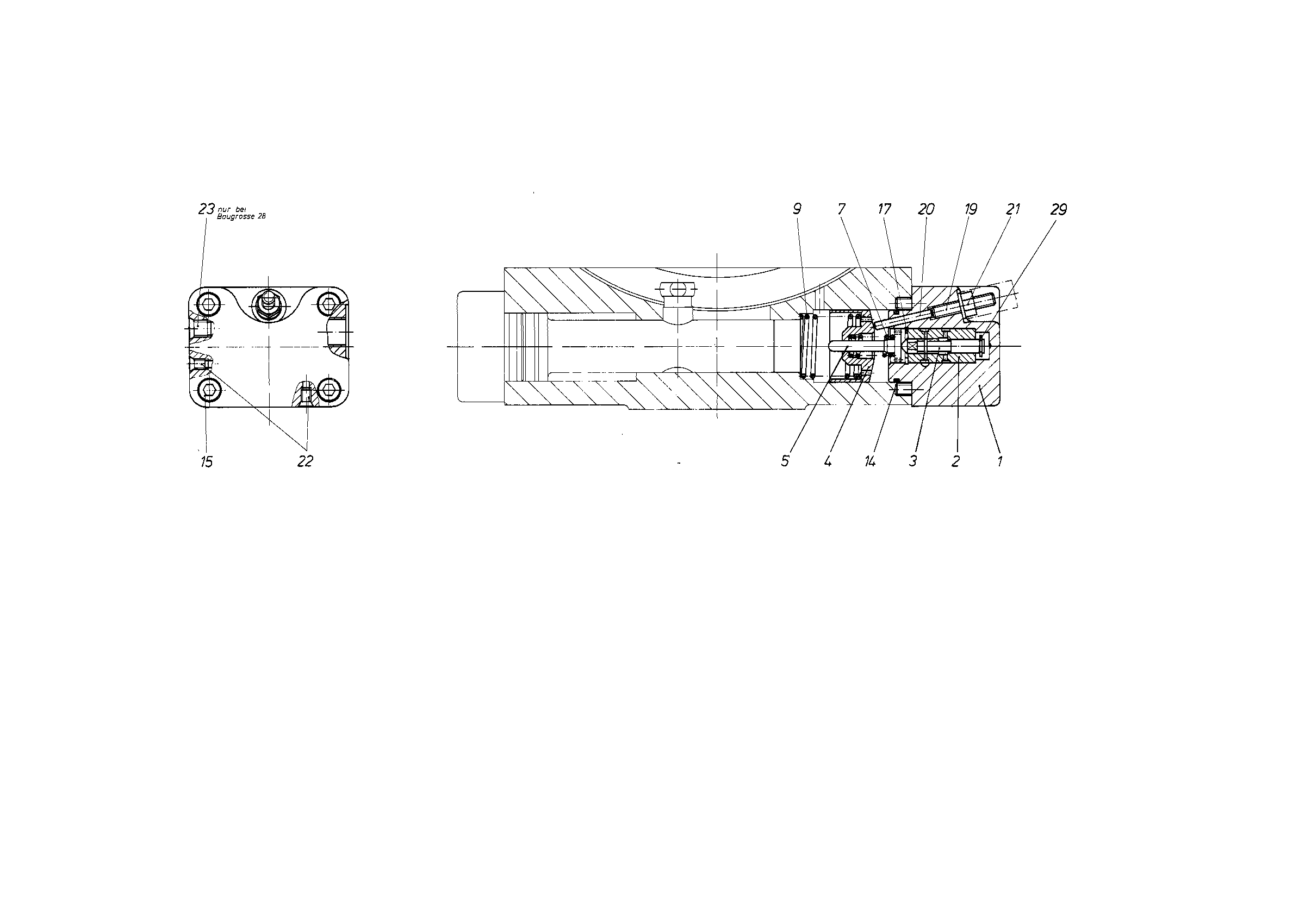

Assembly
CONTROL PARTR909420686
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238023 | CONTROL HOUSING | 1 | ||
| R909417512 | CONTROL SLEEVE | 1 | ||
| 3 | R902045455 | CONTROL PISTON | 1 | |
| 4 | R909651118 | ADJUSTING BUSHING | 1 | |
| 5 | R909921339 | SPRING DISK | 1 | |
| 7 | R909430757 | COMPRESSION SPRING | 1 | |
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| 14 | R902600641 | O-RINGD | 1 | |
| R910126446 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087166 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909085812 | LOCKING WASHER | 1 |
