Assembly

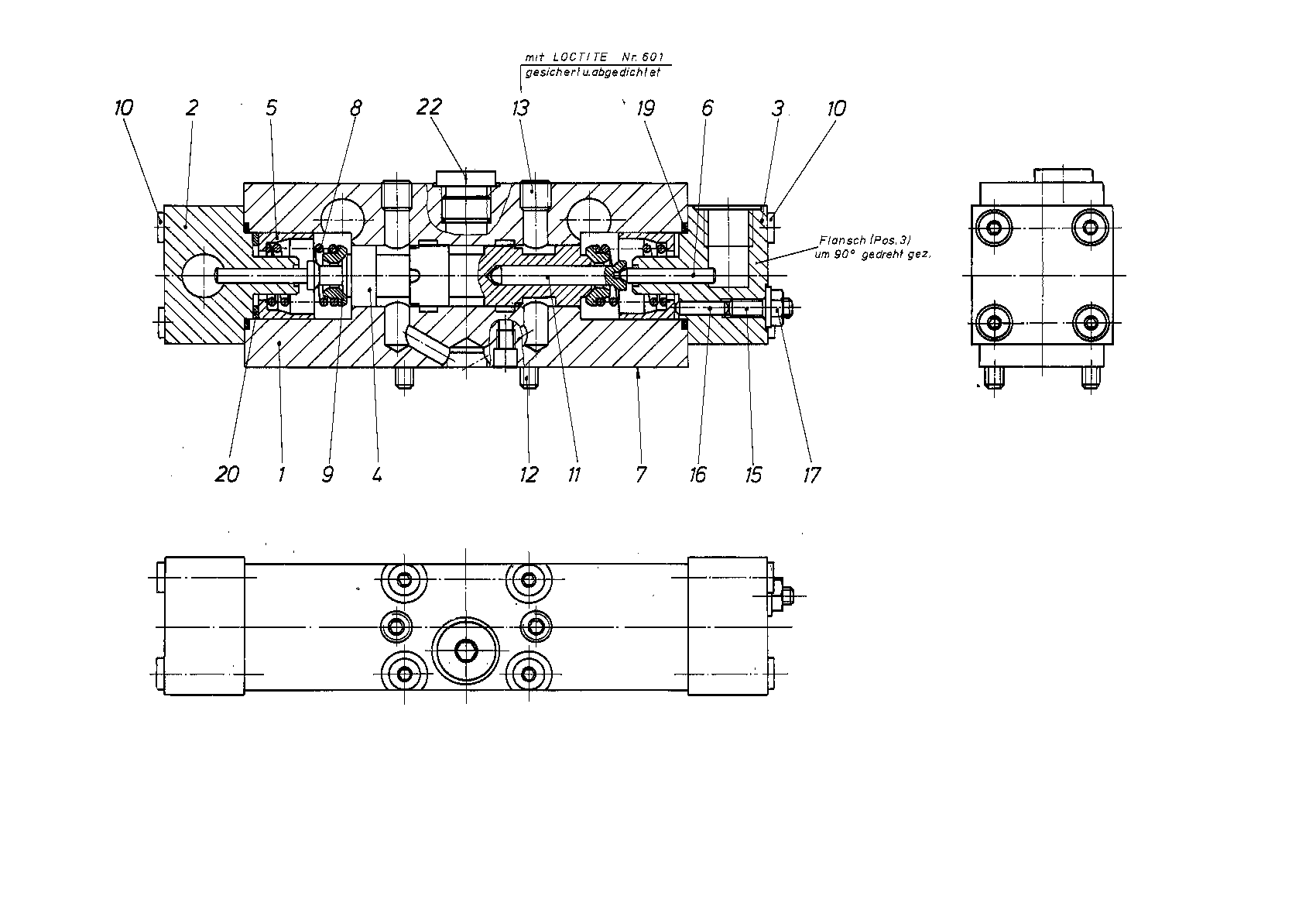

TORQUE-PRESSURE CONTROL VALVER909420893
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408261 | VALVE HOUSING | 1 | ||
| 2 | R909440628 | FLANGE | 1 | |
| 3 | R909440629 | FLANGE | 1 | |
| 4 | R909420894 | CONTROL PISTON | 1 | |
| R909077005 | SPRING BUSH | 2 | ||
| 6 | R909413667 | PISTON | 2 | |
| R902603829 | SEALD | 1 | ||
| 8 | R909077012 | COMPRESSION SPRING | 2 | |
| 9 | R909413665 | SPRING DISK | 2 | |
| R909083024 | SOCKET HEAD CAP SCREW | 8 | ||
| 11 | R909413666 | PRESSURE PIN | 2 | |
| 12 | R909083030 | SOCKET HEAD CAP SCREW | 4 | |
| R909407584 | SETSCREW | 2 | ||
| 15 | R909086136 | SETSCREW | 1 | |
| R909084155 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| 19 | R909086731 | O-RINGD | 2 | |
| R909085679 | SUPPORTING DISC | 1 | ||
| R909151979 | SCREW PLUG | 1 |
