Assembly

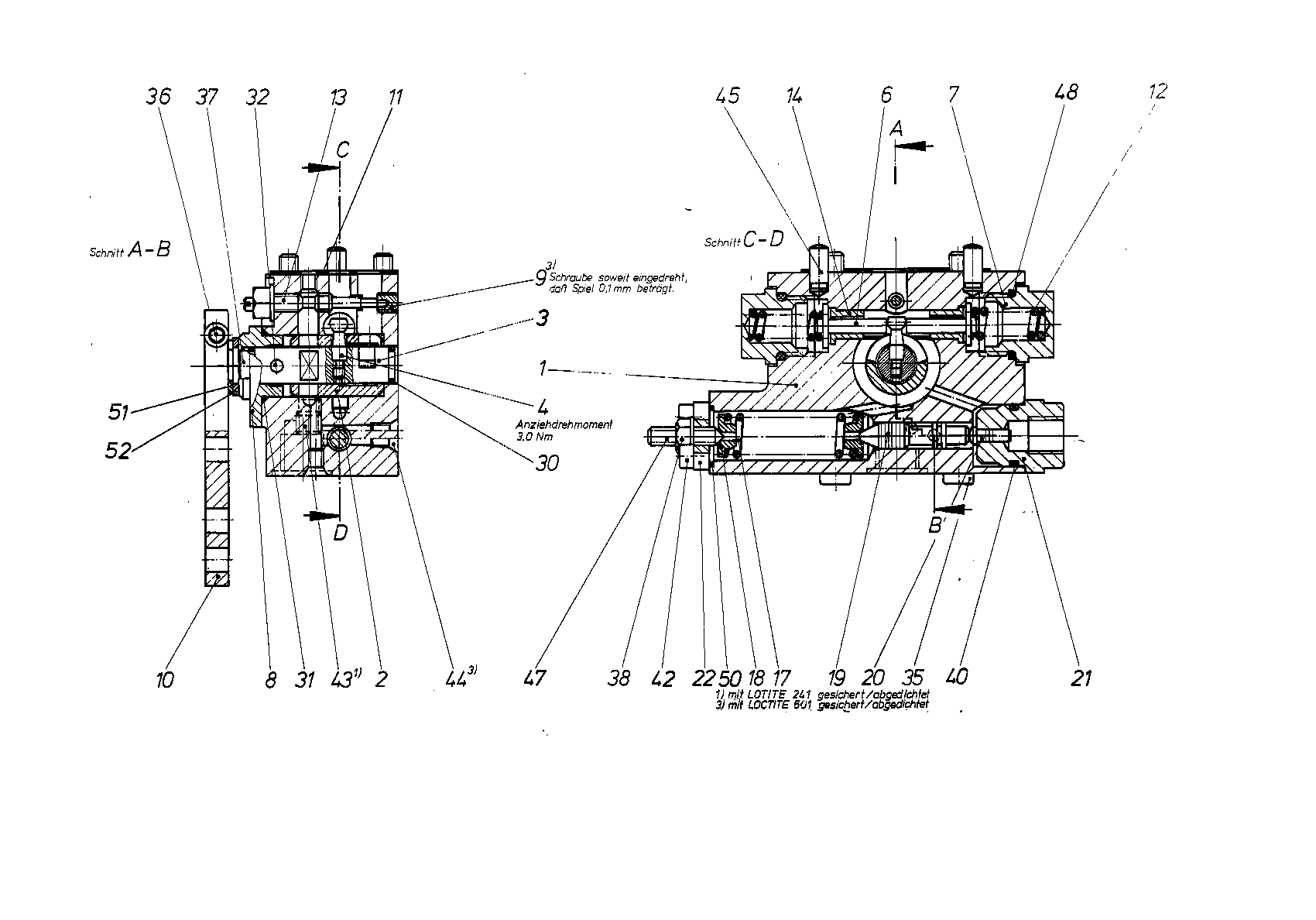

CONTROL UNITR909420967
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909408291 | HOUSING | 1 | |
| 2 | R909439059 | CONTROL SLEEVE | 1 | |
| 3 | R909076420 | CONTROL SHAFT | 1 | |
| 4 | R909425121 | POSITIONING STUD | 1 | |
| R909425120 | BOLT | 2 | ||
| R909400335 | SCREW PLUG | 2 | ||
| 8 | R909436541 | COVER | 1 | |
| 9 | R902016196 | SETSCREW | 1 | |
| R909401723 | LEVER | 1 | ||
| 11 | R902603829 | SEALD | 1 | |
| R909416191 | COMPRESSION SPRING | 2 | ||
| 13 | R909079473 | ECCENTRIC PIN | 1 | |
| 14 | R909400336 | BUSHING | 2 | |
| 17 | R909426938 | COMPRESSION SPRING | 1 | |
| 18 | R909420971 | SPRING DISK | 2 | |
| 19 | R909405777 | CONTROL PISTON | 1 | |
| 20 | R909435880 | PISTON | 1 | |
| 21 | R909404572 | CONNECTION HOUSING | 1 | |
| 22 | R909404507 | COVER | 1 | |
| 30 | R909083728 | O-RINGD | 2 | |
| 31 | R909086432 | O-RINGD | 1 | |
| 32 | R909156217 | NEEDLE-ROLLER | 1 | |
| 35 | R909085700 | SOCKET HEAD CAP SCREW | 4 | |
| 36 | R909083012 | SOCKET HEAD CAP SCREW | 1 | |
| 37 | R909083183 | SOCKET HEAD CAP SCREW | 2 | |
| R909152425 | SEALING NUT | 2 | ||
| 40 | R909084939 | O-RINGD | 1 | |
| 42 | R909083009 | SOCKET HEAD CAP SCREW | 4 | |
| 43 | R909153572 | SCREW PLUG | 1 | |
| 44 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R913009677 | STRAIGHT PIN | 2 | ||
| R909157096 | SETSCREW | 1 | ||
| R909083757 | O-RINGD | 2 | ||
| 50 | R909083734 | O-RINGD | 1 | |
| 51 | R909083346 | RETAINING RING | 1 | |
| R909086180 | SHIM RING | 1 |
