Assembly

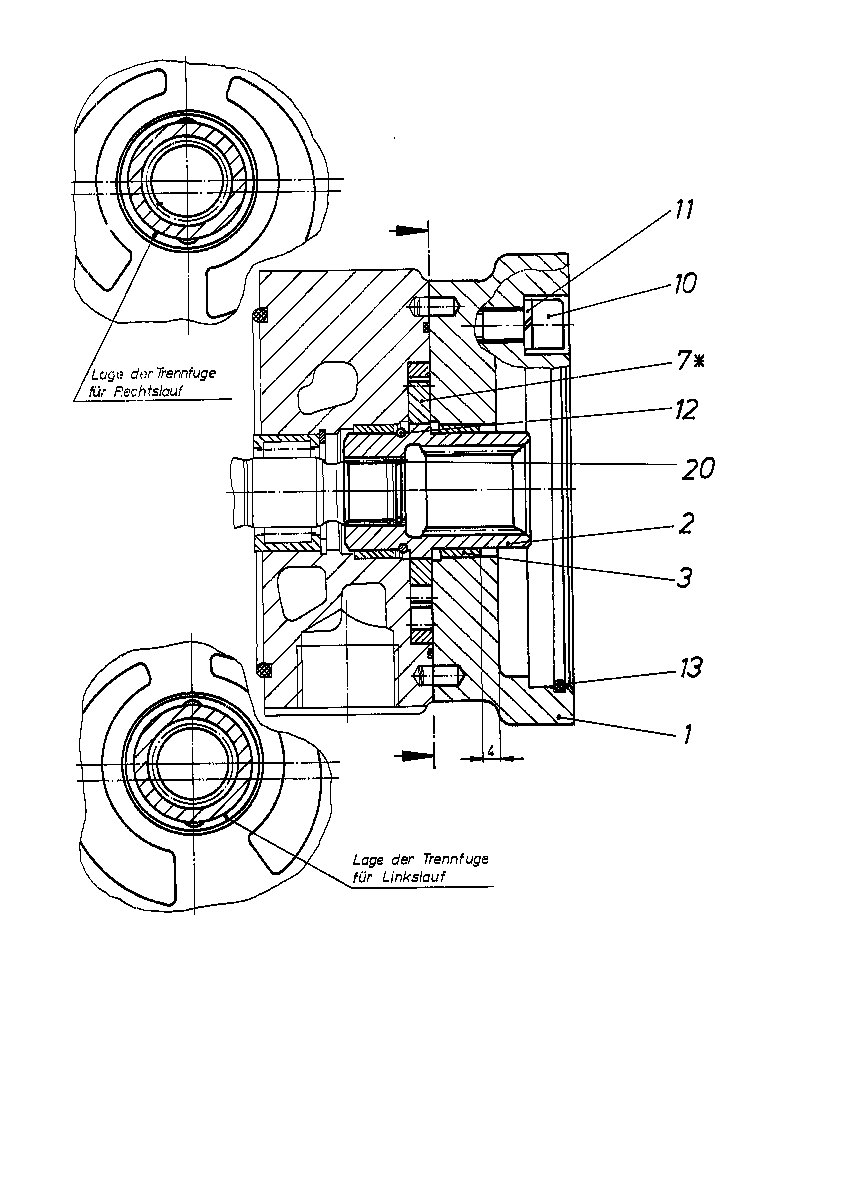

INTERNAL GEAR PUMP ASSEMBLYR909421140
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419655 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909431322 | THROUGH DRIVE SHAFT | 1 | |
| R909432238 | BUSHING | 1 | ||
| 7 | R909157180 | WHEEL SET | 1 | |
| 10 | R909154979 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909153834 | SNAP RING | 1 | ||
| 13 | R909154589 | O-RINGD | 1 | |
| R909083381 | RETAINING RING | 1 |
