Assembly

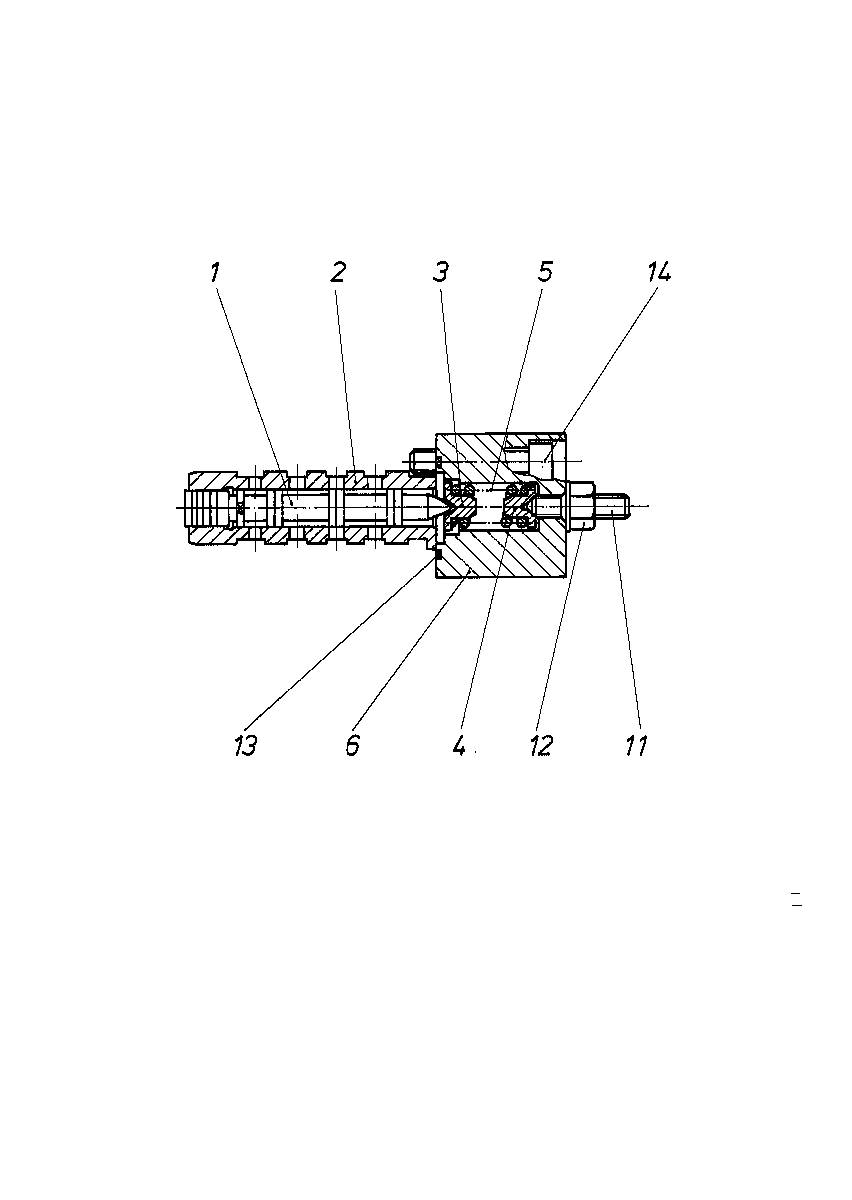

CONTROL PARTR909421278
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421258 | CONTROL PISTON | 1 | ||
| R909421259 | CONTROL SLEEVE | 1 | ||
| R909416960 | SPRING DISK | 1 | ||
| R909416961 | SPRING DISK | 1 | ||
| R909416364 | COMPRESSION SPRING | 1 | ||
| R909421252 | COVER | 1 | ||
| 11 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| 13 | R909086250 | O-RINGD | 1 | |
| R909083025 | SOCKET HEAD CAP SCREW | 2 |
