Assembly

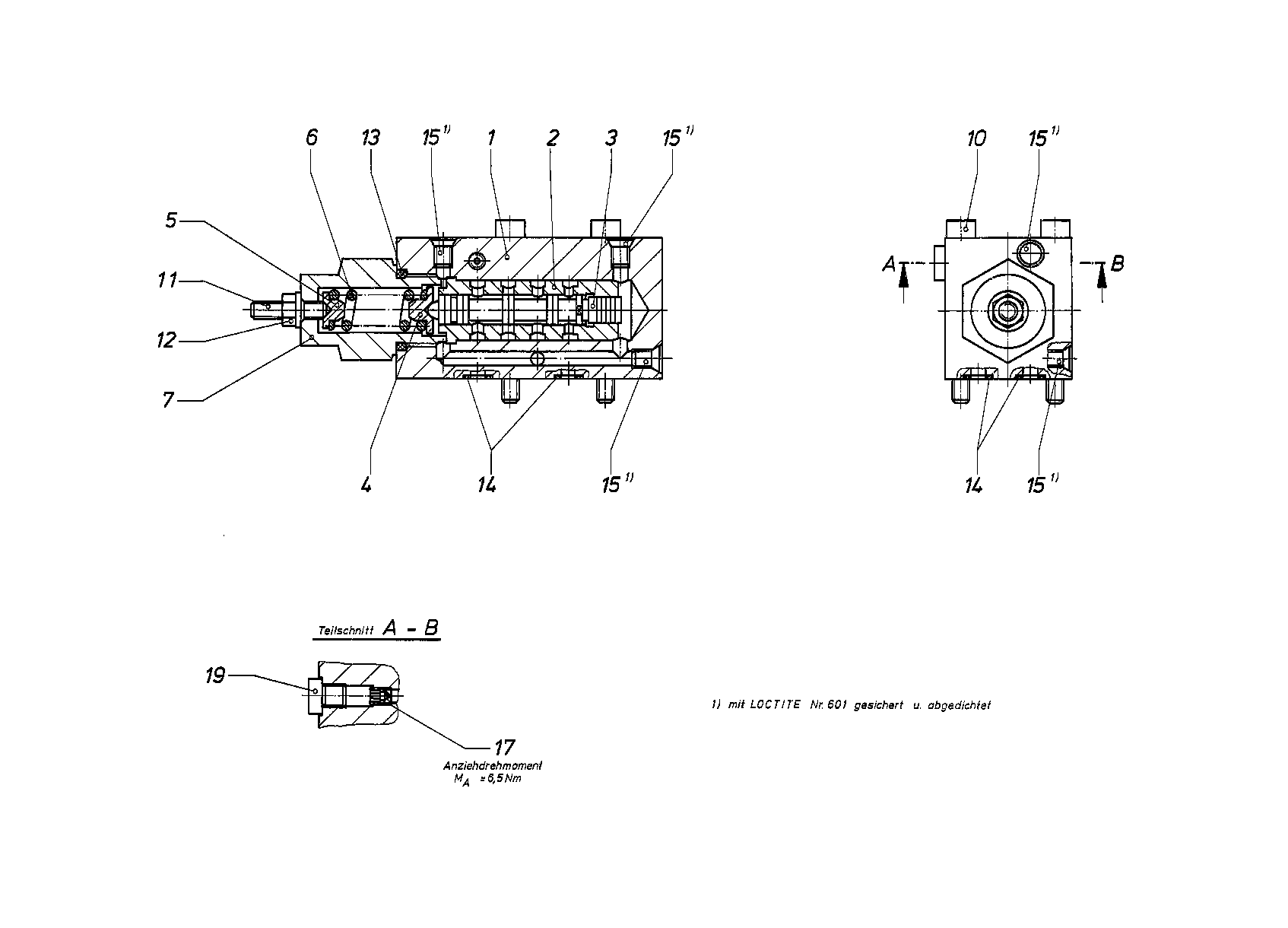

SEQUENCE VALVER909421939
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421940 | HOUSING | 1 | ||
| R909418806 | CONTROL SLEEVE | 1 | ||
| R909418853 | CONTROL PISTON | 1 | ||
| R909421397 | SPRING DISK | 1 | ||
| R909421396 | SPRING DISK | 1 | ||
| R909416360 | COMPRESSION SPRING | 1 | ||
| R909425332 | SCREW PLUG | 1 | ||
| R909083029 | SOCKET HEAD CAP SCREW | 4 | ||
| R909420990 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909156492 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
