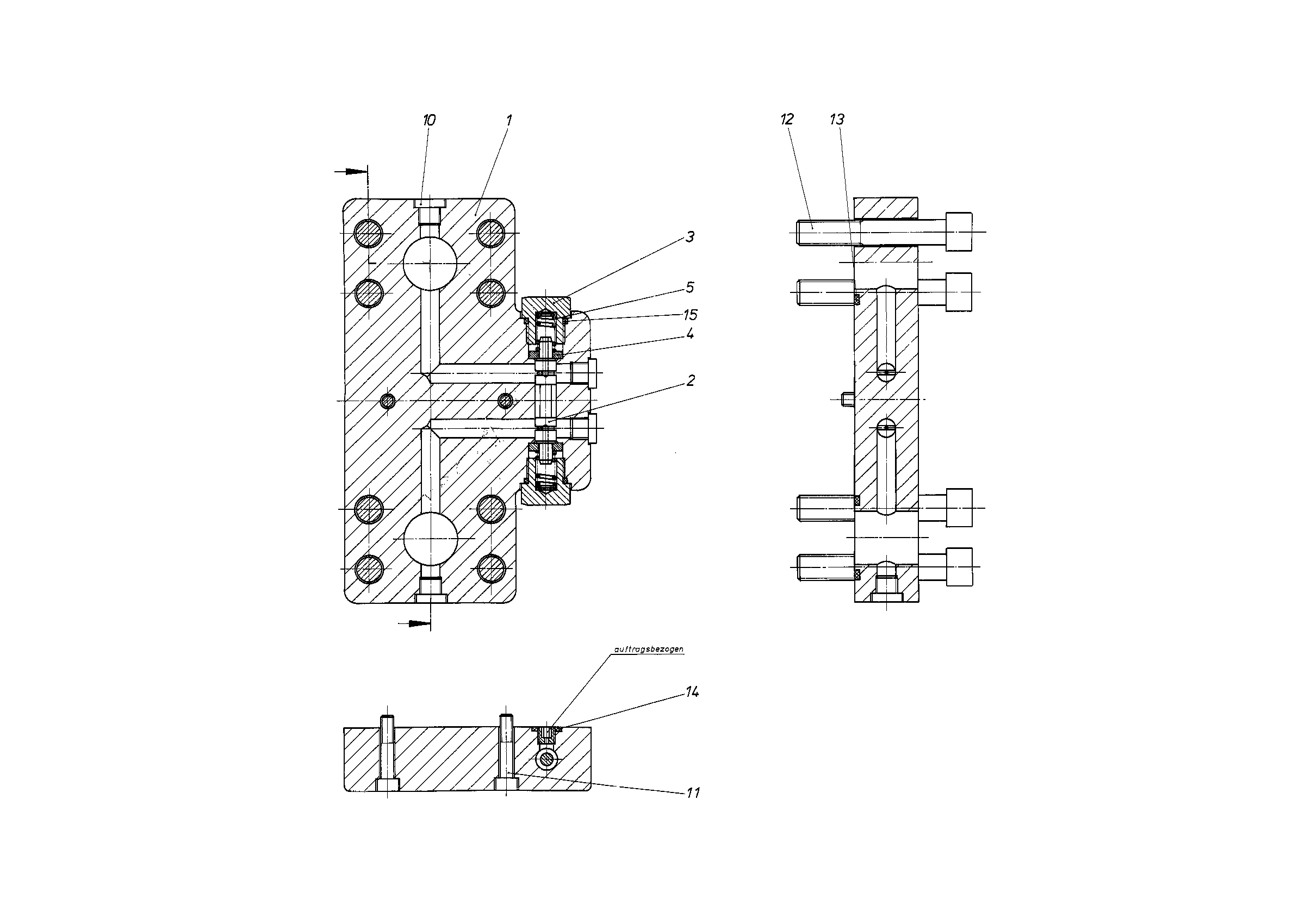

Assembly
FLUSHING VALVER909422099
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909422098 | FLUSHING VALVE PLATE | 1 | ||
| 2 | R909432410 | FLUSHING PISTON | 1 | |
| 3 | R909417111 | SCREW PLUG | 2 | |
| R909417112 | WASHER | 2 | ||
| 5 | R909417113 | COMPRESSION SPRING | 2 | |
| R909153364 | SCREW PLUGD | 4 | ||
| 11 | R909083024 | SOCKET HEAD CAP SCREW | 2 | |
| R909083098 | SOCKET HEAD CAP SCREW | 8 | ||
| 13 | R909086659 | O-RINGD | 2 | |
| R909083749 | O-RINGD | 1 | ||
| 15 | R909086435 | O-RINGD | 2 |
