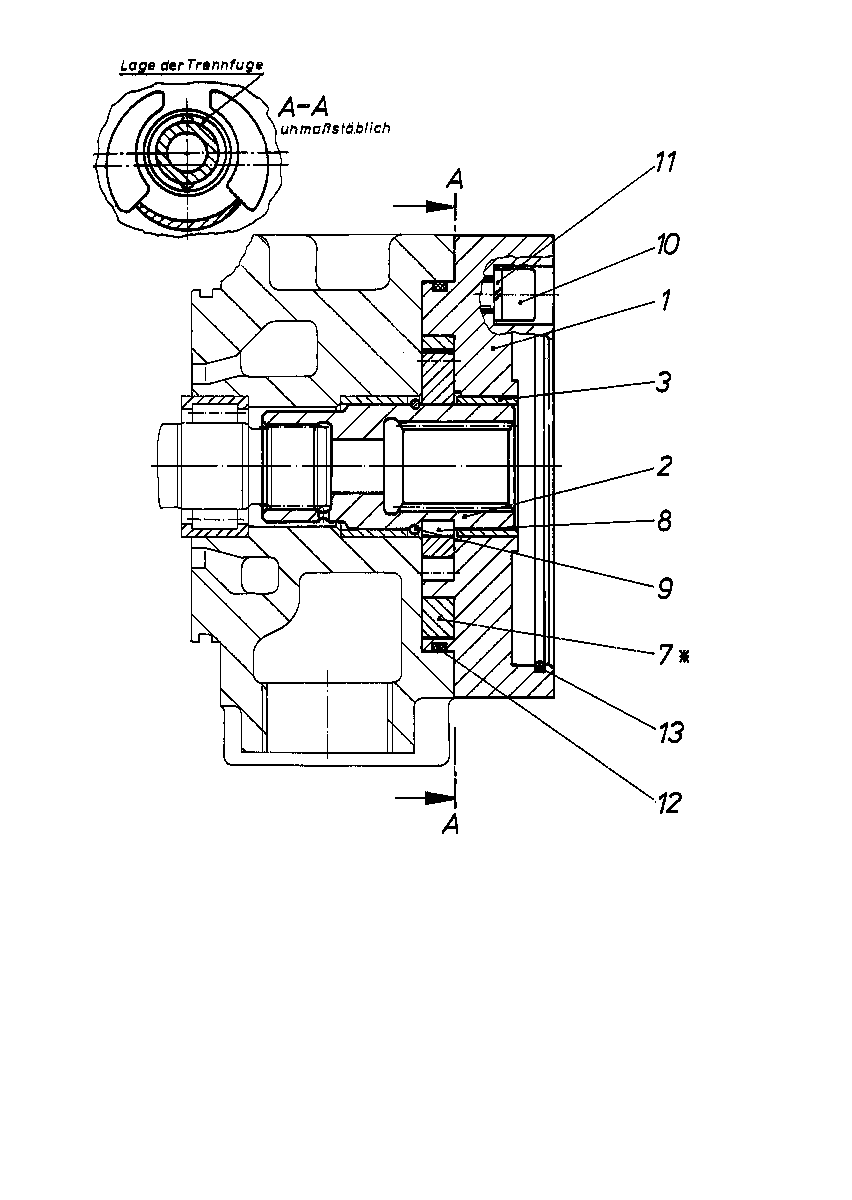

Assembly
INTERNAL GEAR PUMPR909422188
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909439863 | INTERMEDIATE FLANGE | 1 | |
| 2 | R909416461 | THROUGH DRIVE SHAFT | 1 | |
| 3 | R902260545 | BUSHING | 1 | |
| R902006253 | WHEEL SET | 1 | ||
| 8 | R902252407 | PARALLEL KEY | 1 | |
| 9 | R913057533 | SNAP RING | 1 | |
| 10 | R909084746 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909086679 | O-RINGD | 1 | ||
| R909154589 | O-RINGD | 1 |
