Assembly

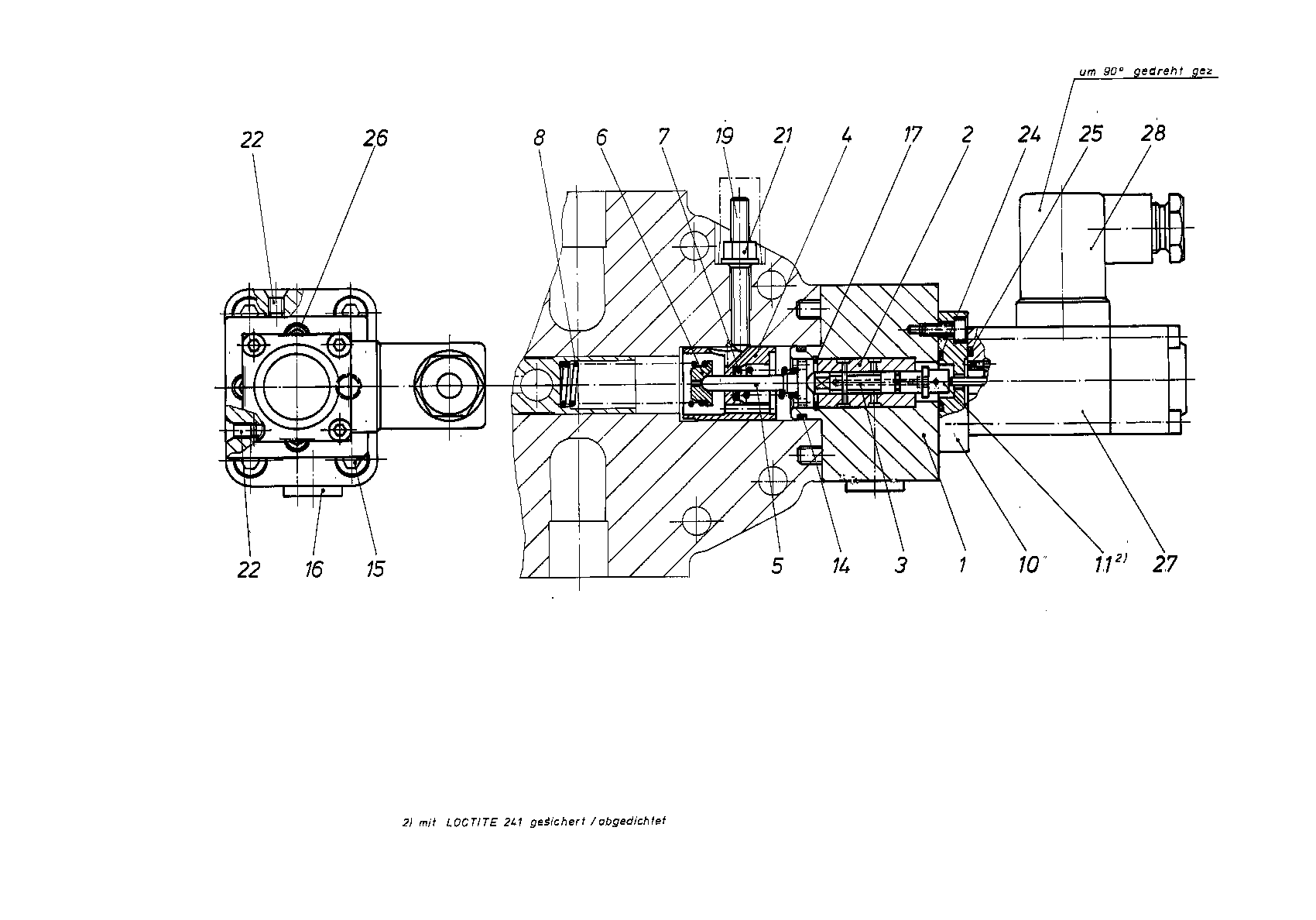

CONTROL PARTR909422283
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909422337 | CONTROL HOUSING | 1 | |
| 2 | R909412246 | CONTROL SLEEVE | 1 | |
| 3 | R909412266 | CONTROL PISTON | 1 | |
| 4 | R909445267 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 6 | R909419854 | SPRING DISK | 1 | |
| 7 | R909413346 | COMPRESSION SPRING | 1 | |
| 8 | R909432467 | COMPRESSION SPRING | 1 | |
| R909422339 | INTERMEDIATE PLATE | 1 | ||
| 11 | R909413339 | STOP SCREW | 1 | |
| 14 | R909086432 | O-RINGD | 1 | |
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909439043 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909083737 | O-RINGD | 1 | ||
| R909083002 | SOCKET HEAD CAP SCREW | 4 | ||
| 27 | R909441694 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 |
