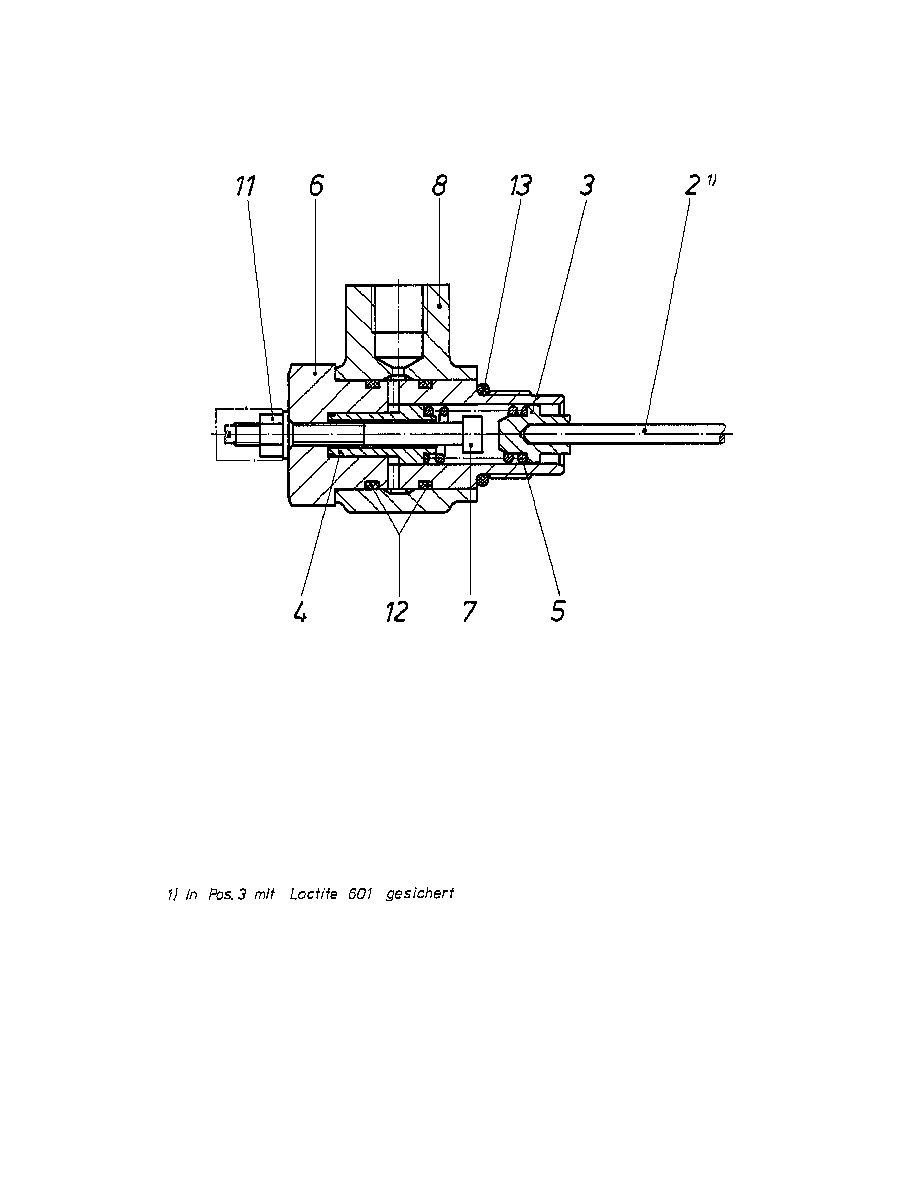

Assembly
ADJUSTING PARTR909422348
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909422349 | PIN | 1 | |
| R909422773 | SPRING DISK | 1 | ||
| R909422351 | CONTROL SLEEVE | 1 | ||
| R909420177 | COMPRESSION SPRING | 1 | ||
| R909430636 | THREADED PART | 1 | ||
| R902090369 | SOCKET HEAD CAP SCREW | 1 | ||
| 8 | R909419771 | CONNECTING PIECE | 1 | |
| 11 | R909152425 | SEALING NUTD | 1 | |
| 12 | R909083761 | O-RINGD | 2 | |
| 13 | R909086517 | O-RINGD | 1 |
