Assembly

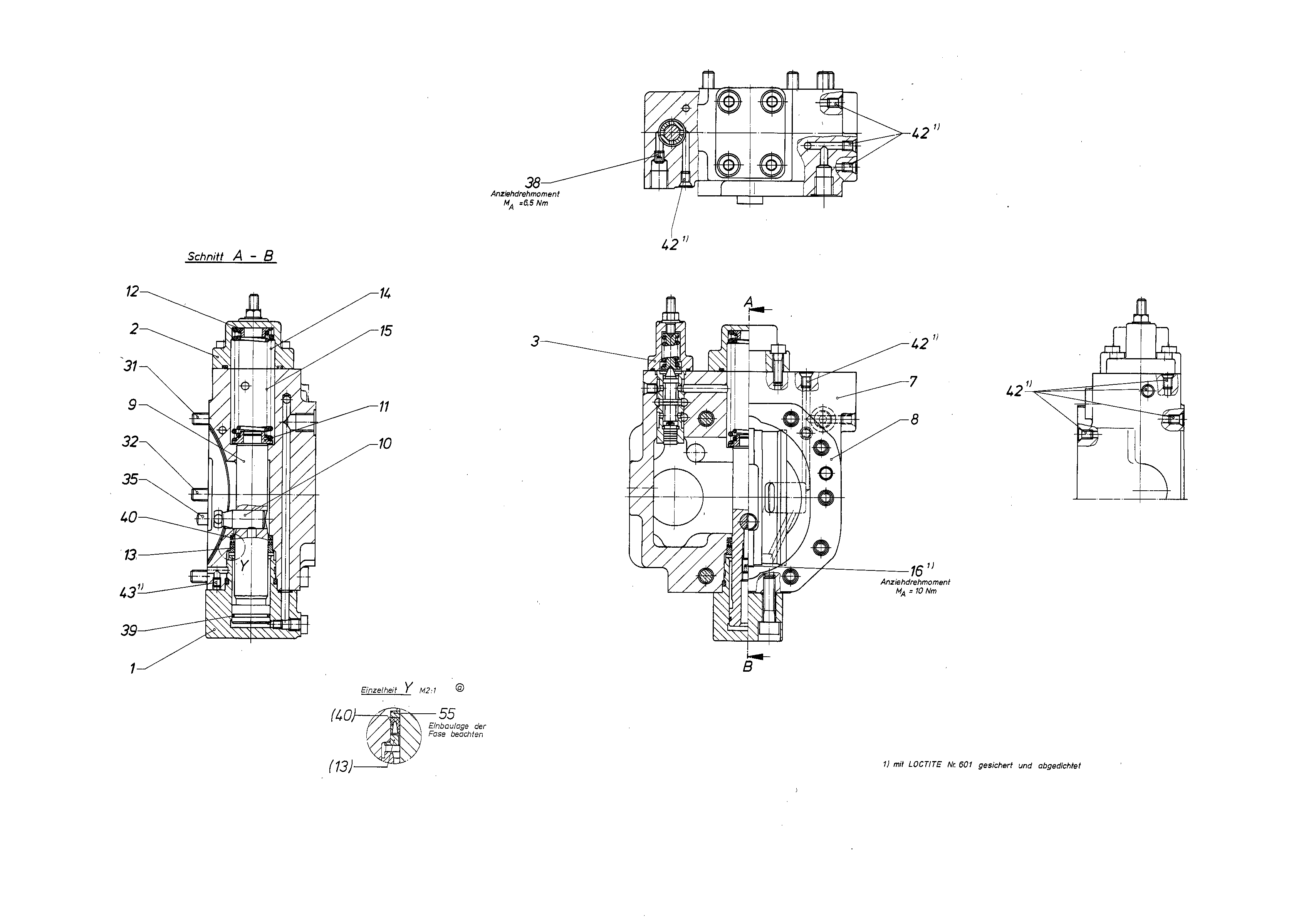

CONTROLR909422701
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421342 | COVER Assembly parts list →L | 1 | ||
| R909421343 | COVER Assembly parts list →L | 1 | ||
| R909421341 | CONTROL PART Assembly parts list →L | 1 | ||
| R909422700 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909425513 | POSITIONING PISTON | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909417663 | SPRING DISK | 1 | ||
| R909417662 | SPRING DISK | 1 | ||
| R909424385 | RING | 1 | ||
| R909417738 | COMPRESSION SPRING | 1 | ||
| R909417739 | COMPRESSION SPRING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909156545 | ROD SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083489 | SETSCREW | 1 | ||
| R909424386 | BACKUP RING | 1 |
