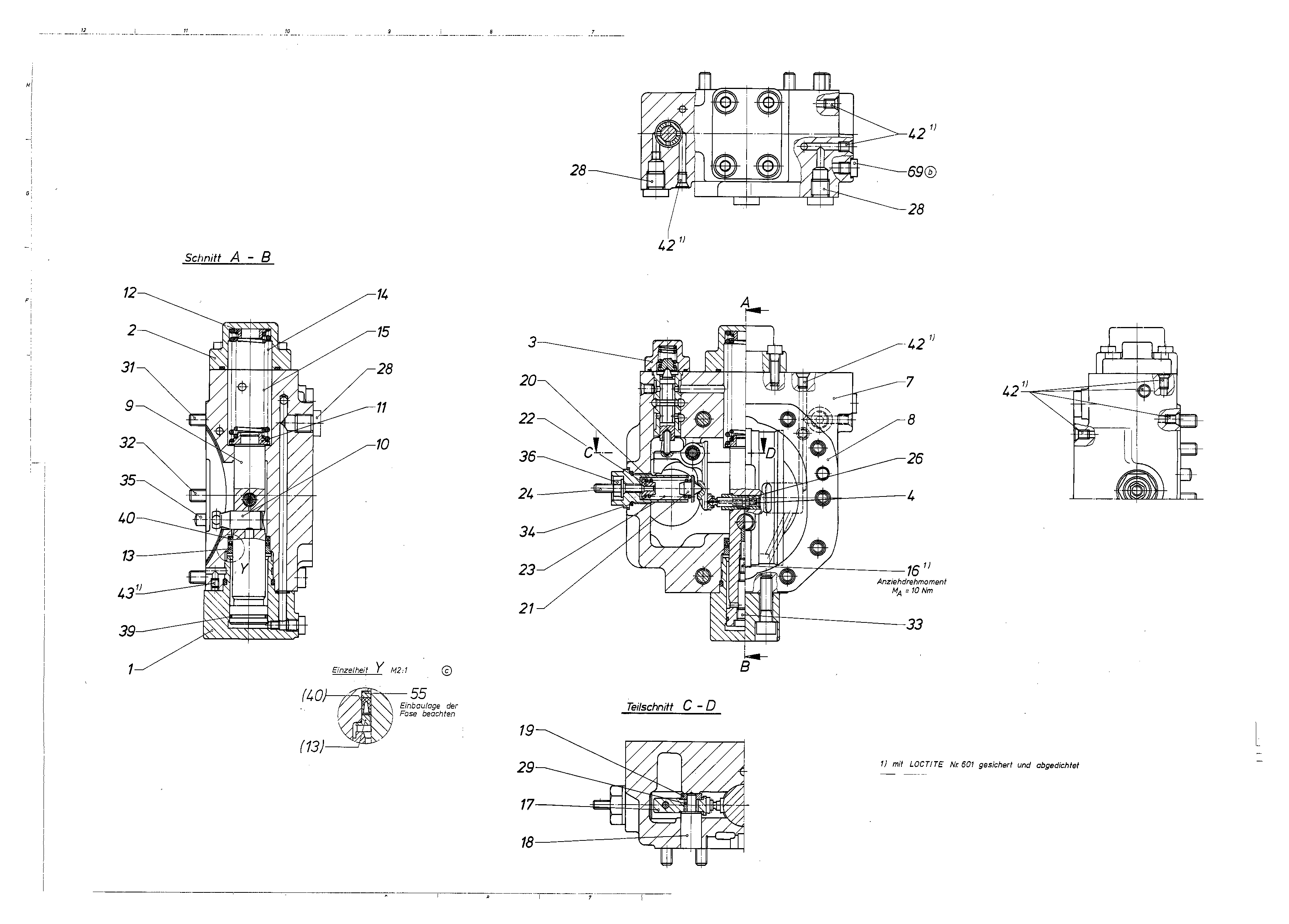

Assembly
CONTROLR909423119
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421342 | COVER Assembly parts list →L | 1 | ||
| R909421343 | COVER Assembly parts list →L | 1 | ||
| R909423118 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419520 | PISTON PAD | 1 | ||
| R909422476 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909425512 | POSITIONING PISTON | 1 | ||
| R909425514 | POSITIONING STUD | 1 | ||
| R909417663 | SPRING DISK | 1 | ||
| R909417662 | SPRING DISK | 1 | ||
| R909424385 | RING | 1 | ||
| R909417738 | COMPRESSION SPRING | 1 | ||
| R909417739 | COMPRESSION SPRING | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R909418298 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| R909418300 | BUSHING | 1 | ||
| R909417661 | SCREW PLUG | 1 | ||
| R909435525 | SPRING DISK | 1 | ||
| R909435524 | SPRING DISK | 1 | ||
| R909416687 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425552 | ADJUSTING BUSH | 1 | ||
| R909156650 | SCREW PLUGD | 3 | ||
| R909157017 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909087938 | O-RINGD | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909156545 | ROD SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083489 | SETSCREW | 1 | ||
| R909424386 | BACKUP RING | 1 | ||
| R909156863 | SCREW PLUGD | 1 |
