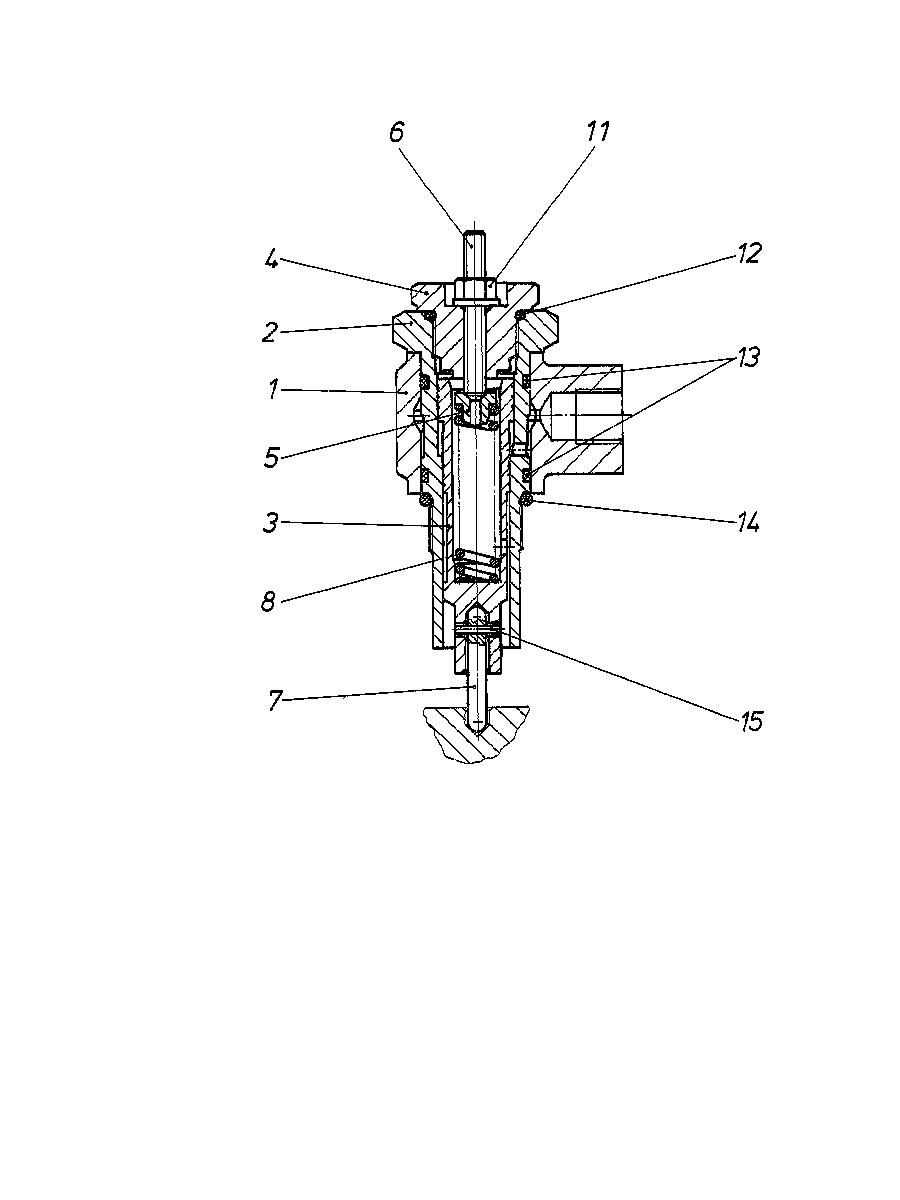

Assembly
ADJUSTING PARTR909423208
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419771 | CONNECTING PIECE | 1 | |
| 2 | R909425268 | THREADED PART | 1 | |
| 3 | R909425567 | PISTON | 1 | |
| 4 | R909422787 | SCREW PLUG | 1 | |
| 5 | R909422788 | SPRING DISK | 1 | |
| 6 | R909422789 | SETSCREW | 1 | |
| 7 | R909425564 | PIN | 1 | |
| 8 | R909425791 | COMPRESSION SPRING | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| 12 | R909083758 | O-RINGD | 1 | |
| R909083761 | O-RINGD | 2 | ||
| R909086517 | O-RINGD | 1 | ||
| R913017225 | SLOTTED SPRING PIN | 1 |
