Assembly

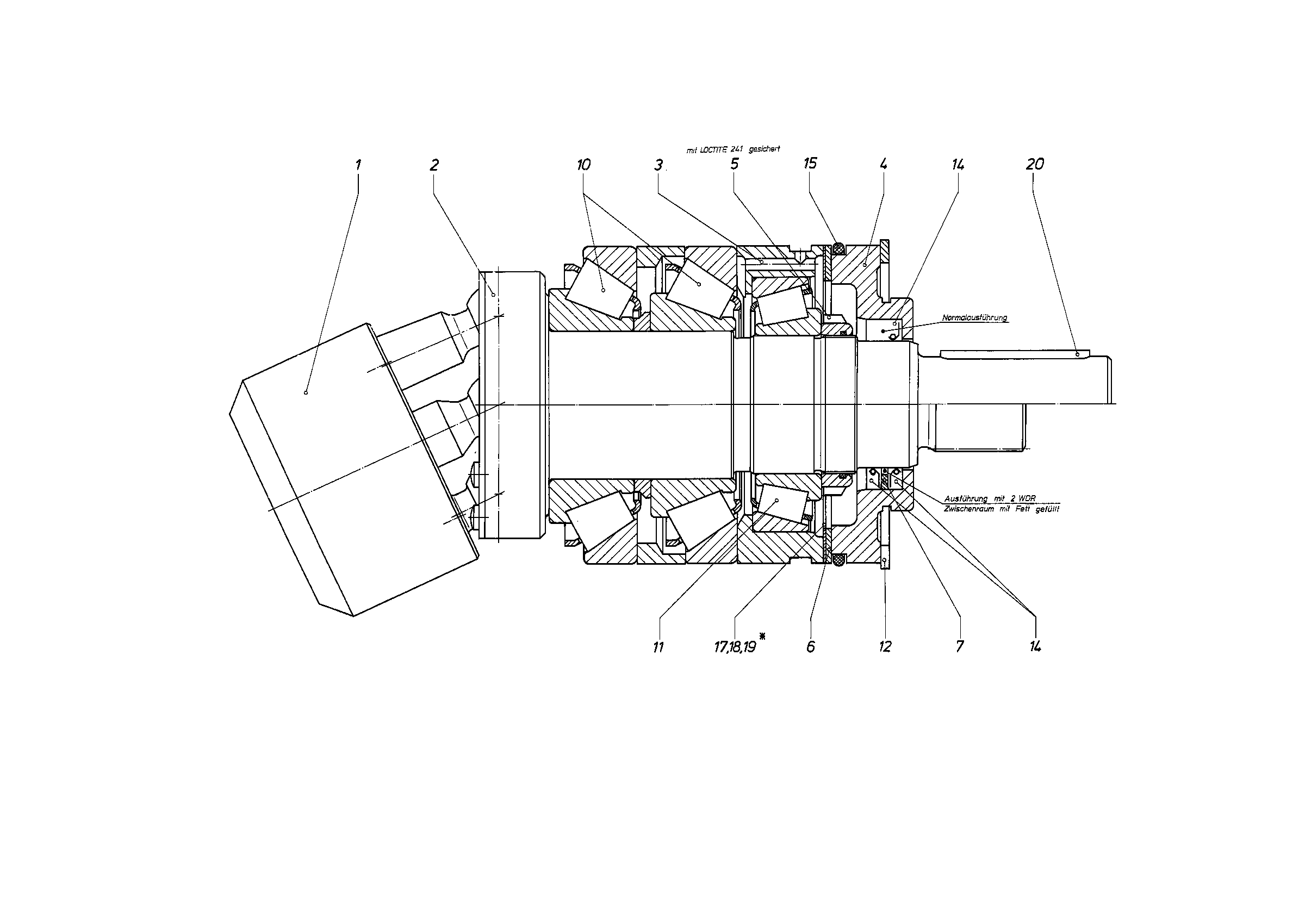

ROTARY GROUPR909423212
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909438818 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909425776 | DRIVE SHAFT | 1 | |
| 3 | R909411336 | BEARING RING | 1 | |
| 4 | R909411327 | LOCKING RINGD | 1 | |
| 5 | R913037933 | SLOTTED ROUND NUT | 1 | |
| 6 | R909156431 | SUPPORTING DISC | 1 | |
| 7 | R909087019 | SUPPORTING DISCD | 1 | |
| R909156629 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151116 | TAPERED-ROLLER BEARING | 1 | |
| R909085127 | RETAINING RING | 1 | ||
| 14 | R909830388 | SHAFT SEALING RINGD | 2 | |
| 15 | R909150083 | O-RINGD | 1 | |
| 17 | R909150087 | SHIM RING | 2 | |
| 18 | R909156388 | SHIM RING | 2 | |
| 19 | R909156389 | SHIM RING | 2 |
