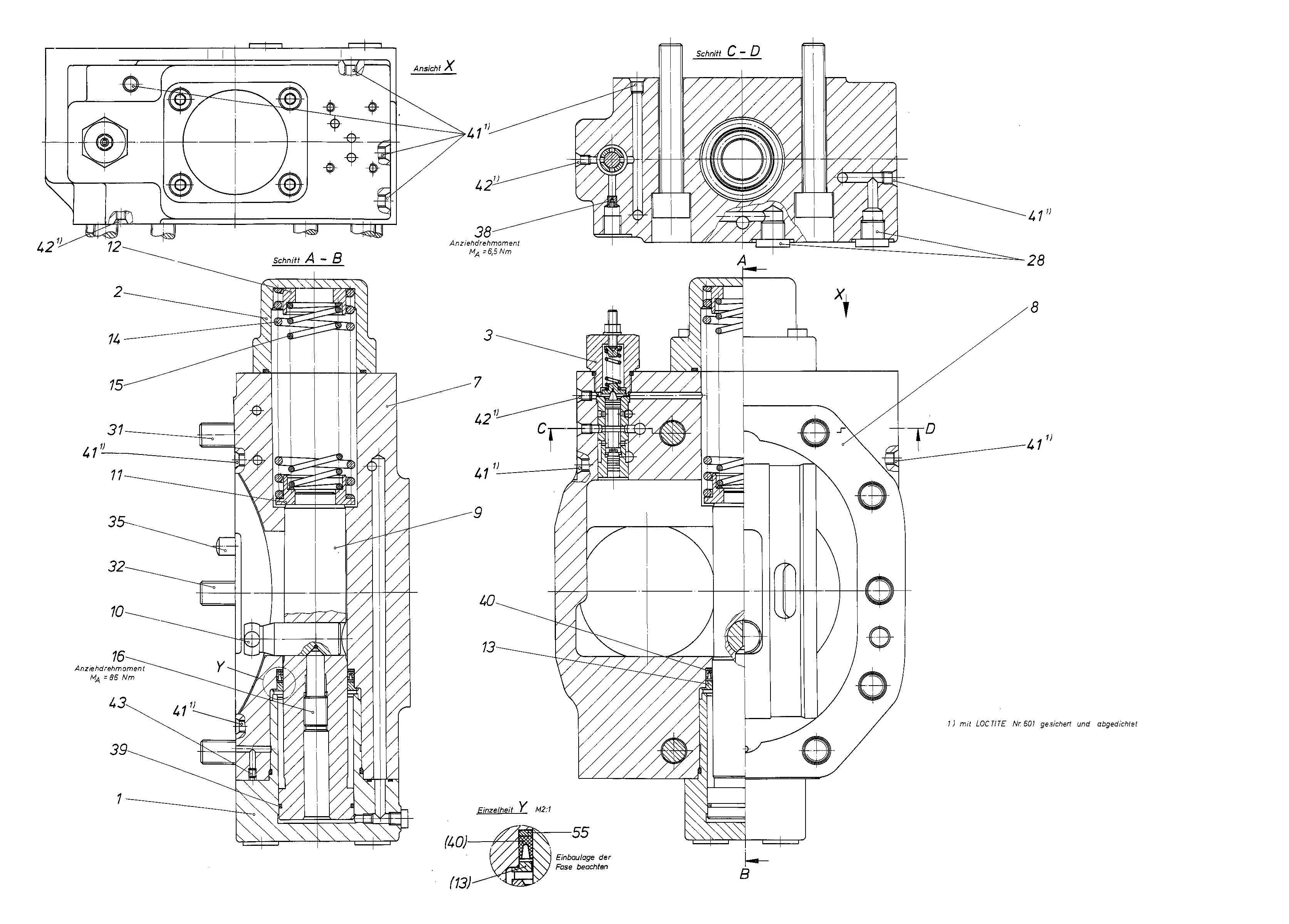

Assembly
CONTROLR909423220
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909418613 | COVER Assembly parts list →L | 1 | |
| 2 | R909428312 | COVER Assembly parts list →L | 1 | |
| 3 | R909413428 | CONTROL PART Assembly parts list →L | 1 | |
| 7 | R909425361 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| 8 | R902024645 | SEALD | 1 | |
| 9 | R909425453 | POSITIONING PISTON | 1 | |
| 10 | R909425450 | POSITIONING STUD | 1 | |
| 11 | R909418627 | SPRING DISK | 1 | |
| 12 | R909418628 | SPRING DISK | 1 | |
| 13 | R909424412 | RING | 1 | |
| 14 | R909418517 | COMPRESSION SPRING | 1 | |
| 15 | R909419649 | COMPRESSION SPRING | 1 | |
| 16 | R909408958 | SETSCREW | 1 | |
| R909153816 | SCREW PLUGD | 2 | ||
| R909083144 | SOCKET HEAD CAP SCREW | 7 | ||
| 32 | R909083131 | SOCKET HEAD CAP SCREW | 1 | |
| 35 | R913009666 | STRAIGHT PIN | 2 | |
| R909156493 | NOZZLE | 1 | ||
| 39 | R909156777 | R-RINGD | 1 | |
| R909157036 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 43 | R909083489 | SETSCREW | 1 | |
| R909424410 | BACKUP RING | 1 |
