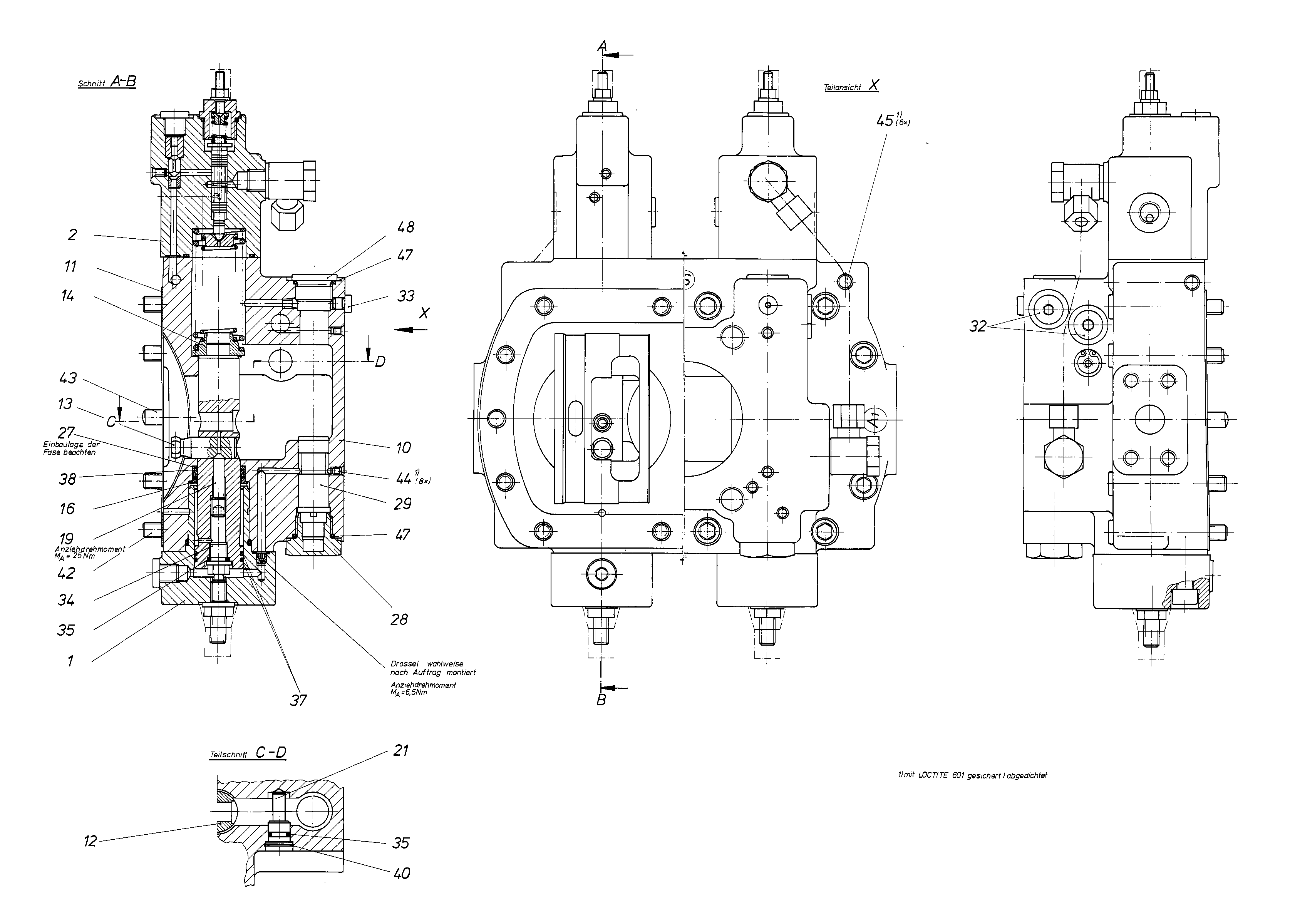

Assembly
CONTROLR909423315
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418657 | COVER Assembly parts list →L | 2 | ||
| R909427536 | CONTROL MODULE Assembly parts list →L | 2 | ||
| R909425452 | CONTROL HOUSING | 1 | ||
| R909650390 | SEALD | 1 | ||
| R909424627 | POSITIONING PISTON | 2 | ||
| R909425519 | POSITIONING STUD | 2 | ||
| R909416594 | SPRING DISK | 2 | ||
| R909422951 | RING | 2 | ||
| R909445015 | SETSCREW | 2 | ||
| R909418641 | BEARING BOLT | 2 | ||
| R909422952 | WASHER | 2 | ||
| R909412929 | SCREW PLUG | 2 | ||
| R909425449 | PLUG | 2 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909083236 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 4 | ||
| R902602841 | STEEL SEALING RINGD | 4 | ||
| R909156544 | ROD SEALD | 2 | ||
| R909083382 | RETAINING RING | 2 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 12 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909086517 | O-RINGD | 4 | ||
| R909083226 | SCREW PLUG | 2 |
