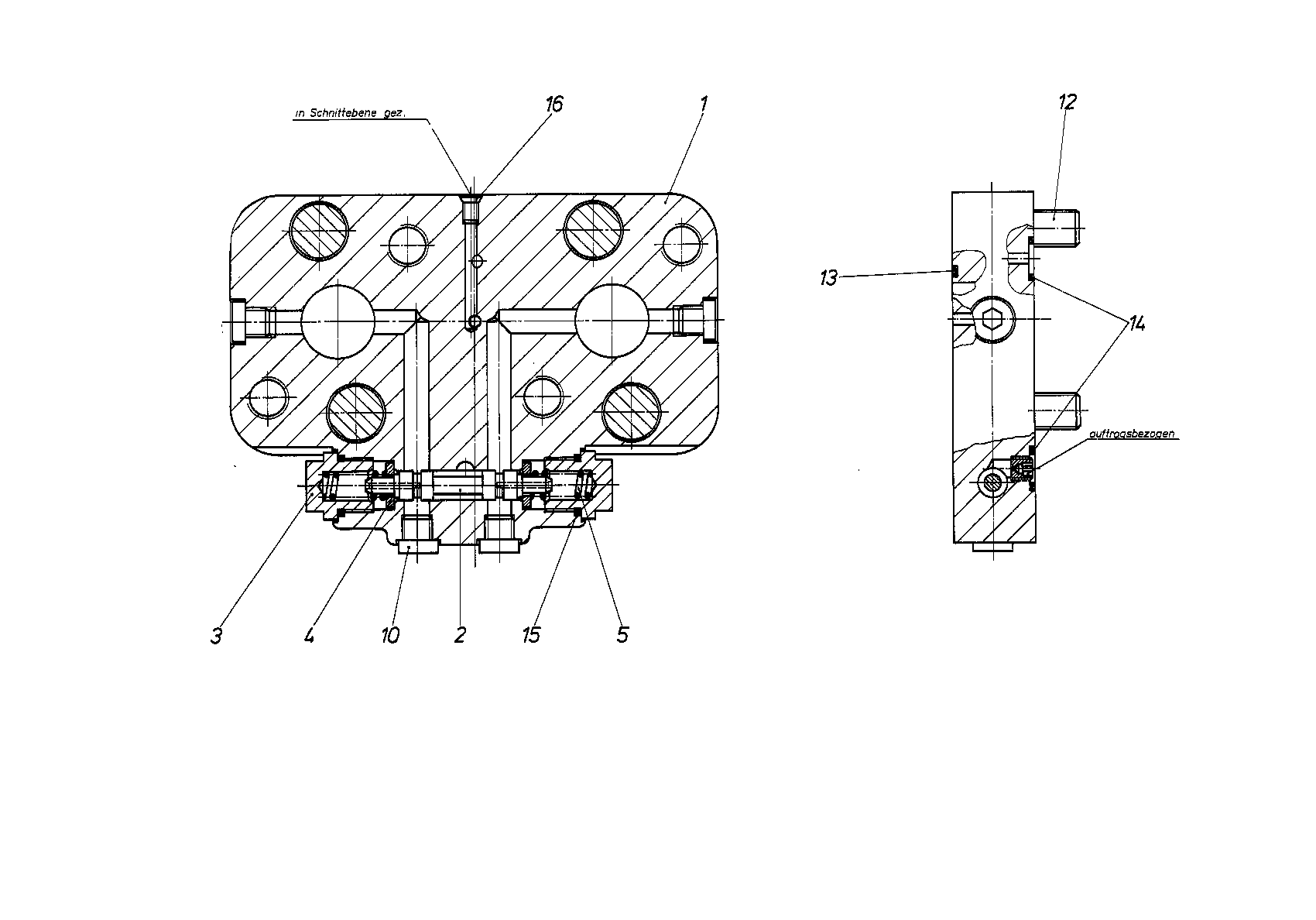

Assembly
FLUSHING VALVER909423374
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909425487 | FLUSHING VALVE PLATE | 1 | |
| 2 | R909432410 | FLUSHING PISTON | 1 | |
| 3 | R909417111 | SCREW PLUG | 2 | |
| 4 | R909417112 | WASHER | 2 | |
| 5 | R902011921 | COMPRESSION SPRING | 2 | |
| R909153364 | SCREW PLUGD | 4 | ||
| 12 | R909086574 | SOCKET HEAD CAP SCREW | 4 | |
| R909086731 | O-RINGD | 2 | ||
| 14 | R909083749 | O-RINGD | 2 | |
| 15 | R909086435 | O-RINGD | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
