Assembly

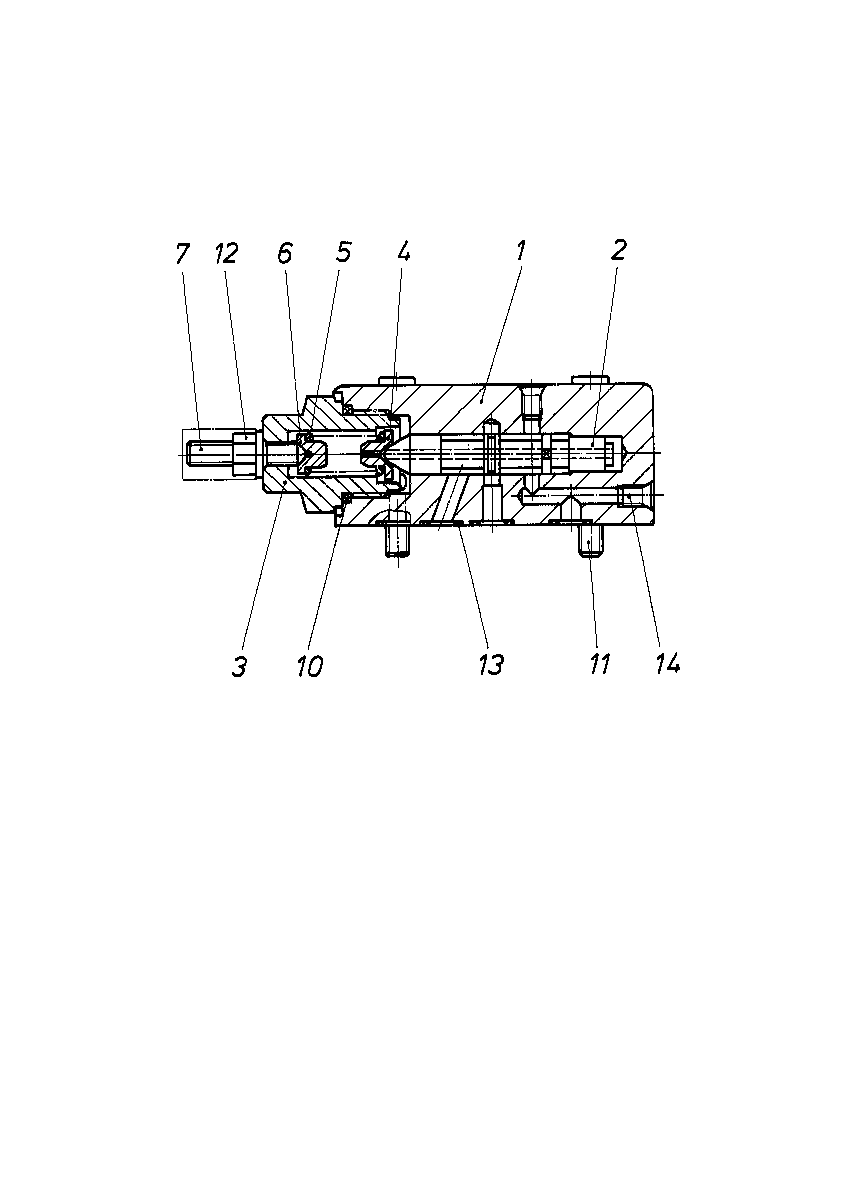

SEQUENCE VALVER909423686
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909425764 | HOUSING | 1 | ||
| 2 | R909425765 | CONTROL PISTON | 1 | |
| R909416959 | SCREW PLUG | 1 | ||
| 4 | R909418908 | SPRING DISK | 1 | |
| 5 | R909418909 | COMPRESSION SPRING | 1 | |
| 6 | R909416961 | SPRING DISK | 1 | |
| R909420991 | SETSCREW | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| 11 | R909083026 | SOCKET HEAD CAP SCREW | 4 | |
| 12 | R909152425 | SEALING NUTD | 1 | |
| R909086498 | O-RINGD | 5 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
