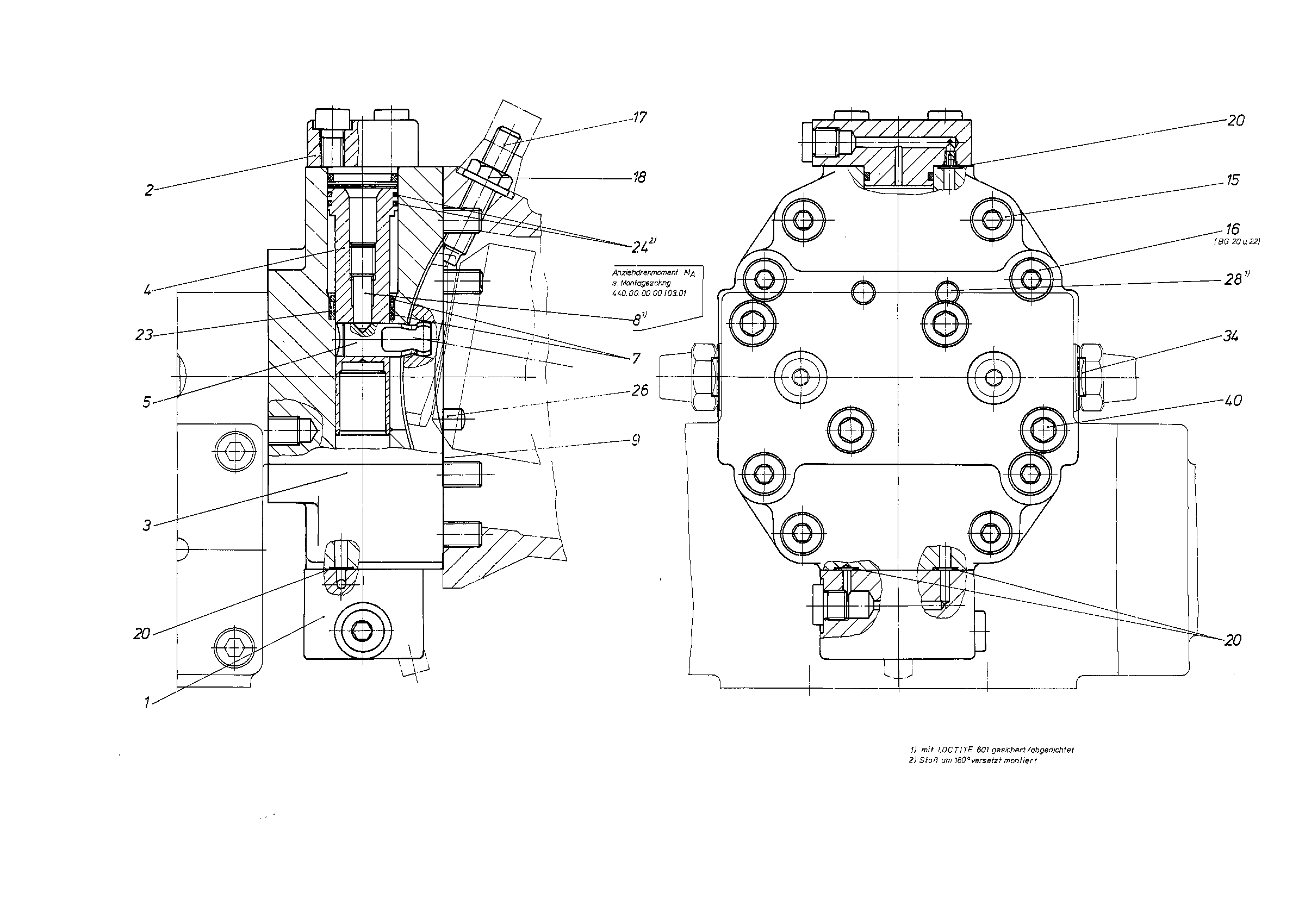

Assembly
CONTROLR909423785
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419899 | CONTROL PART Assembly parts list →L | 1 | |
| 2 | R909423159 | COVER Assembly parts list →L | 1 | |
| 3 | R909430082 | COVER PLATE | 1 | |
| R909422939 | POSITIONING PISTON | 1 | ||
| 5 | R909422940 | POSITIONING STUD | 1 | |
| R909422941 | BACKUP RING | 2 | ||
| 8 | R909445015 | SETSCREW | 1 | |
| 9 | R902011852 | SEALD | 1 | |
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909083071 | SOCKET HEAD CAP SCREW | 4 | |
| 17 | R909447003 | SETSCREW Assembly parts list →L | 1 | |
| 18 | R909152426 | SEALING NUTD | 1 | |
| 19 | R909084469 | O-RINGD | 2 | |
| R909086498 | O-RINGD | 3 | ||
| 23 | R909156715 | ROD SEALD | 1 | |
| 24 | R902602840 | STEEL SEALING RINGD | 2 | |
| 26 | R913009667 | STRAIGHT PIN | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R909153815 | SCREW PLUGD | 2 | |
| 40 | R909083099 | SOCKET HEAD CAP SCREW | 4 |
