Assembly

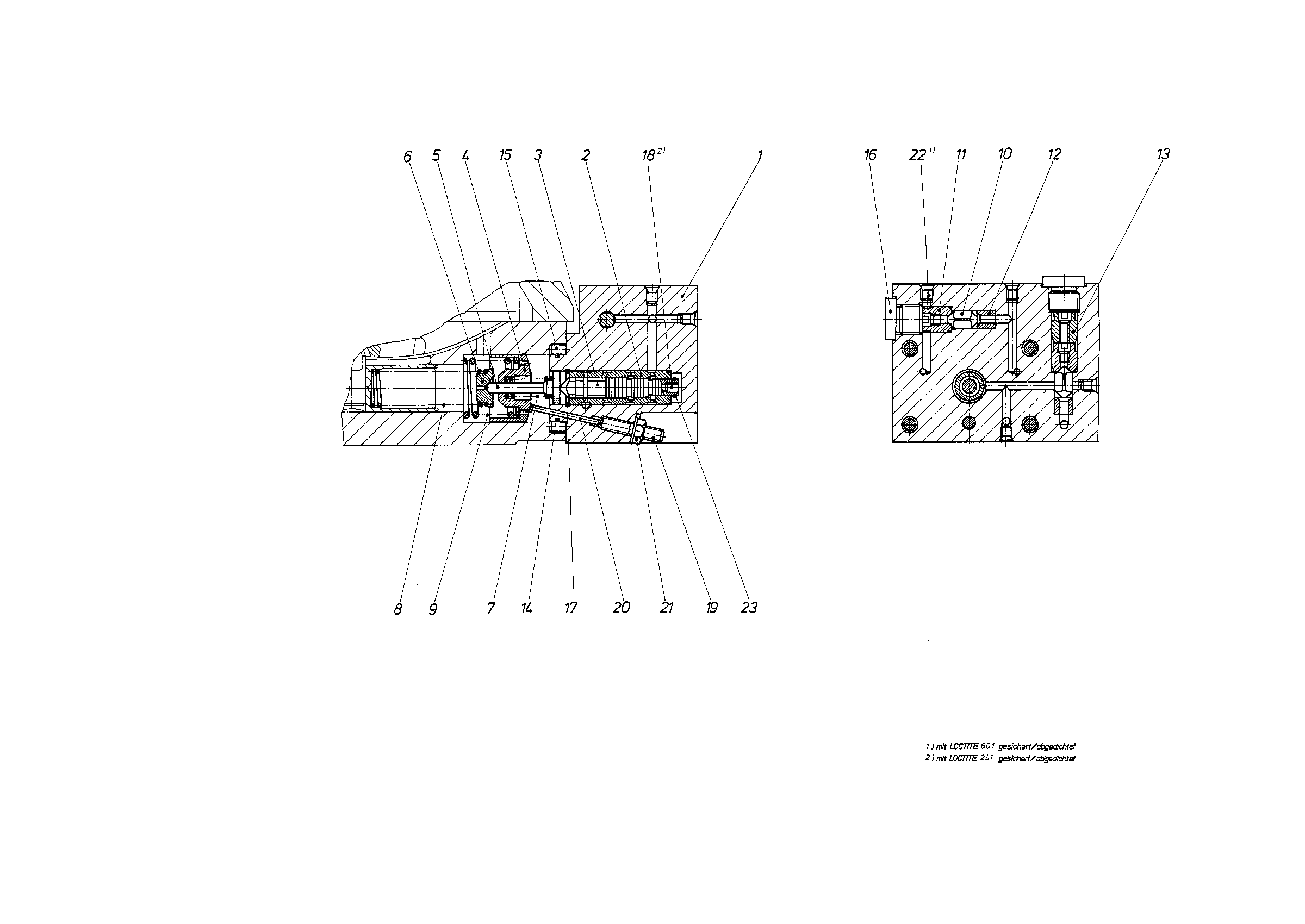

CONTROL PARTR909423929
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909426077 | CONTROL HOUSING | 1 | |
| 2 | R909426078 | CONTROL SLEEVE | 1 | |
| R909426079 | CONTROL PISTON | 1 | ||
| 4 | R909420169 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| R909414967 | SPRING DISK | 1 | ||
| R909412398 | COMPRESSION SPRING | 1 | ||
| 8 | R909419732 | COMPRESSION SPRING | 1 | |
| 9 | R909445260 | COMPRESSION SPRING | 1 | |
| R909422427 | VALVE CONE | 2 | ||
| 11 | R909426096 | BUSHING | 2 | |
| R909415815 | BUSHING | 2 | ||
| 13 | R909426097 | SPACER BUSHING | 1 | |
| 14 | R909087905 | O-RINGD | 1 | |
| 15 | R909083030 | SOCKET HEAD CAP SCREW | 4 | |
| R909151979 | SCREW PLUGD | 2 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| 18 | R909083488 | SETSCREW | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| R909084139 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| 23 | R909083344 | RETAINING RING | 1 |
