Assembly

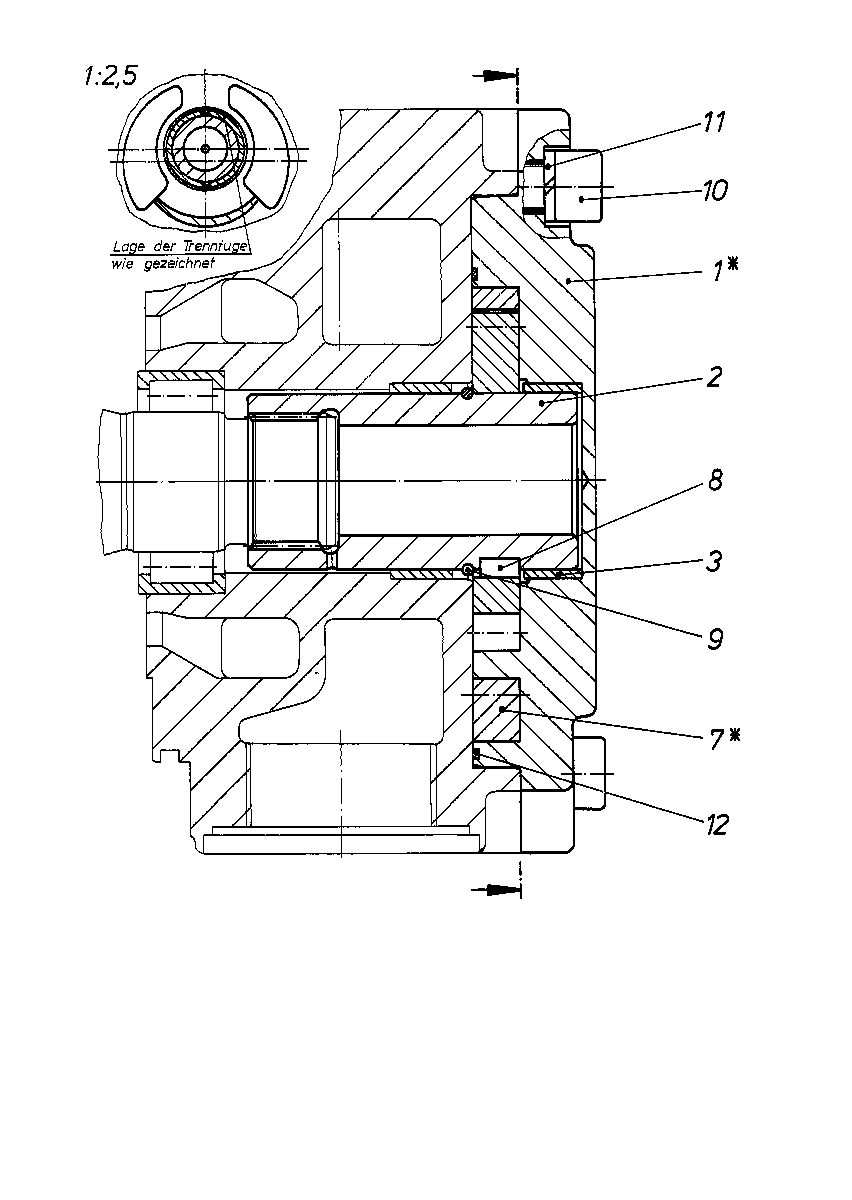

INTERNAL GEAR PUMPR909424109
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432562 | PUMP COVER | 1 | ||
| 2 | R909422916 | PLUG-IN SHAFT | 1 | |
| 3 | R909432660 | BUSHING | 1 | |
| 7 | R909157367 | WHEEL SET | 1 | |
| 8 | R902025644 | PARALLEL KEY | 1 | |
| 9 | R909084285 | SNAP RING | 1 | |
| R909083085 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083252 | SPRING LOCK WASHER | 4 | |
| 12 | R909830130 | O-RINGD | 1 |
