Assembly

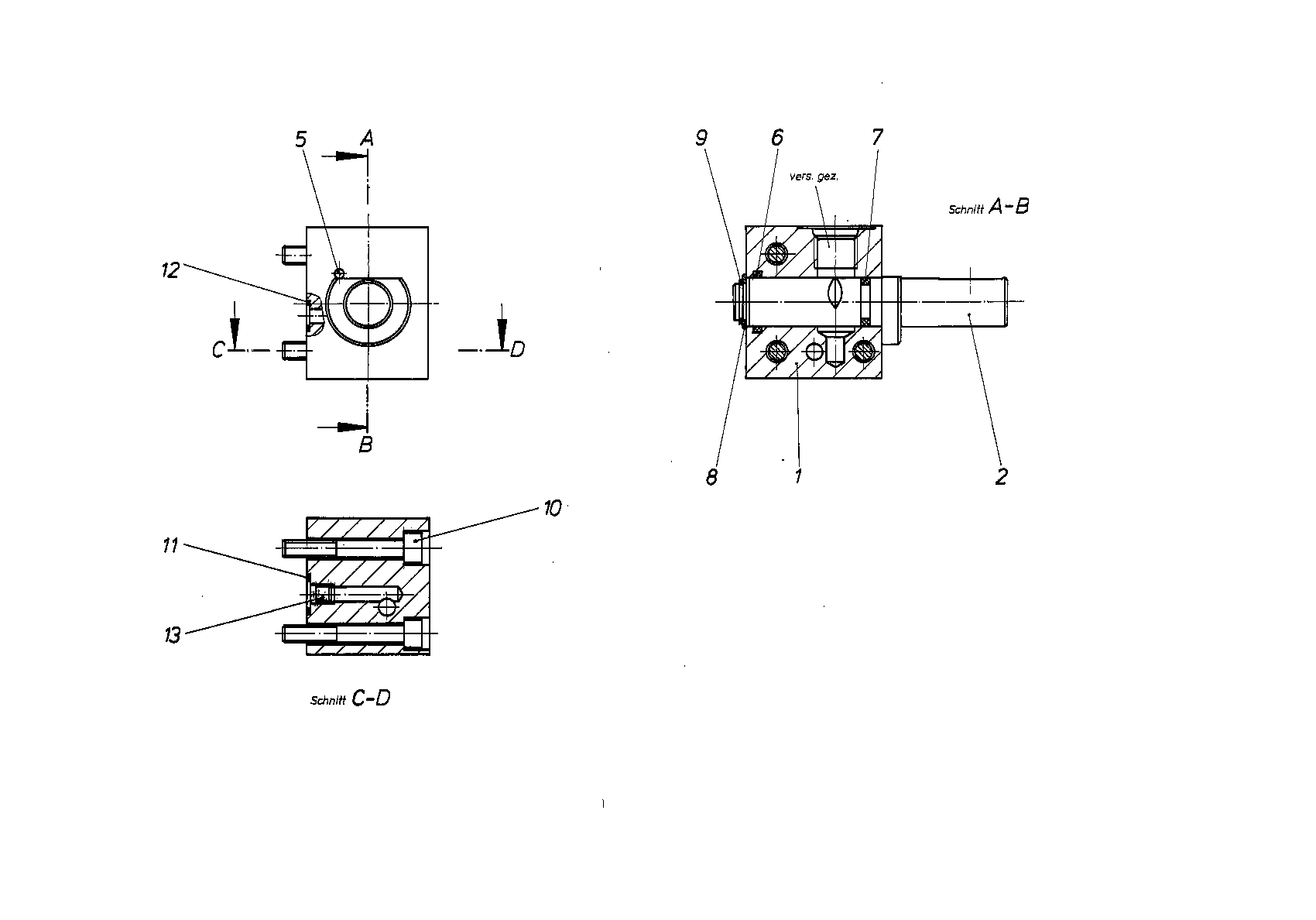

ROTARY ORIFICER909424242
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909424187 | HOUSING | 1 | |
| 2 | R909425424 | SHAFT | 1 | |
| 5 | R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | |
| 6 | R909086435 | O-RINGD | 1 | |
| R909086729 | O-RINGD | 1 | ||
| 8 | R909086180 | SHIM RING | 1 | |
| R909083346 | RETAINING RING | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 3 | ||
| 11 | R909085709 | O-RINGD | 1 | |
| R909086380 | O-RINGD | 1 | ||
| 13 | R909156494 | NOZZLE | 1 |
