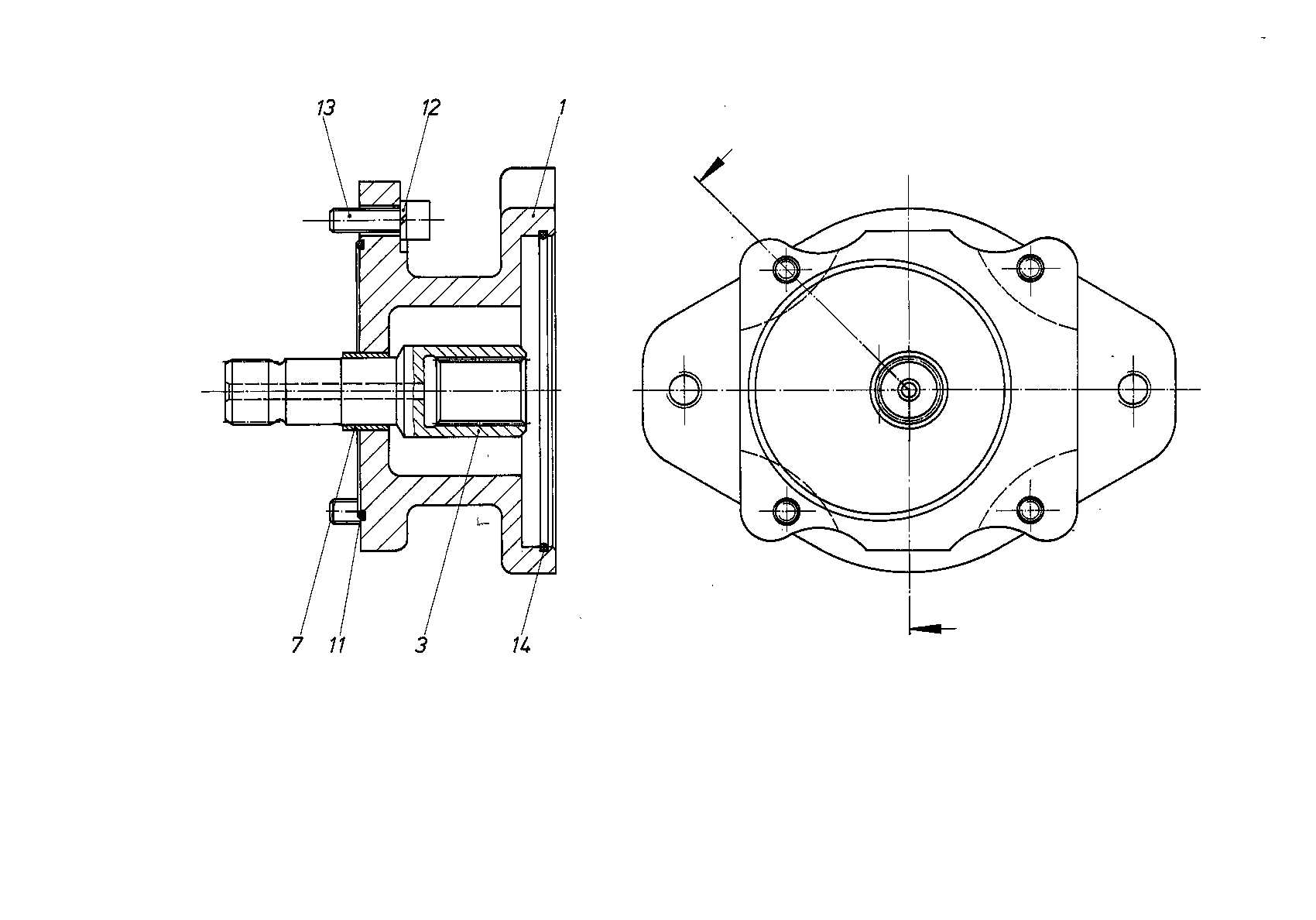

Assembly
BELL HOUSINGR909424322
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909405806 | FLANGE | 1 | |
| 3 | R909422690 | PLUG-IN SHAFT | 1 | |
| 7 | R909069490 | BUSHING | 1 | |
| 11 | R909086720 | O-RINGD | 1 | |
| 12 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909154589 | O-RINGD | 1 |
