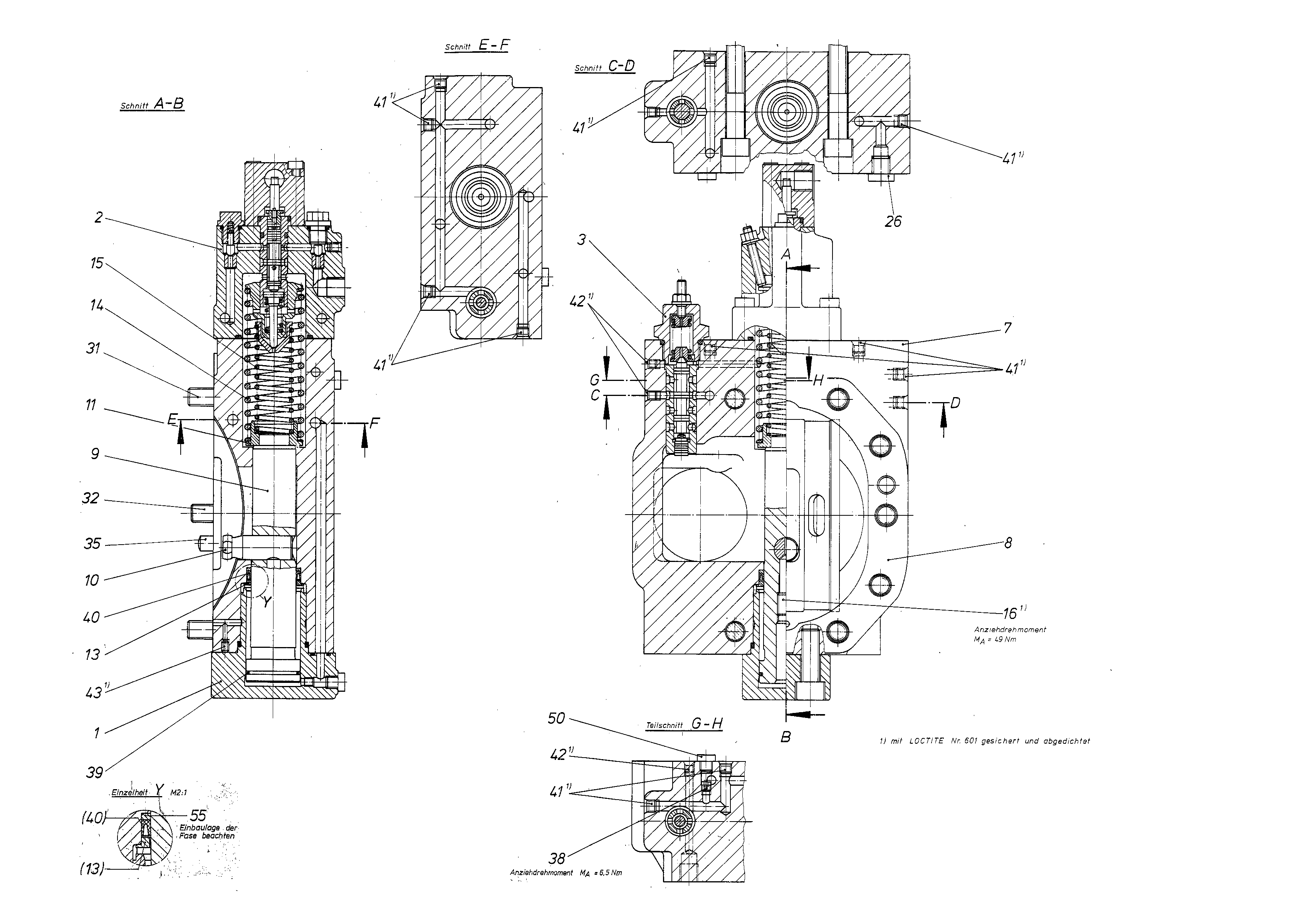

Assembly
CONTROLR909424378
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909412457 | COVER Assembly parts list →L | 1 | |
| R909424720 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909416172 | CONTROL PART Assembly parts list →L | 1 | ||
| 7 | R909421658 | COVER PLATE, CLOCKWISE ROTATION | 1 | |
| 8 | R902024643 | SEALD | 1 | |
| R909425509 | POSITIONING PISTON | 1 | ||
| R909425510 | POSITIONING STUD | 1 | ||
| 11 | R909417309 | SPRING DISK | 1 | |
| R909422953 | RING | 1 | ||
| R909412452 | COMPRESSION SPRING | 1 | ||
| R909417313 | COMPRESSION SPRING | 1 | ||
| 16 | R909409591 | SETSCREW | 1 | |
| R909153816 | SCREW PLUGD | 1 | ||
| 31 | R909083100 | SOCKET HEAD CAP SCREW | 7 | |
| 32 | R909083087 | SOCKET HEAD CAP SCREW | 1 | |
| 35 | R913009669 | STRAIGHT PIN | 2 | |
| 38 | R909156492 | NOZZLE | 1 | |
| R909156647 | R-RINGD | 1 | ||
| 40 | R909156541 | ROD SEALD | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 | ||
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 43 | R909083489 | SETSCREW | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| 55 | R909422954 | WASHER | 1 |
