Assembly

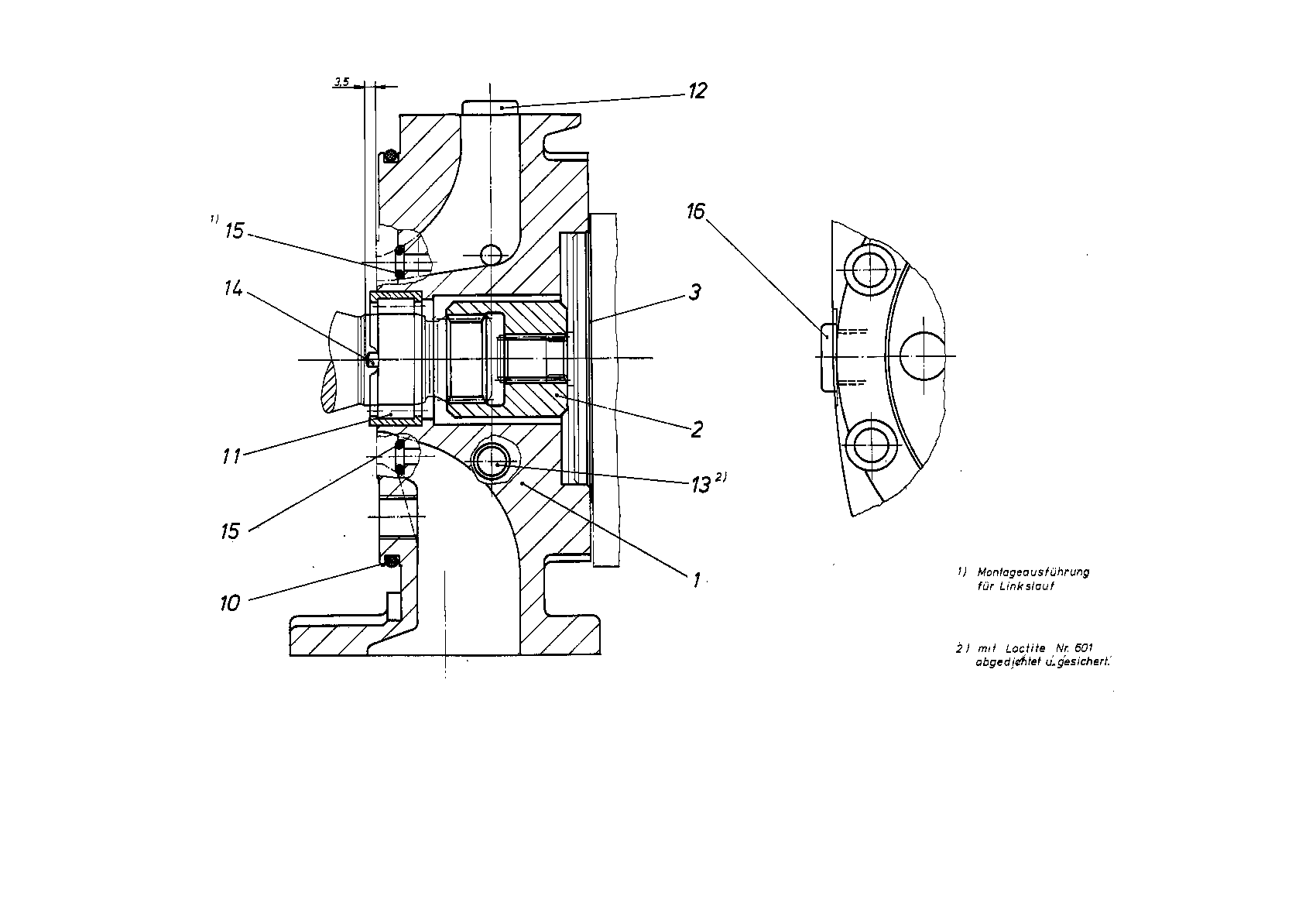

CONNECTION PLATER909424659
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909410797 | CONNECTION PLATE | 1 | |
| 2 | R909424644 | COUPLING HUB | 1 | |
| 3 | R909435535 | SEALD | 1 | |
| R909150205 | O-RINGD | 1 | ||
| 11 | R909156249 | CYL. ROLLER BEARING | 1 | |
| R909151692 | SCREW PLUGD | 1 | ||
| 13 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R913009664 | STRAIGHT PIN | 1 | ||
| R909156243 | O-RINGD | 1 | ||
| 16 | R909153815 | SCREW PLUGD | 1 |
