Assembly

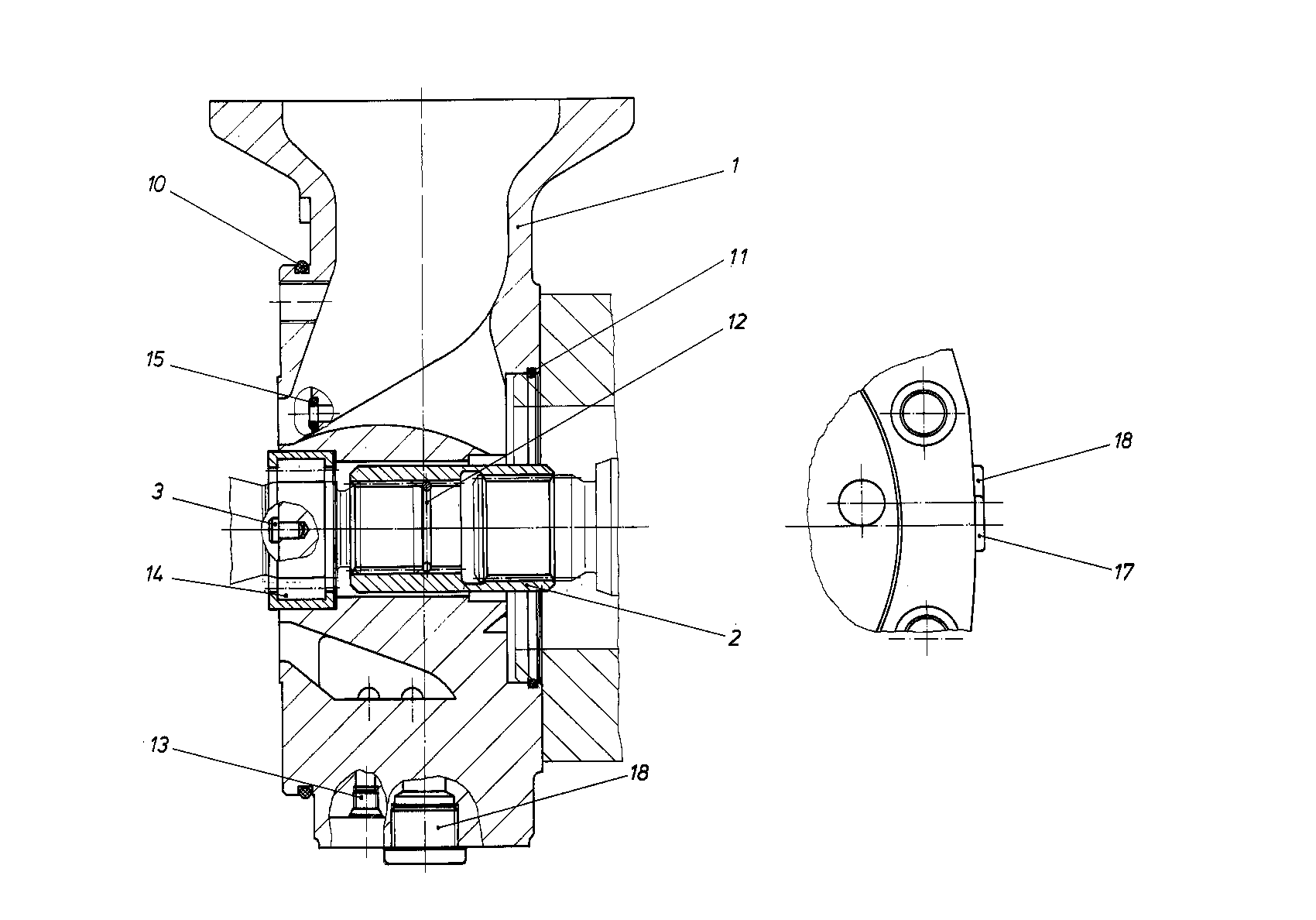

CONNECTION PLATER909424660
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909424147 | CONNECTION PLATE | 1 | ||
| R909425360 | COUPLING HUB | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909086482 | O-RINGD | 1 | ||
| R909154416 | O-RINGD | 1 | ||
| R909153971 | SNAP RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156113 | CYL. ROLLER BEARING | 1 | ||
| R909156243 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 2 |
