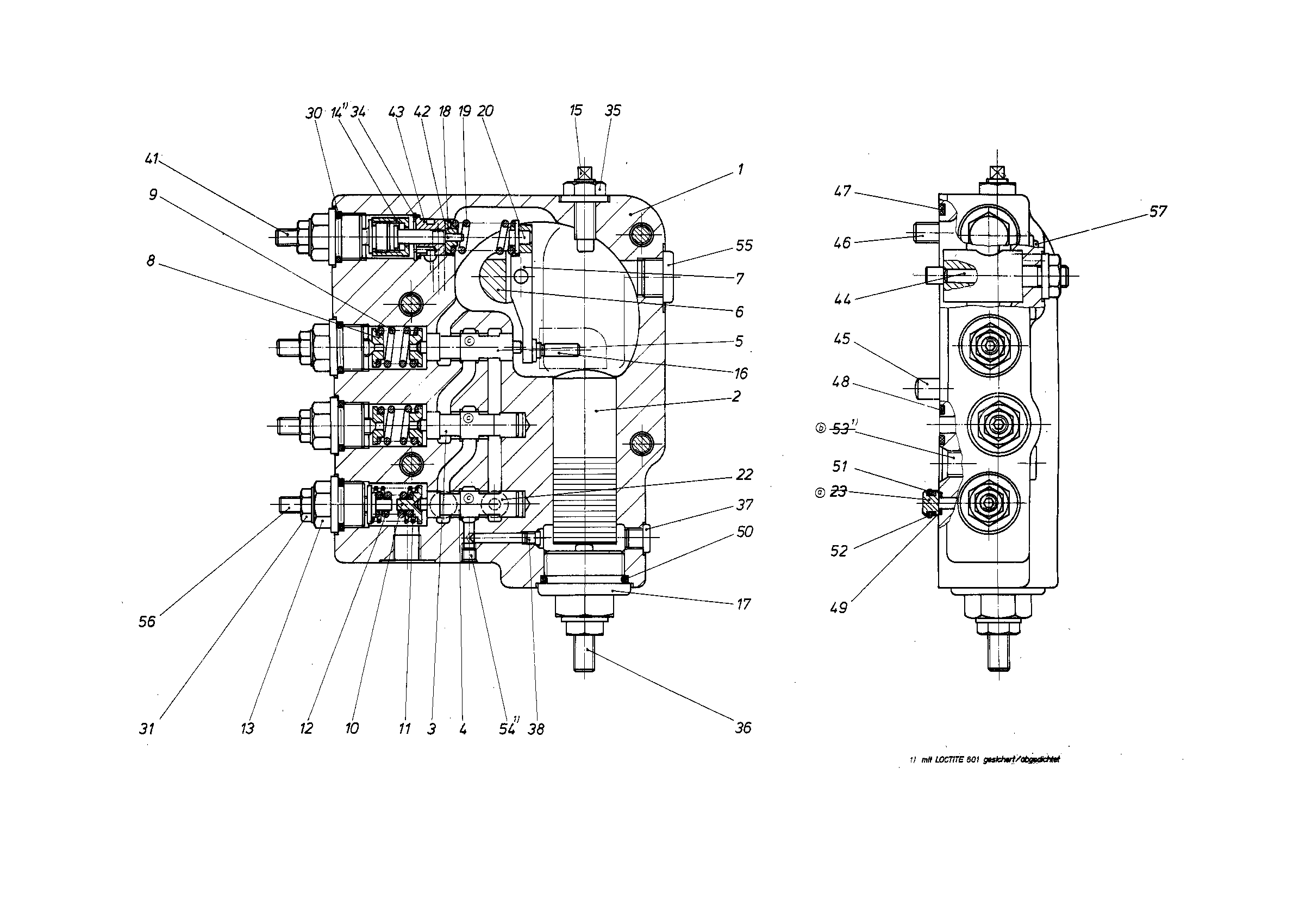

Assembly
REGULATORR909424693
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432392 | CONTROL HOUSING | 1 | ||
| R909420810 | PISTON | 1 | ||
| R909432386 | CONTROL PISTON | 1 | ||
| R909425851 | CONTROL PISTON | 1 | ||
| R909425849 | CONTROL PISTON | 1 | ||
| R909419264 | ECCENTRIC | 1 | ||
| R909425359 | LEVER | 1 | ||
| R909408853 | SPRING DISK | 4 | ||
| R909431610 | COMPRESSION SPRING | 2 | ||
| R909420187 | SPRING DISK | 2 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R909430753 | COMPRESSION SPRING | 1 | ||
| R909408860 | SCREW PLUG | 4 | ||
| R909419267 | STOP BUSHING | 1 | ||
| R909410086 | SETSCREW | 1 | ||
| R909423104 | PISTON PAD | 1 | ||
| R909420811 | SCREW PLUG | 1 | ||
| R909419271 | SPRING DISK | 1 | ||
| R909419275 | COMPRESSION SPRING | 1 | ||
| R909419272 | SPRING DISK | 1 | ||
| R909416219 | SEAL BUSHING | 2 | ||
| R909083758 | O-RINGD | 4 | ||
| R909152707 | SEALING NUTD | 4 | ||
| R909083384 | RETAINING RING | 1 | ||
| R909152426 | SEALING NUTD | 3 | ||
| R909154690 | SETSCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909419256 | ADJUSTING SCREW | 1 | ||
| R909424692 | BOLT | 1 | ||
| R909424691 | GUIDE BUSHING | 1 | ||
| R909157042 | STRAIGHT PIN | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909083067 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086949 | O-RINGD | 1 | ||
| R909086729 | O-RINGD | 1 | ||
| R909157512 | O-RINGD | 2 | ||
| R909086730 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909087062 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153555 | SETSCREW | 3 | ||
| R909151692 | SCREW PLUGD | 1 |
