Assembly

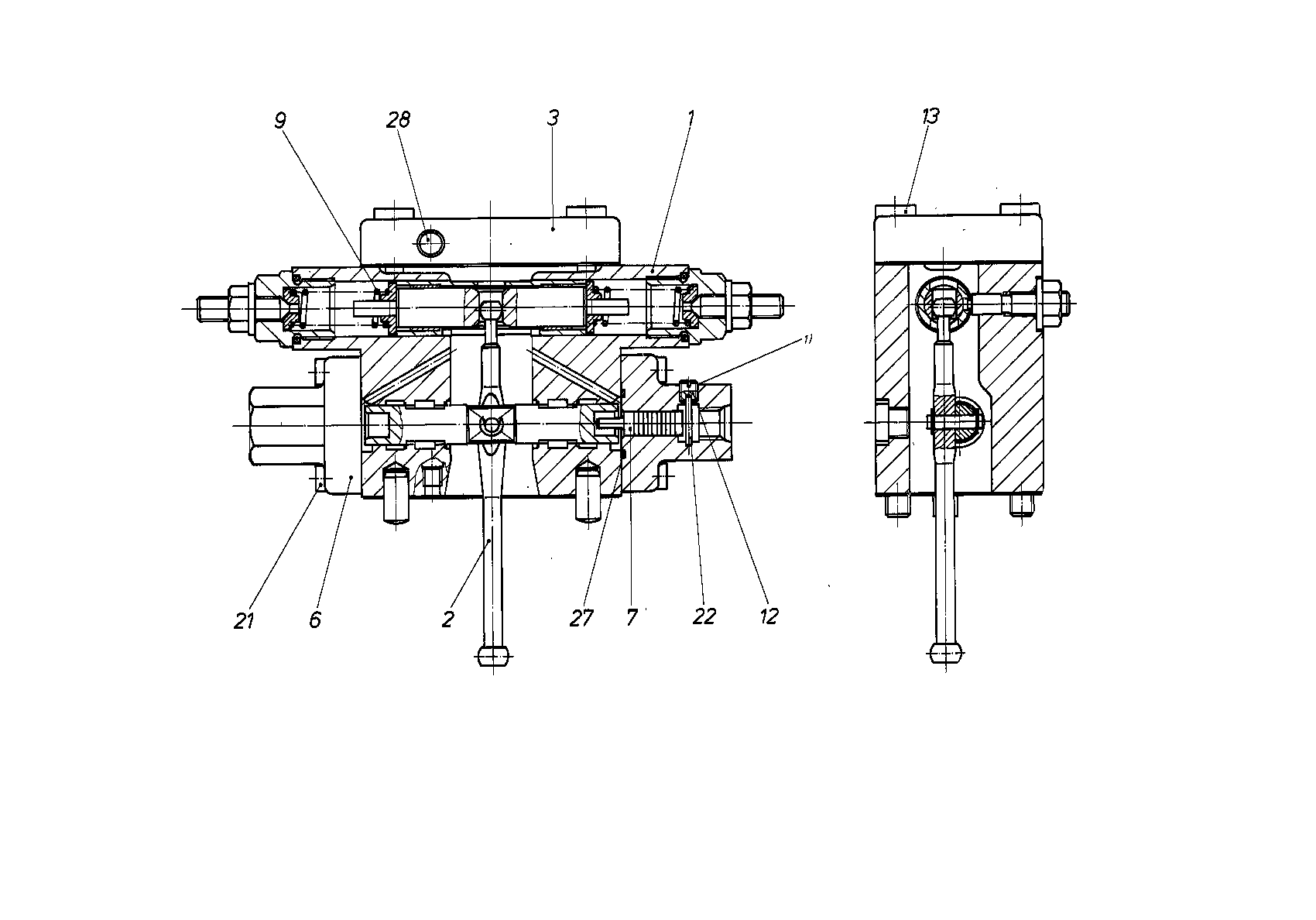

CONTROL MODULER909424848
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909424472 | CONTROL MODULE Assembly parts list →L | 1 | ||
| 2 | R909424825 | FEEDBACK LEVER | 1 | |
| 3 | R909424833 | COVER | 1 | |
| 6 | R902007557 | HOUSING | 2 | |
| 7 | R909424997 | PISTON | 2 | |
| 9 | R909425598 | COMPRESSION SPRING | 2 | |
| R902016196 | SETSCREW | 2 | ||
| 13 | R909156039 | SOCKET HEAD CAP SCREW | 4 | |
| 21 | R909083010 | SOCKET HEAD CAP SCREW | 8 | |
| R909157016 | STRAIGHT PIN | 2 | ||
| 27 | R909083737 | O-RINGD | 2 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
