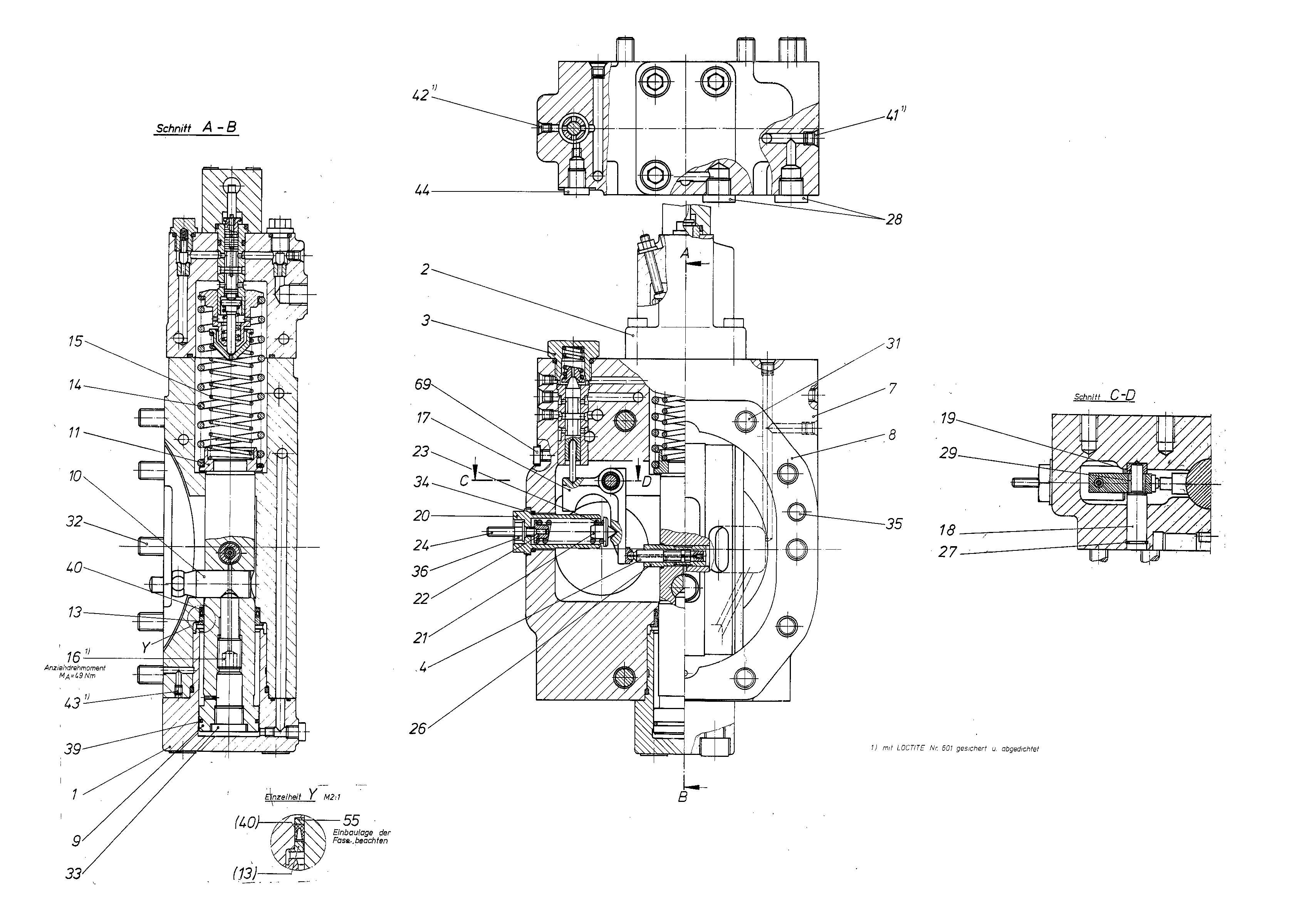

Assembly
CONTROLR909424906
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909413253 | COVER Assembly parts list →L | 1 | ||
| R909424722 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909415511 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419352 | PISTON PAD | 1 | ||
| R909422675 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425502 | POSITIONING PISTON | 1 | ||
| R909425503 | POSITIONING STUD | 1 | ||
| R909413241 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909413494 | COMPRESSION SPRING | 1 | ||
| R909418116 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909412931 | SCREW PLUG | 1 | ||
| R909435516 | SPRING DISK | 1 | ||
| R909435517 | SPRING DISK | 1 | ||
| R909413035 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425555 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909424361 | BACKUP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
