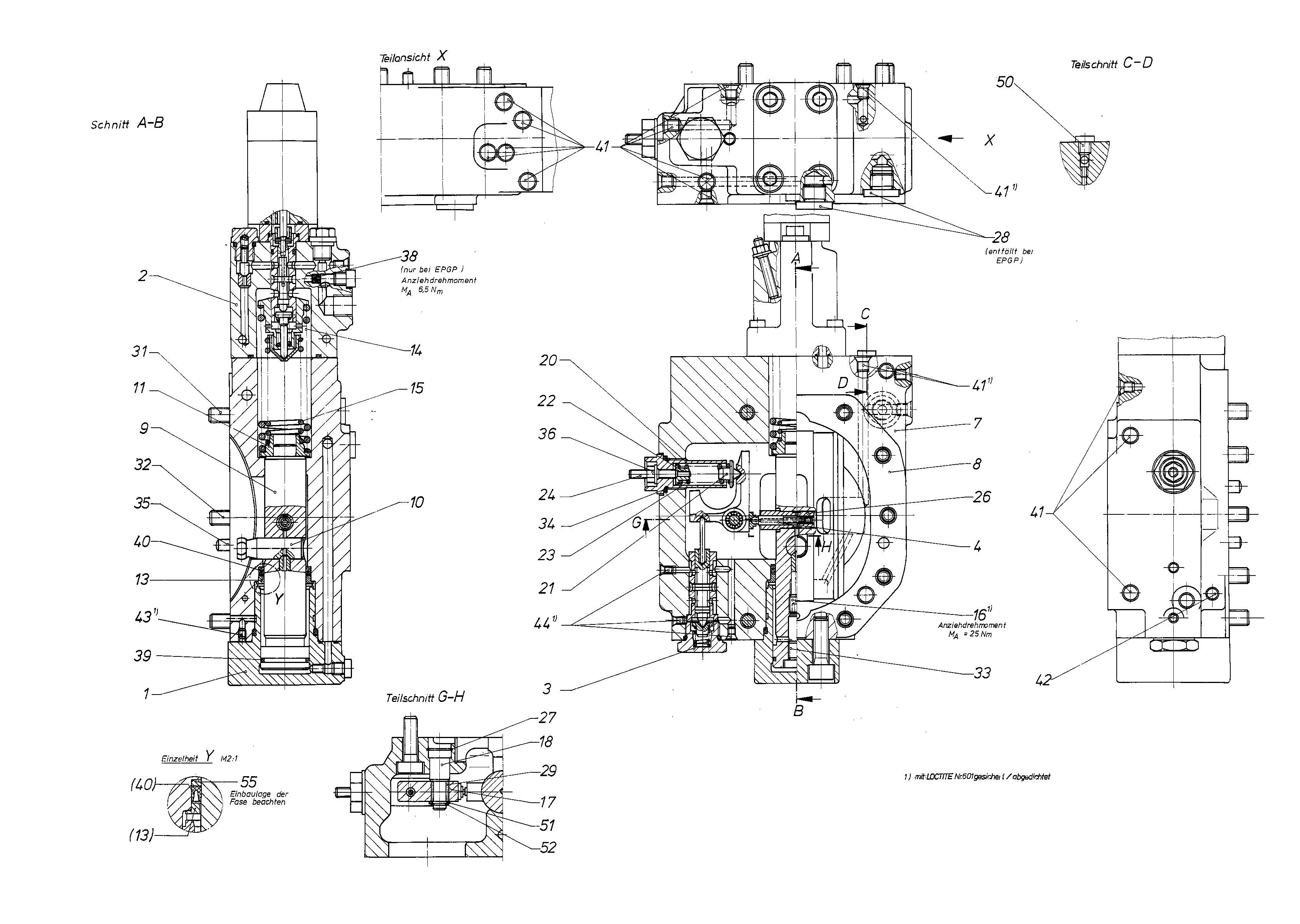

Assembly
CONTROLR909425155
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414177 | COVER Assembly parts list →L | 1 | ||
| R909424715 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909422162 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419390 | PISTON PAD | 1 | ||
| R909422163 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909425516 | POSITIONING PISTON | 1 | ||
| R909425518 | POSITIONING STUD | 1 | ||
| R909416594 | SPRING DISK | 1 | ||
| R909422951 | RING | 1 | ||
| R909416021 | COMPRESSION SPRING | 1 | ||
| R909432687 | COMPRESSION SPRING | 1 | ||
| R909416798 | SETSCREW | 1 | ||
| R909416597 | LEVER | 1 | ||
| R909422164 | BEARING BOLT | 1 | ||
| R909416684 | SCREW PLUG | 1 | ||
| R909435525 | SPRING DISK | 1 | ||
| R909435524 | SPRING DISK | 1 | ||
| R909416687 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425553 | ADJUSTING BUSH | 1 | ||
| R909157317 | SNAP RING | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R902602841 | STEEL SEALING RINGD | 1 | ||
| R909156544 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909157078 | SHIM RING | 1 | ||
| R909083343 | RETAINING RING | 1 | ||
| R909422952 | WASHER | 1 |
