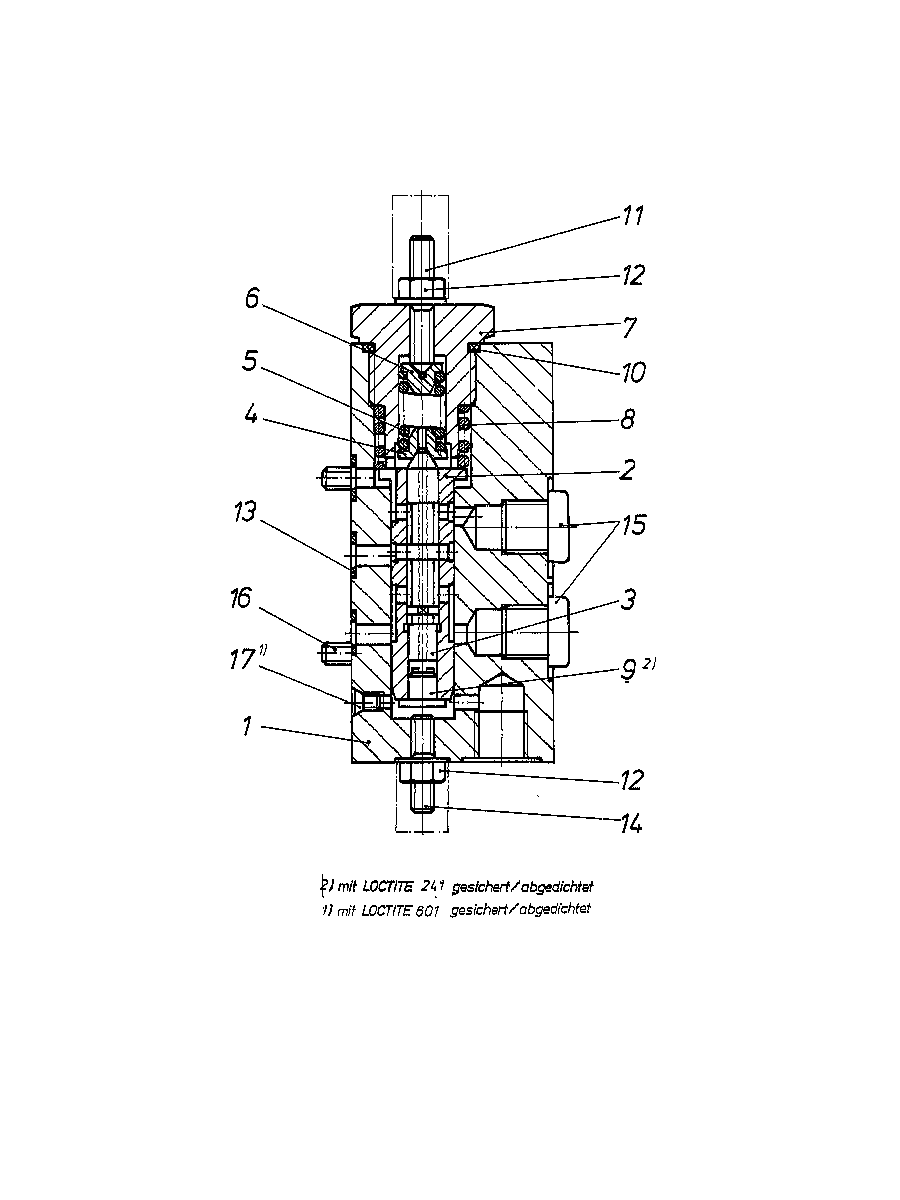

Assembly
SEQUENCE VALVER909425198
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909425215 | HOUSING | 1 | ||
| R909425216 | CONTROL SLEEVE | 1 | ||
| R909425217 | CONTROL PISTON | 1 | ||
| R909418908 | SPRING DISK | 1 | ||
| R909418909 | COMPRESSION SPRING | 1 | ||
| R909416961 | SPRING DISK | 1 | ||
| R909425218 | SCREW PLUG | 1 | ||
| R909415781 | COMPRESSION SPRING | 1 | ||
| R909425225 | BOLT | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909425219 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| R909151659 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
