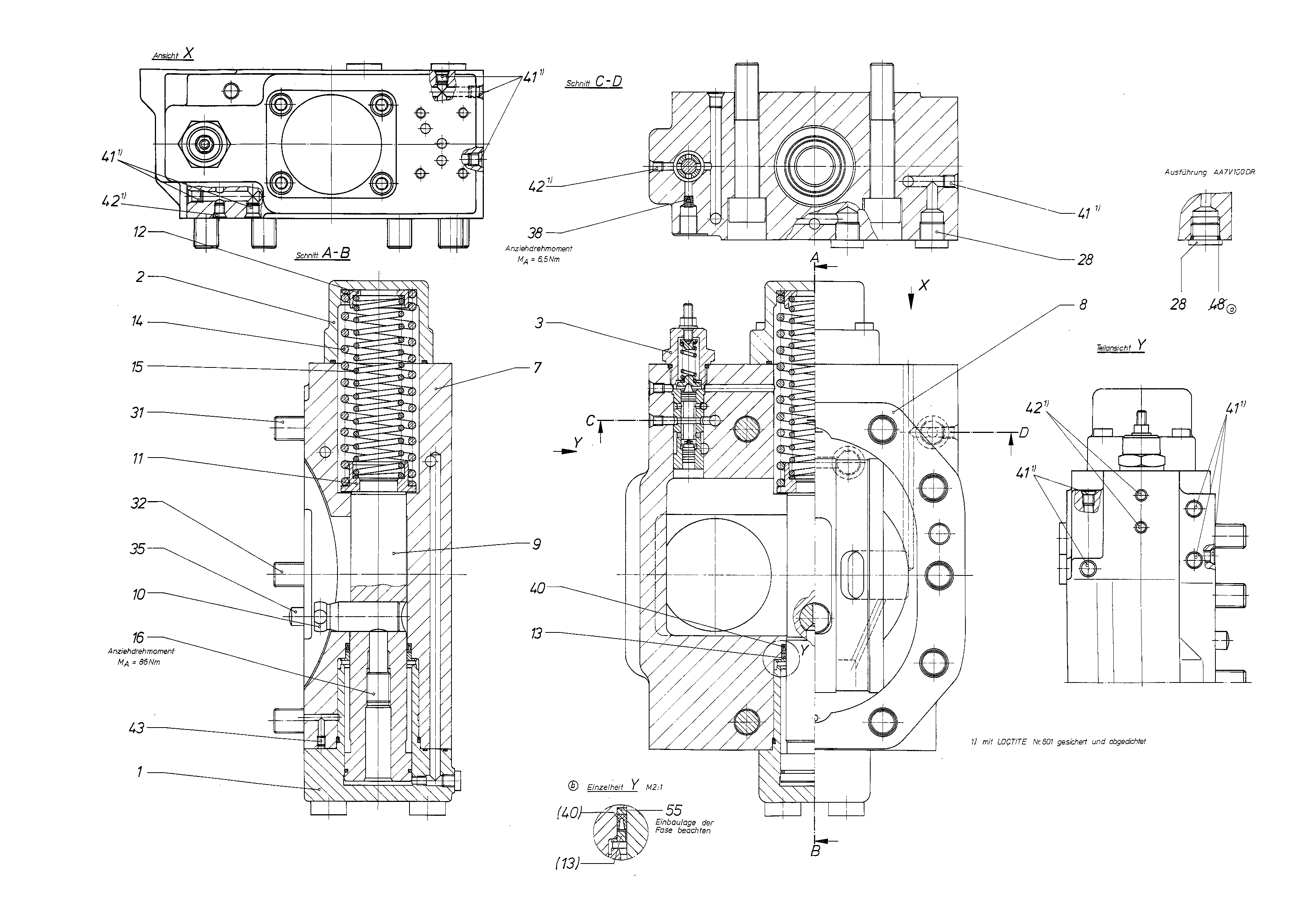

Assembly
CONTROLR909427107
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909414915 | COVER Assembly parts list →L | 1 | |
| 2 | R909428311 | COVER Assembly parts list →L | 1 | |
| 3 | R909413428 | CONTROL PART Assembly parts list →L | 1 | |
| 7 | R909426336 | COVER PLATE, COUNTER CLOCKWISE | 1 | |
| 8 | R902024644 | SEALD | 1 | |
| 9 | R909425472 | POSITIONING PISTON | 1 | |
| 10 | R909425458 | POSITIONING STUD | 1 | |
| 11 | R909414864 | SPRING DISK | 1 | |
| R909414865 | SPRING DISK | 1 | ||
| 13 | R909424406 | RING | 1 | |
| R909414907 | COMPRESSION SPRING | 1 | ||
| 15 | R909414908 | COMPRESSION SPRING | 1 | |
| R909408958 | SETSCREW | 1 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| 35 | R913009666 | STRAIGHT PIN | 2 | |
| 38 | R909156493 | NOZZLE | 1 | |
| 39 | R909156706 | R-RINGD | 1 | |
| 40 | R909156707 | ROD SEALD | 1 | |
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 6 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909083489 | SETSCREW | 1 | ||
| R909424407 | BACKUP RING | 1 |
