Assembly

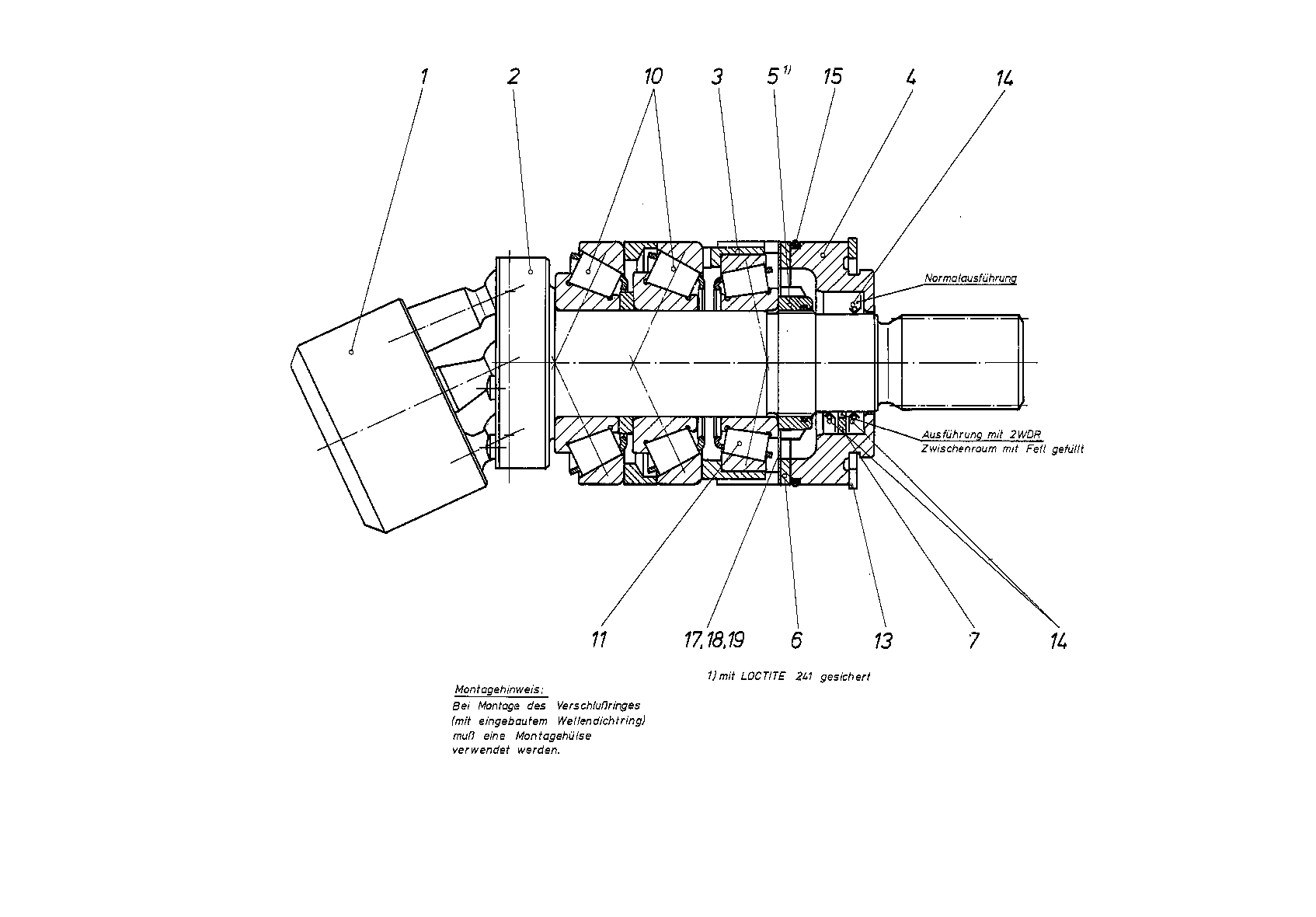

ROTARY GROUPR909427120
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909409907 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909425889 | DRIVE SHAFT | 1 | ||
| R909412088 | BEARING RING | 1 | ||
| R909412089 | LOCKING RINGD | 1 | ||
| 5 | R913037928 | SLOTTED ROUND NUT | 1 | |
| R909087019 | SUPPORTING DISCD | 1 | ||
| R909156197 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151098 | TAPERED-ROLLER BEARING | 1 | |
| R909083415 | RETAINING RING | 1 | ||
| 14 | R909152835 | SHAFT SEALING RINGD | 1 | |
| R909085567 | O-RINGD | 1 | ||
| R909084586 | SHIM RING | 2 | ||
| R909154802 | SHIM RING | 2 | ||
| R909085952 | SHIM RING | 2 |
