Assembly

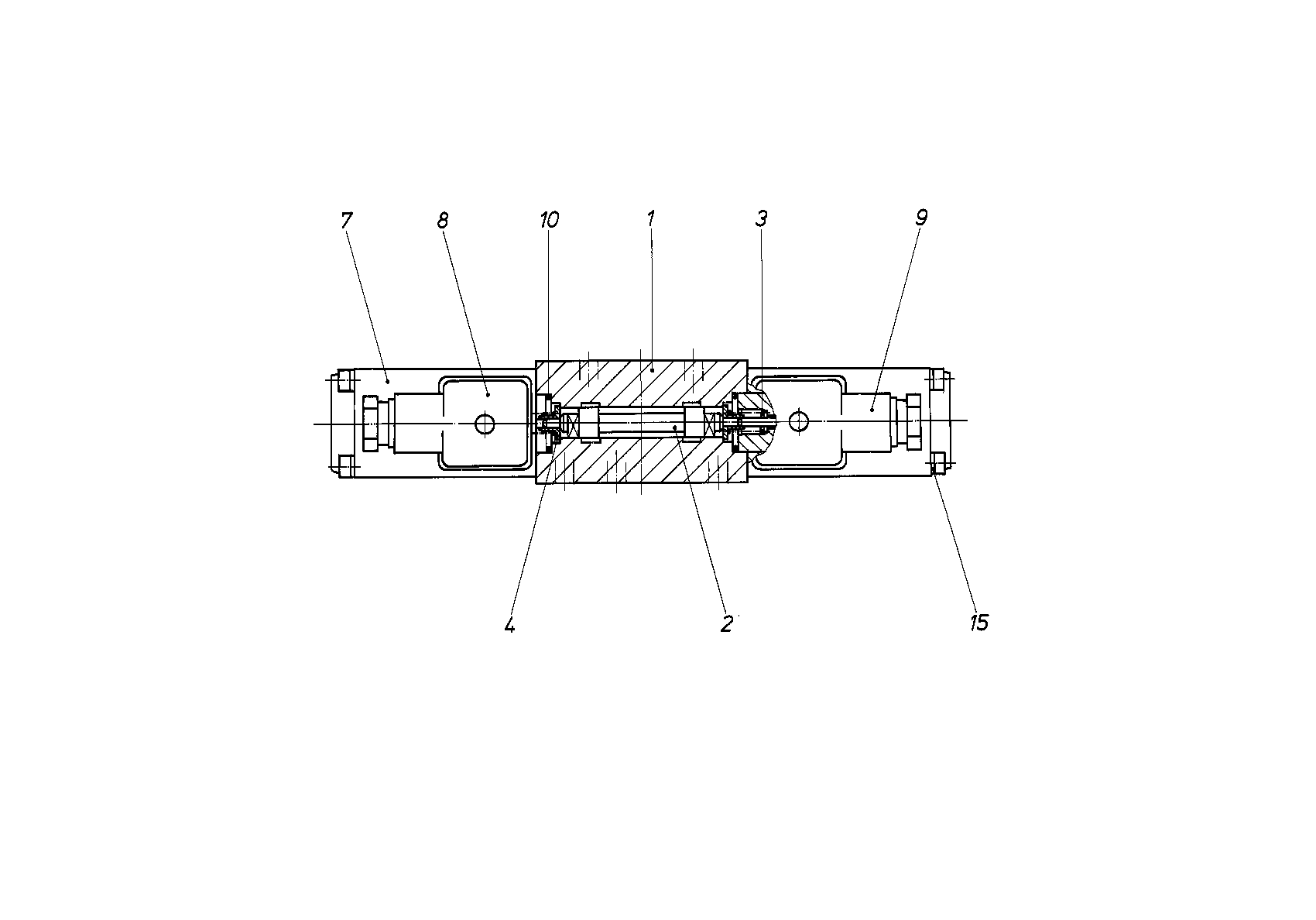

DIRECTIONAL-CONTROL VALVER909427154
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416344 | VALVE HOUSING | 1 | |
| 2 | R909416376 | CONTROL PISTON | 1 | |
| 3 | R909071362 | COMPRESSION SPRING | 2 | |
| 4 | R909069544 | SPRING DISK | 2 | |
| 7 | R909428266 | SWITCHING SOLENOID Assembly parts list →L | 2 | |
| 8 | R913022796 | PLUG-IN CONNECTOR | 1 | |
| 9 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| R909083734 | O-RINGD | 2 | ||
| 15 | 2916010109 | WASHER | 8 |
