Assembly

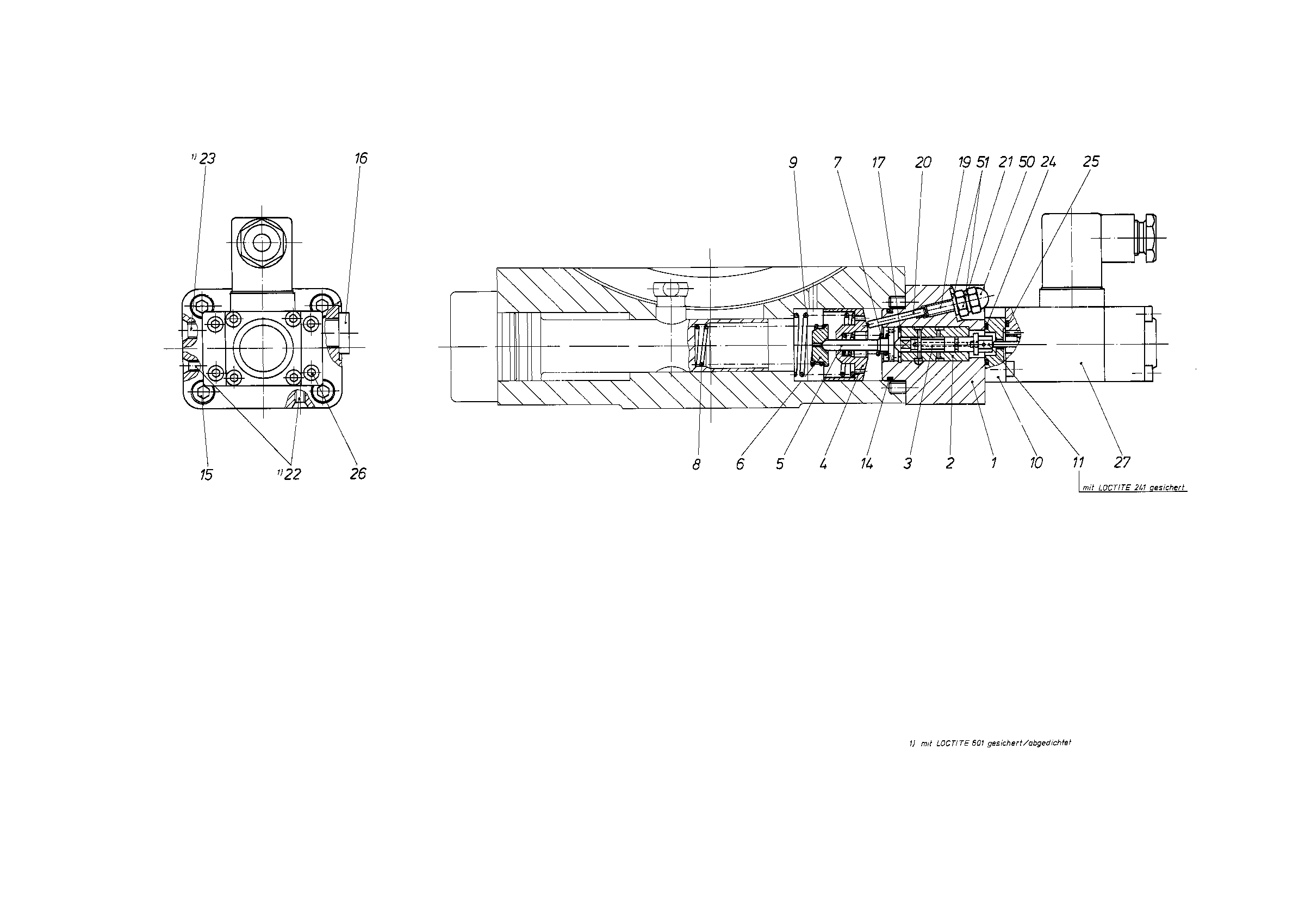

CONTROL PARTR909427258
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440719 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| 6 | R909412988 | SPRING DISK | 1 | |
| R909413346 | COMPRESSION SPRING | 1 | ||
| 8 | R909432469 | COMPRESSION SPRING | 1 | |
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909421255 | INTERMEDIATE PLATE | 1 | ||
| 11 | R909413339 | STOP SCREW | 1 | |
| 14 | R909085560 | O-RINGD | 1 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| 19 | R909152427 | SETSCREW | 1 | |
| R909087756 | STRAIGHT PIN | 1 | ||
| 21 | R909083611 | HEXAGON NUT | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 24 | R902600645 | O-RINGD | 1 | |
| R902600646 | O-RINGD | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| R909428278 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| 50 | R909157473 | CAP NUT | 1 | |
| 51 | R909152271 | SEAL RINGD | 2 |
