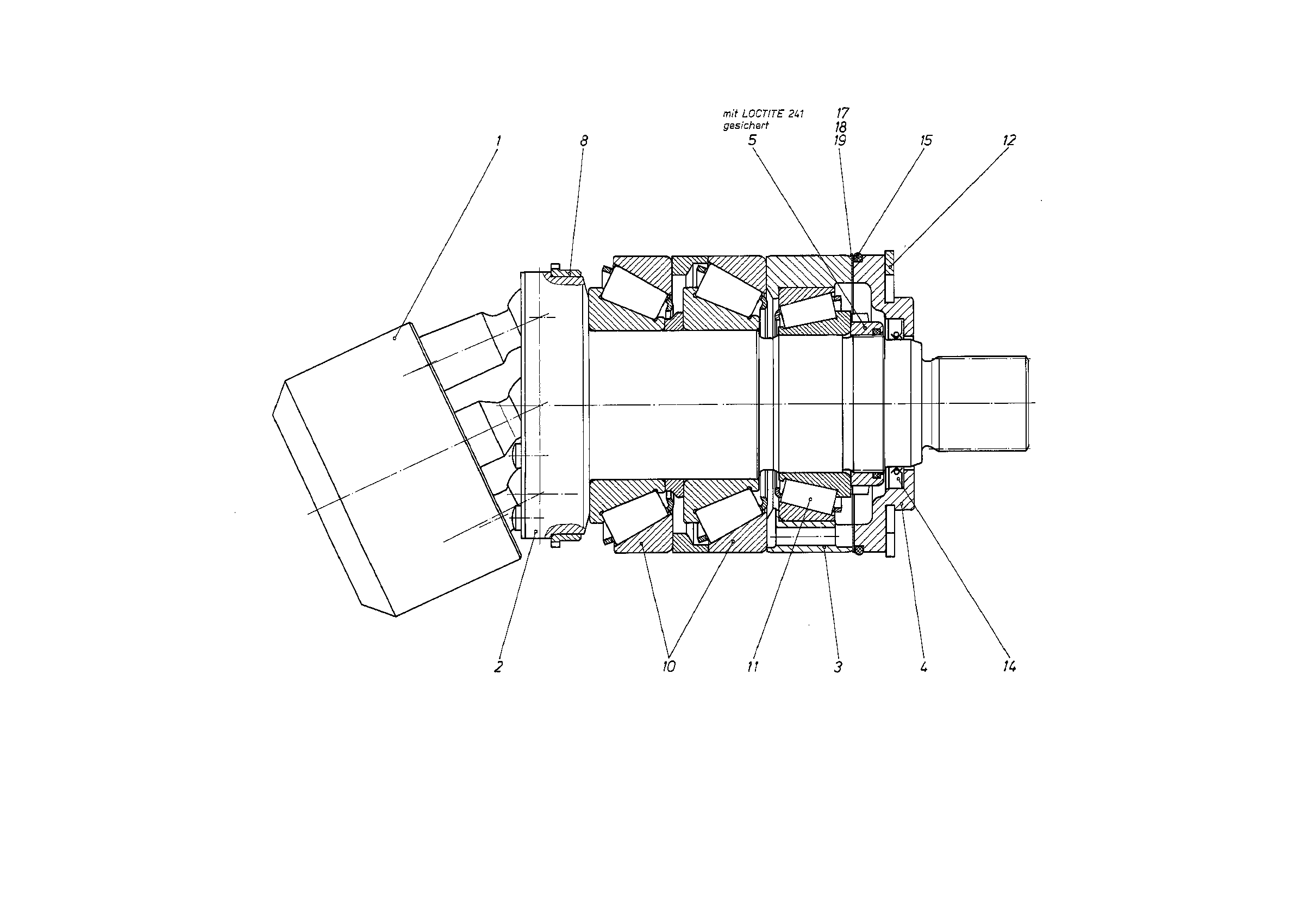

Assembly
ROTARY GROUPR909427266
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909428944 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909426274 | DRIVE SHAFT | 1 | |
| 3 | R909430089 | BEARING RING | 1 | |
| 4 | R909404384 | LOCKING RINGD | 1 | |
| R913037933 | SLOTTED ROUND NUT | 1 | ||
| 8 | R909436877 | ANNULAR GEAR | 1 | |
| R909157648 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909152775 | TAPERED-ROLLER BEARING | 1 | |
| R909083421 | RETAINING RING | 1 | ||
| 14 | R909831662 | ROTARY SHAFT LIP SEALD | 1 | |
| 15 | R909086635 | O-RINGD | 1 | |
| R909154260 | SHIM RING | 2 | ||
| 18 | R909087601 | SHIM RING | 1 | |
| R909154259 | SHIM RING | 1 |
