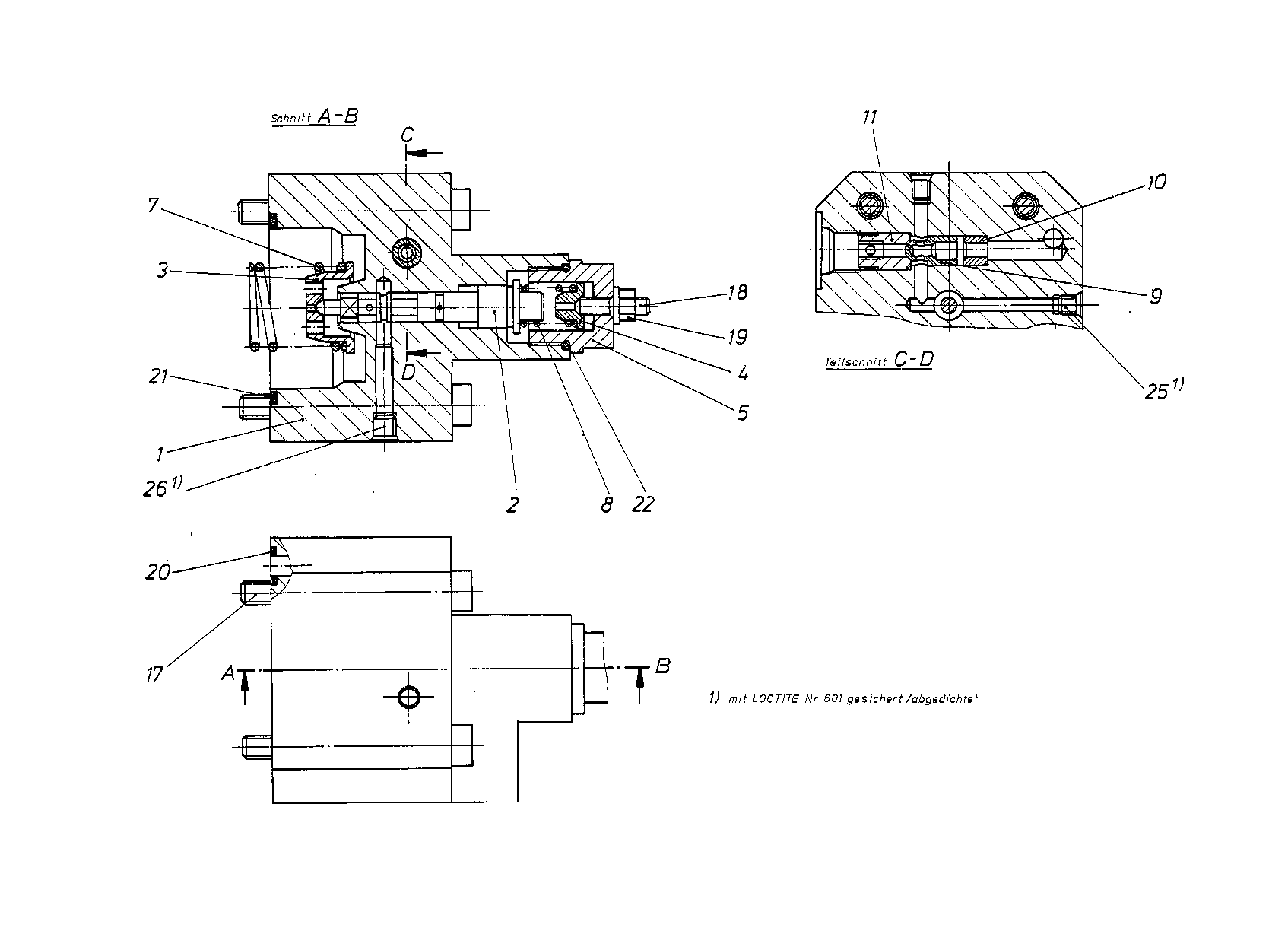

Assembly
CONTROL MODULER909427326
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909426720 | HOUSING | 1 | ||
| R909426035 | CONTROL PISTON | 1 | ||
| R909425798 | SPRING DISK | 1 | ||
| R909421369 | SPRING DISK | 1 | ||
| R909426038 | SCREW PLUG | 1 | ||
| R909426061 | COMPRESSION SPRING | 1 | ||
| R909420177 | COMPRESSION SPRING | 1 | ||
| R909651010 | VALVE SPOOL | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909426062 | BUSHING | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 4 | ||
| R909420991 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| R909086378 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
