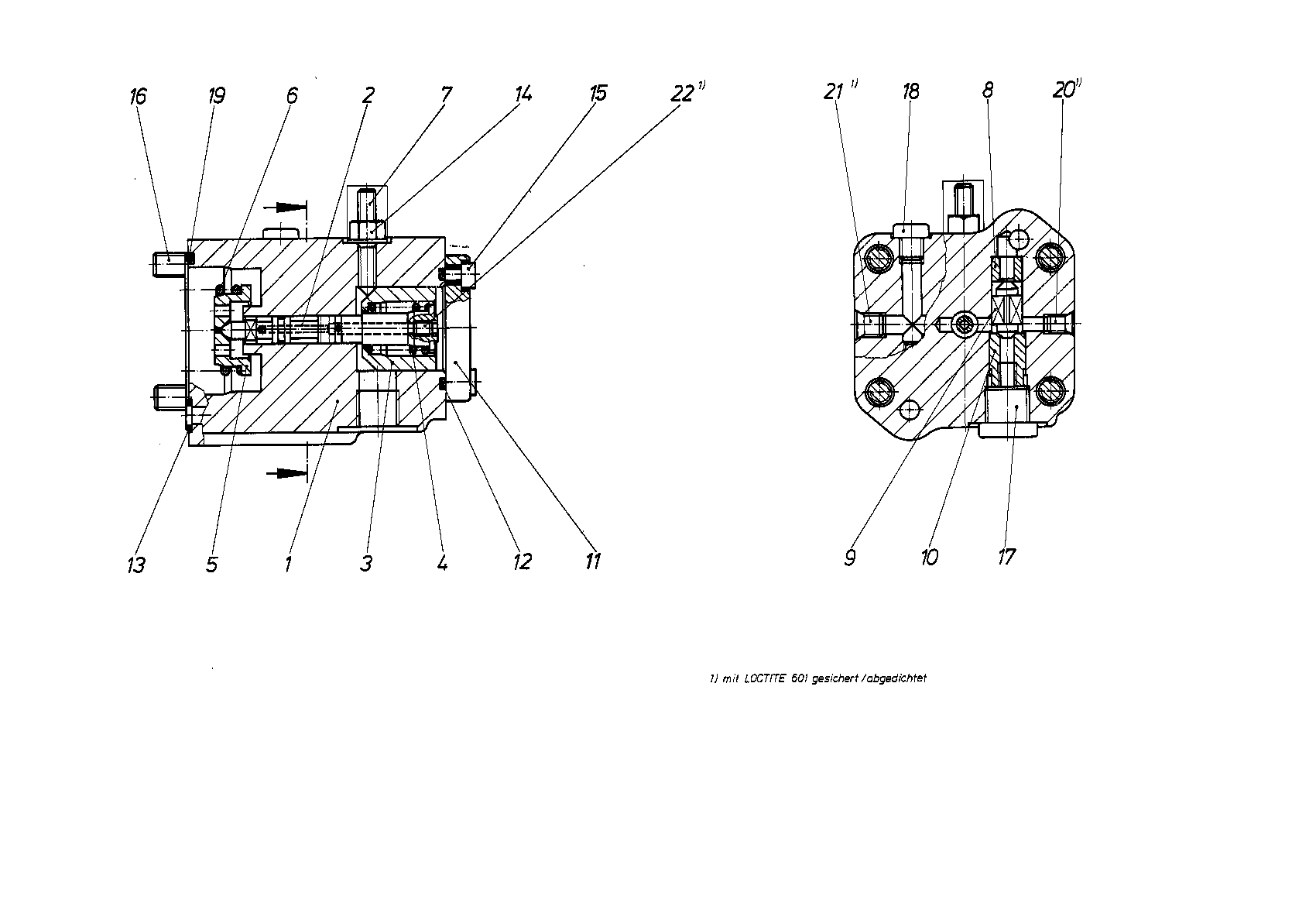

Assembly
CONTROL UNITR909427388
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902115762 | HOUSING | 1 | |
| 2 | R909650013 | CONTROL PISTON | 1 | |
| 3 | R909449344 | SPRING BUSH | 1 | |
| R909650014 | COMPRESSION SPRING | 1 | ||
| 5 | R909425804 | SPRING DISK | 1 | |
| R909425805 | COMPRESSION SPRING | 1 | ||
| 7 | R909425219 | SETSCREW | 1 | |
| 8 | R909425801 | BUSHING | 1 | |
| 9 | R909436407 | VALVE CONE | 1 | |
| R909425800 | BUSHING | 1 | ||
| 11 | R909426476 | COVER | 1 | |
| R909083769 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| 14 | R909152425 | SEALING NUTD | 1 | |
| 15 | R909083009 | SOCKET HEAD CAP SCREW | 4 | |
| R909083046 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R902600656 | O-RINGD | 1 | ||
| 20 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 21 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 22 | R909083489 | SETSCREW | 1 |
