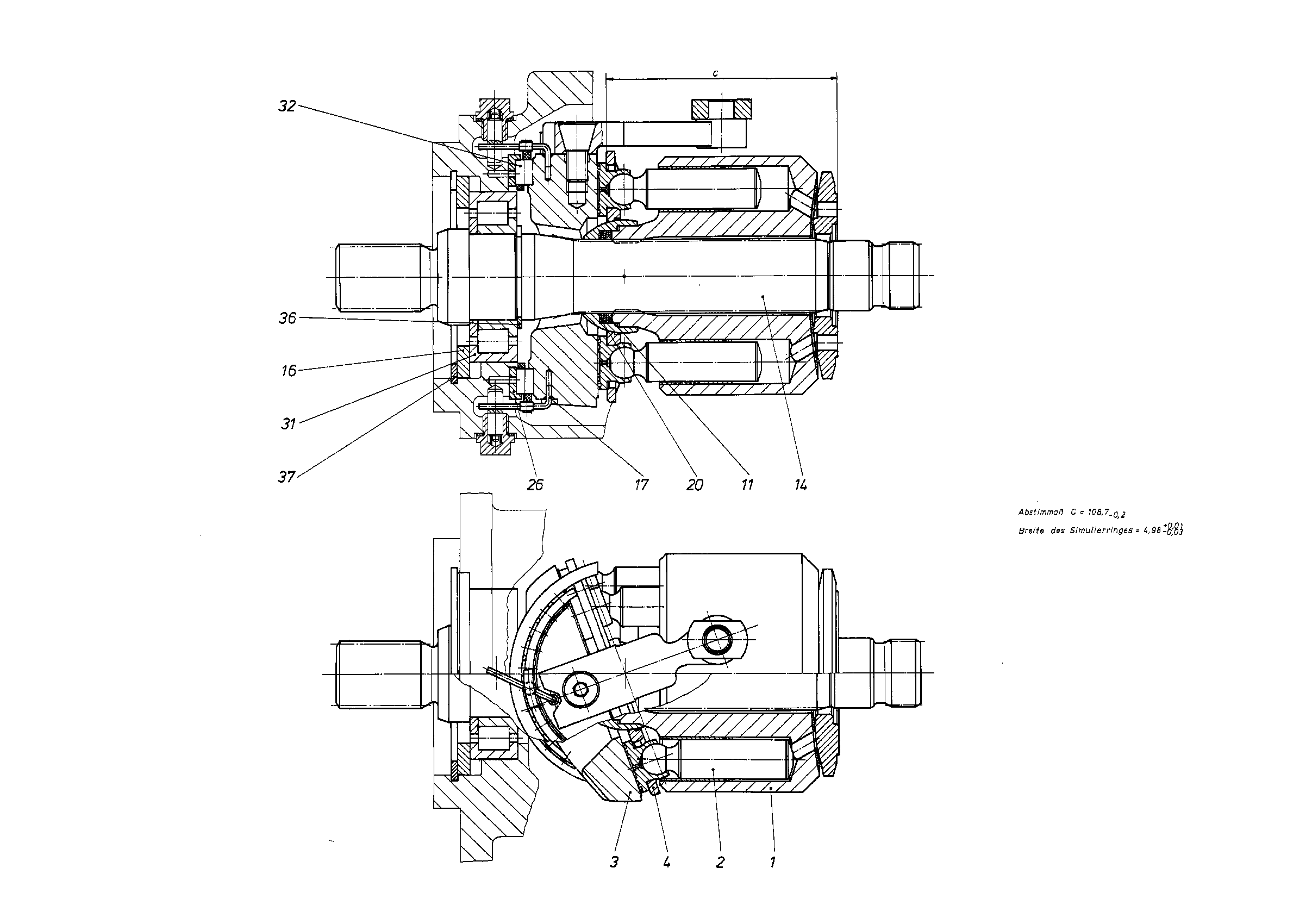

Assembly
ROTARY GROUPR909427490
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909416848 | CYLINDER Assembly parts list →L | 1 | |
| R909416736 | PISTON PAD | 9 | ||
| R909416849 | CRADLE Assembly parts list →L | 1 | ||
| R909416850 | RETAINING PLATE | 1 | ||
| R909416772 | CUP-SPRING STACK | 1 | ||
| 14 | R909419140 | DRIVE SHAFT | 1 | |
| 16 | R909435582 | SPACER RING | 1 | |
| R909403645 | WIRE | 2 | ||
| R909416851 | SHIM RING | 1 | ||
| R909416852 | SHIM RING | 1 | ||
| R909416853 | SHIM RING | 1 | ||
| R909416854 | SHIM RING | 1 | ||
| R902066586 | BEARING SHELL PAIR | 1 | ||
| 31 | R909153104 | CYL. ROLLER BEARING | 1 | |
| 32 | R909830152 | CAGE PAIR | 1 | |
| R909083362 | RETAINING RING | 1 | ||
| R909154609 | RETAINING RING | 1 |
