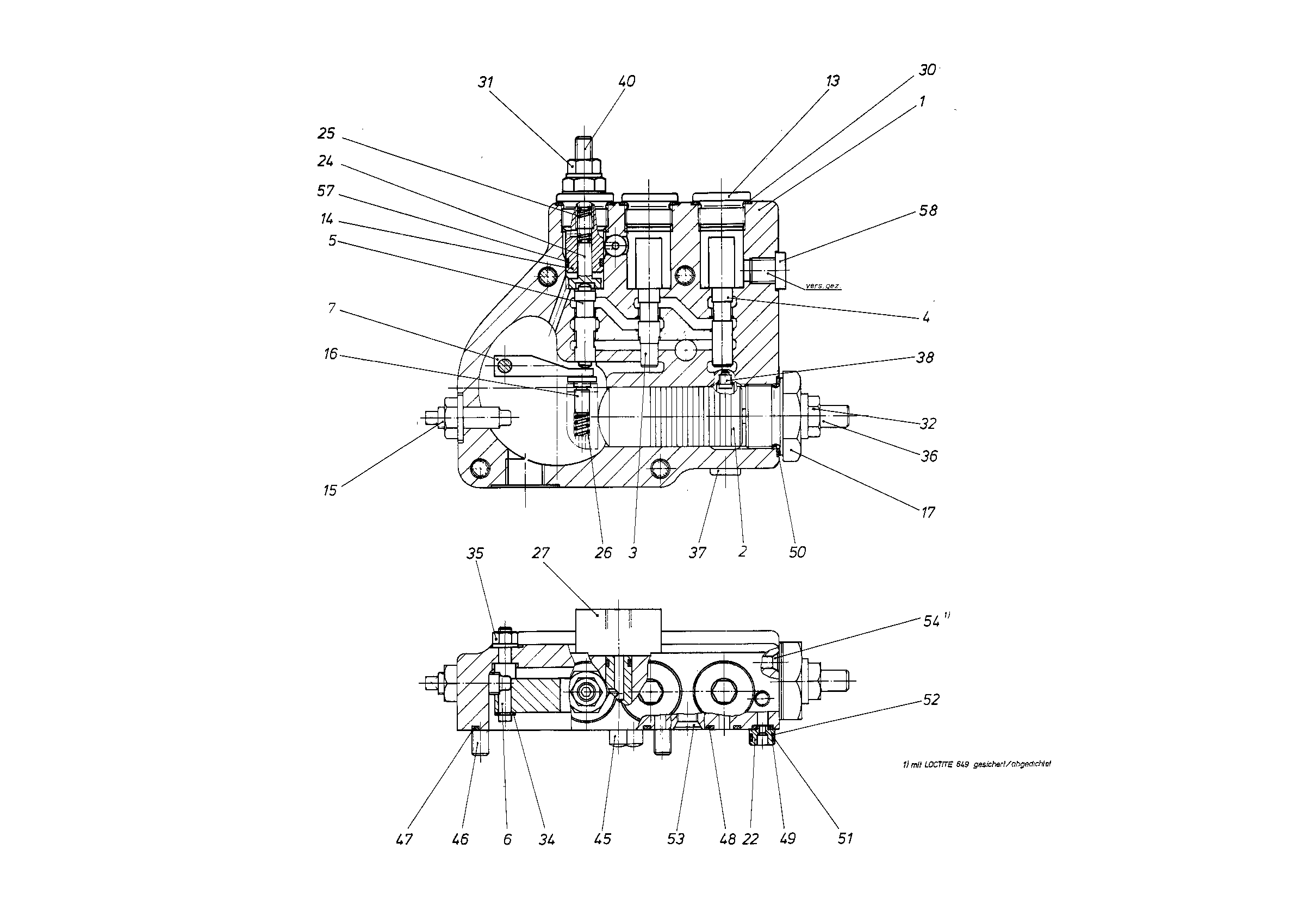

Assembly
REGULATORR909427508
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909435211 | CONTROL HOUSING | 1 | ||
| R909425015 | PISTON | 1 | ||
| R909426954 | LOCKING BOLT | 1 | ||
| R909425022 | LOCKING BOLT | 1 | ||
| 5 | R909430276 | CONTROL PISTON | 1 | |
| R909432637 | BEARING PIN | 1 | ||
| R909422285 | LEVER | 1 | ||
| R909083225 | SCREW PLUG | 2 | ||
| 14 | R909431687 | SCREW PLUG | 1 | |
| R909410086 | SETSCREW | 1 | ||
| R909422296 | PISTON PAD | 1 | ||
| 17 | R909408861 | SCREW PLUG | 1 | |
| 22 | R909435015 | SEAL BUSHING | 1 | |
| R909431688 | CONTROL PISTON | 1 | ||
| R909431934 | COMPRESSION SPRING | 1 | ||
| 26 | R909422297 | COMPRESSION SPRING | 1 | |
| R909428761 | CONNECTING PIECE Assembly parts list →L | 1 | ||
| R909152734 | SEAL RINGD | 3 | ||
| 31 | R909152707 | SEALING NUTD | 1 | |
| 32 | R909152426 | SEALING NUTD | 2 | |
| R909083342 | RETAINING RING | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086752 | SETSCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909419259 | SETSCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085360 | O-RINGD | 1 | ||
| 48 | R909083749 | O-RINGD | 2 | |
| R909157512 | O-RINGD | 1 | ||
| R909152739 | SEAL RINGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909087062 | BACKUP RINGD | 1 | ||
| 53 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 54 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083734 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 |
