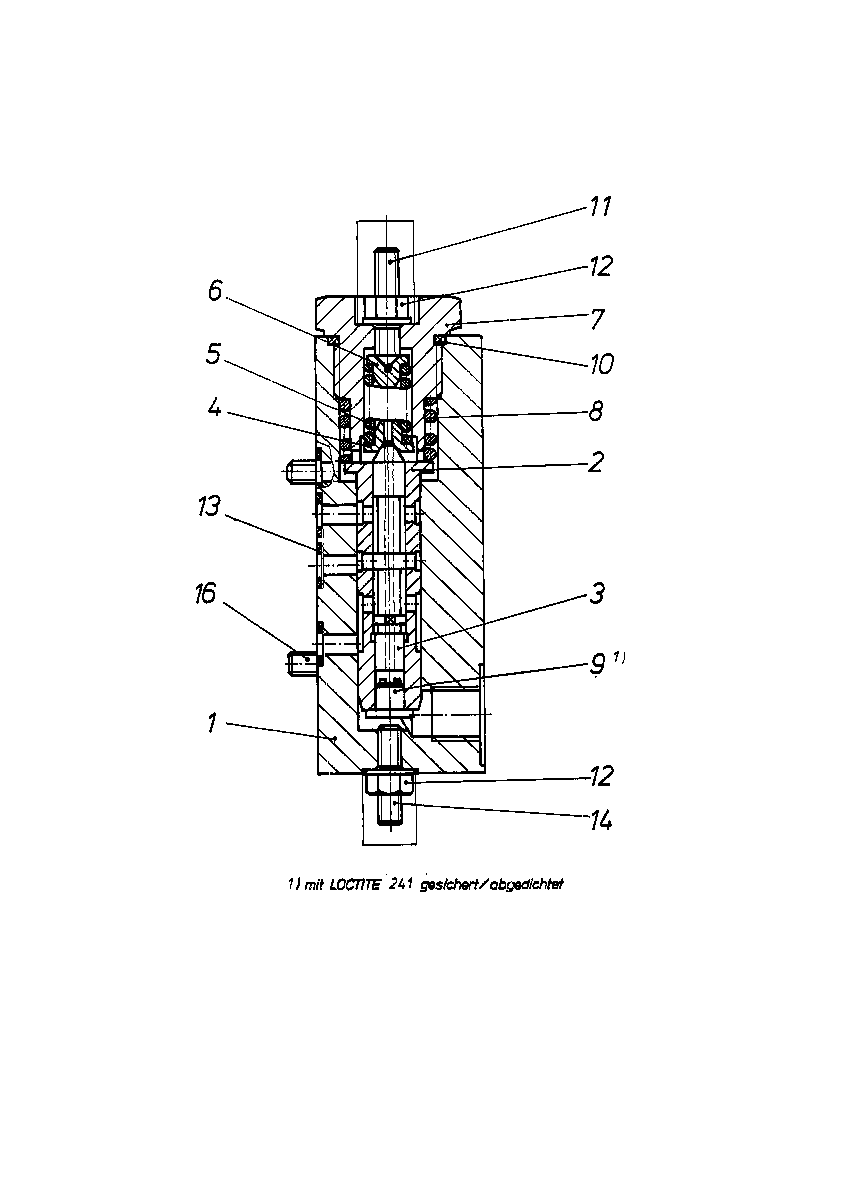

Assembly
SEQUENCE VALVER909427521
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909426737 | HOUSING | 1 | ||
| 2 | R909426966 | CONTROL SLEEVE | 1 | |
| 3 | R909426967 | CONTROL PISTON | 1 | |
| R909418908 | SPRING DISK | 1 | ||
| 5 | R909418909 | COMPRESSION SPRING | 1 | |
| R909416961 | SPRING DISK | 1 | ||
| 7 | R909426738 | SCREW PLUG | 1 | |
| 8 | R909415781 | COMPRESSION SPRING | 1 | |
| 9 | R909425225 | BOLT | 1 | |
| 10 | R909083761 | O-RINGD | 1 | |
| 11 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 2 | ||
| R909086498 | O-RINGD | 5 | ||
| R909151659 | SETSCREW | 1 | ||
| 16 | R909083027 | SOCKET HEAD CAP SCREW | 4 |
