Assembly

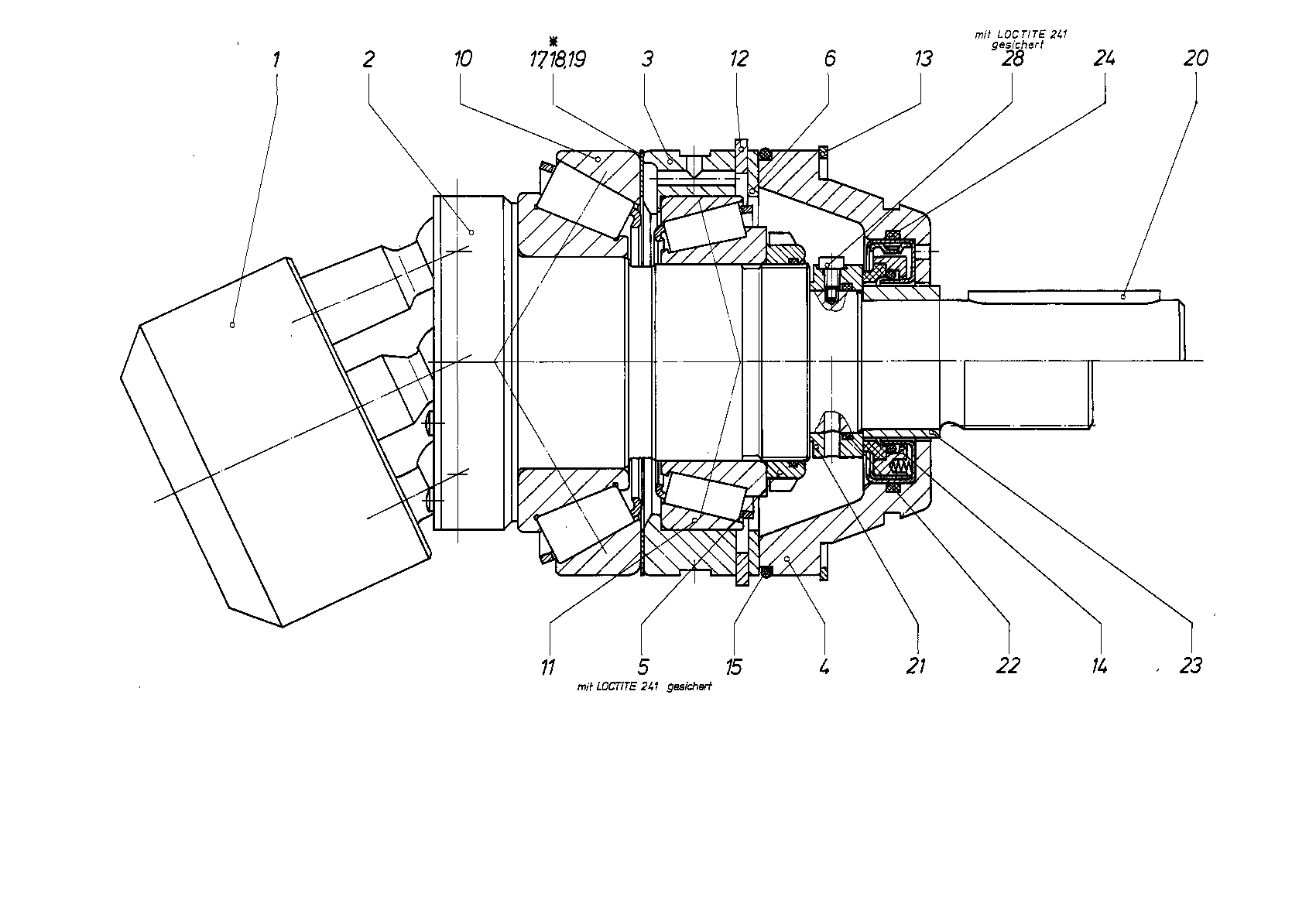

ROTARY GROUPR909427540
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429232 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909426985 | DRIVE SHAFT | 1 | ||
| R909410429 | BEARING RING | 1 | ||
| R909426984 | LOCKING RING | 1 | ||
| 5 | R913037933 | SLOTTED ROUND NUT | 1 | |
| R909156292 | SUPPORTING DISC | 1 | ||
| R909154344 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909152775 | TAPERED-ROLLER BEARING | 1 | |
| R909083421 | RETAINING RING | 1 | ||
| R909154380 | SNAP RING | 1 | ||
| 14 | R909153285 | SLIDE RING SEALD | 1 | |
| 15 | R909086635 | O-RINGD | 1 | |
| 17 | R909154260 | SHIM RING | 2 | |
| 18 | R909087601 | SHIM RING | 1 | |
| 19 | R909154259 | SHIM RING | 1 | |
| 21 | R909425321 | COUNTER RINGD | 1 | |
| R909152687 | O-RINGD | 1 | ||
| 23 | R909425323 | BUSHING | 1 | |
| R909085571 | O-RINGD | 1 | ||
| 28 | R909650099 | HEXAGON SCREW | 1 |
