Assembly

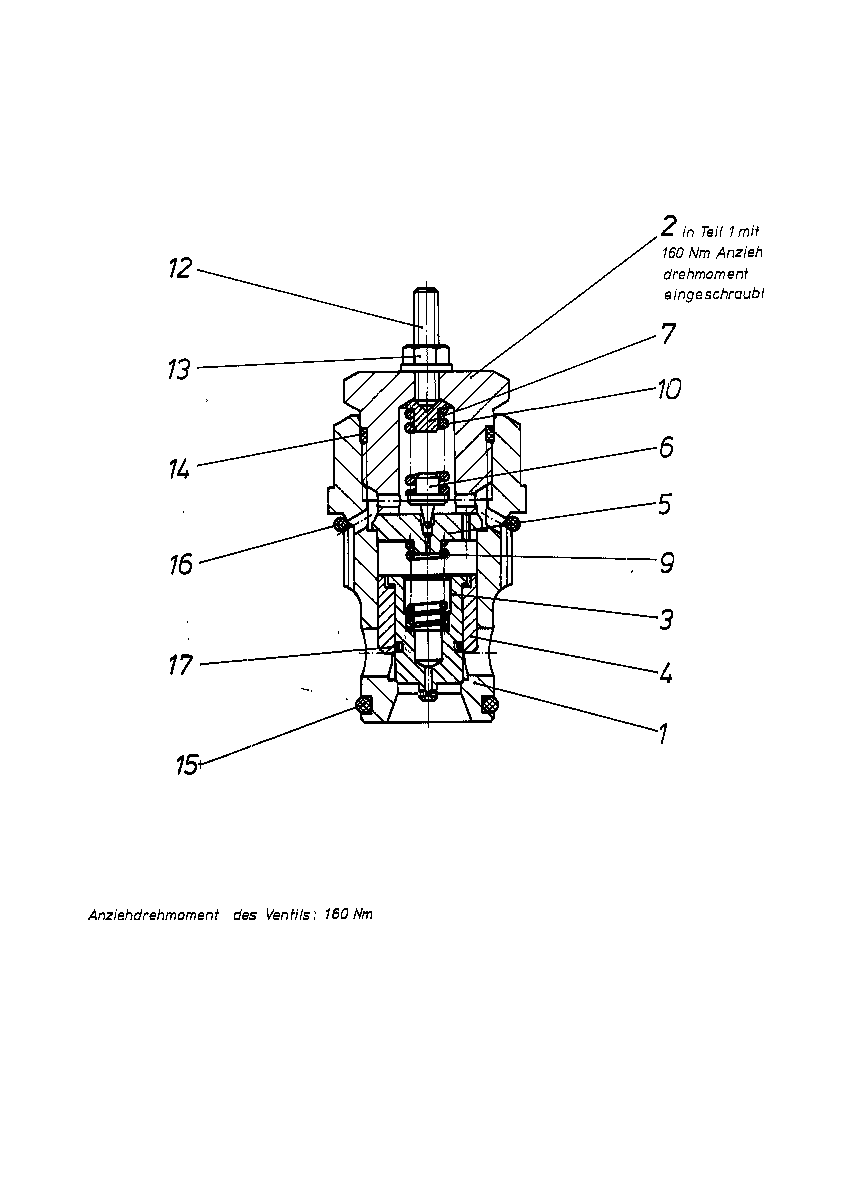

PRESSURE RELIEF VALVER909427556
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909422439 | VALVE BUSHING | 1 | |
| 2 | R909422877 | SPRING SLEEV | 1 | |
| 3 | R909430001 | PISTON | 1 | |
| 4 | R909430012 | RING PISTOND | 1 | |
| 5 | R909422876 | VALVE PLATE | 1 | |
| 6 | R909402841 | VALVE CONE | 1 | |
| R909402842 | SPRING DISK | 1 | ||
| 9 | R909430002 | COMPRESSION SPRING | 1 | |
| R909080803 | COMPRESSION SPRING | 1 | ||
| R909154140 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| 14 | R909086731 | O-RINGD | 1 | |
| R909085546 | O-RINGD | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| 17 | R909831887 | STEEL SEALING RING | 1 |
