Assembly

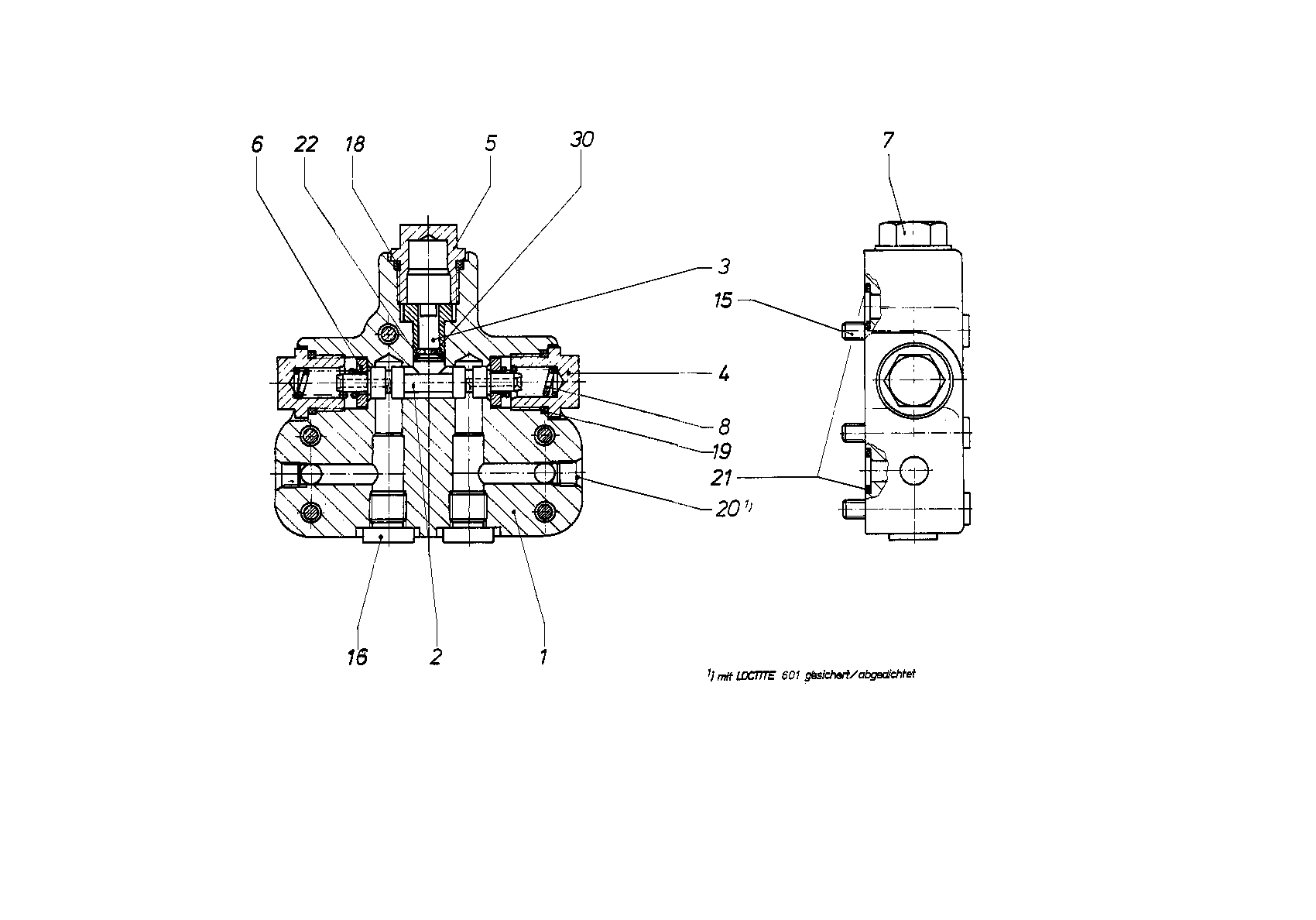

FLUSHING VALVER909427570
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419439 | FLUSHING VALVE HOUSING | 1 | |
| 2 | R909432410 | FLUSHING PISTON | 1 | |
| 3 | R909426156 | THROTTLE PISTON | 1 | |
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| 6 | R909417112 | WASHER | 2 | |
| 8 | R909417113 | COMPRESSION SPRING | 2 | |
| R909083025 | SOCKET HEAD CAP SCREW | 5 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| 18 | R909083757 | O-RINGD | 1 | |
| R909086435 | O-RINGD | 2 | ||
| 20 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 21 | R909083749 | O-RINGD | 3 | |
| 22 | R909153012 | RETAINING RING | 1 | |
| R909419696 | ORIFICE | 1 |
