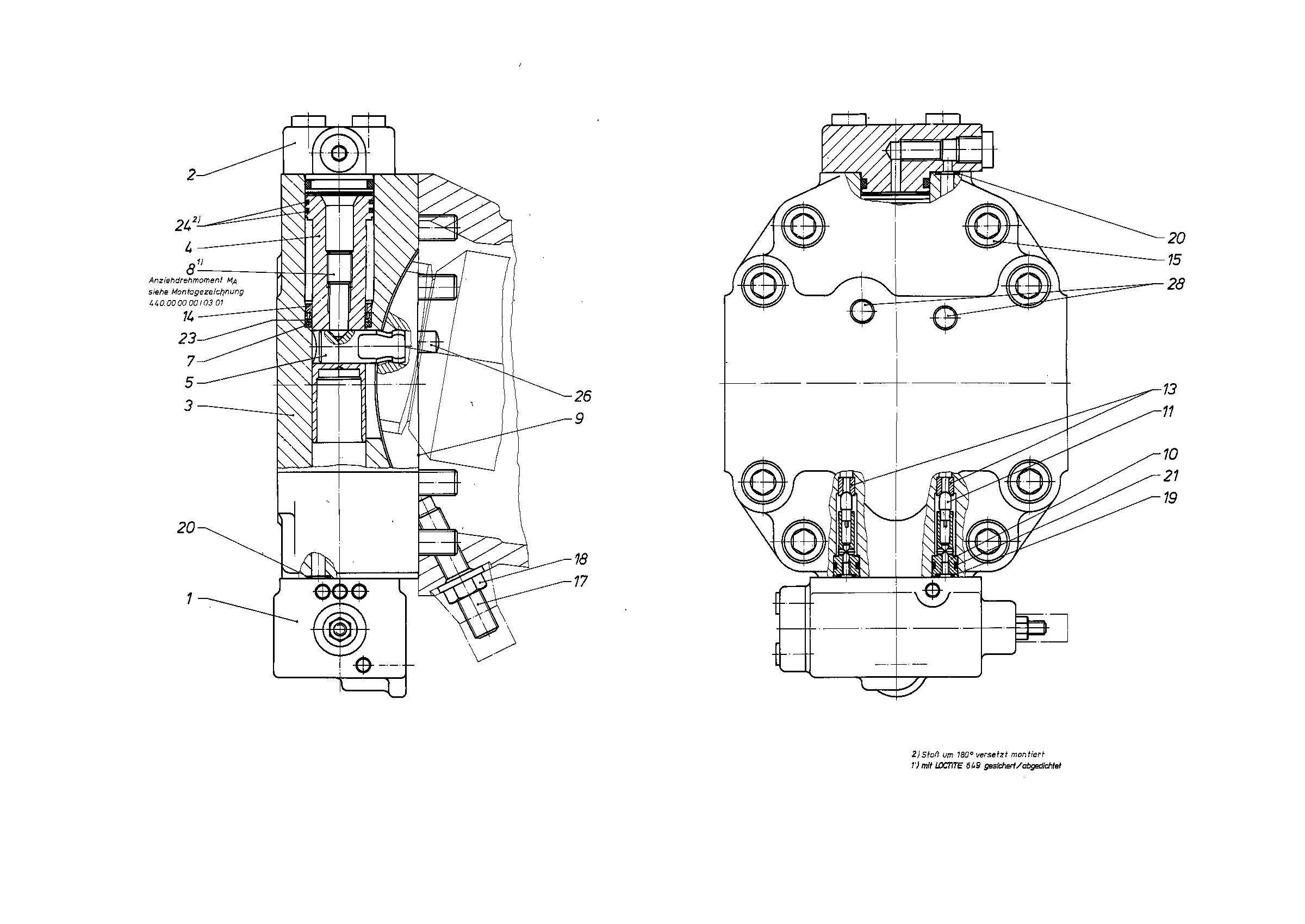

Assembly
CONTROLR909427594
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909427593 | CONTROL PART Assembly parts list →L | 1 | |
| R909427607 | COVER Assembly parts list →L | 1 | ||
| 3 | R909422907 | COVER PLATE | 1 | |
| R909422908 | POSITIONING PISTON | 1 | ||
| R909422909 | POSITIONING STUD | 1 | ||
| R909435815 | BACKUP RING | 1 | ||
| 8 | R909445056 | SETSCREW | 1 | |
| 9 | R902011854 | SEALD | 1 | |
| R909422896 | VALVE GUIDE | 2 | ||
| 11 | R909426662 | BOLT | 2 | |
| R902209845 | BUSHING | 2 | ||
| 14 | R909435819 | RETAINING RING | 1 | |
| 15 | R909083044 | SOCKET HEAD CAP SCREW | 8 | |
| R909446875 | SETSCREW Assembly parts list →L | 1 | ||
| 18 | R909152707 | SEALING NUTD | 1 | |
| R909157248 | O-RINGD | 2 | ||
| R909087877 | O-RINGD | 3 | ||
| R909087877 | O-RINGD | 2 | ||
| 23 | R909157307 | ROD SEALD | 1 | |
| 24 | R909157306 | R-RINGD | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
