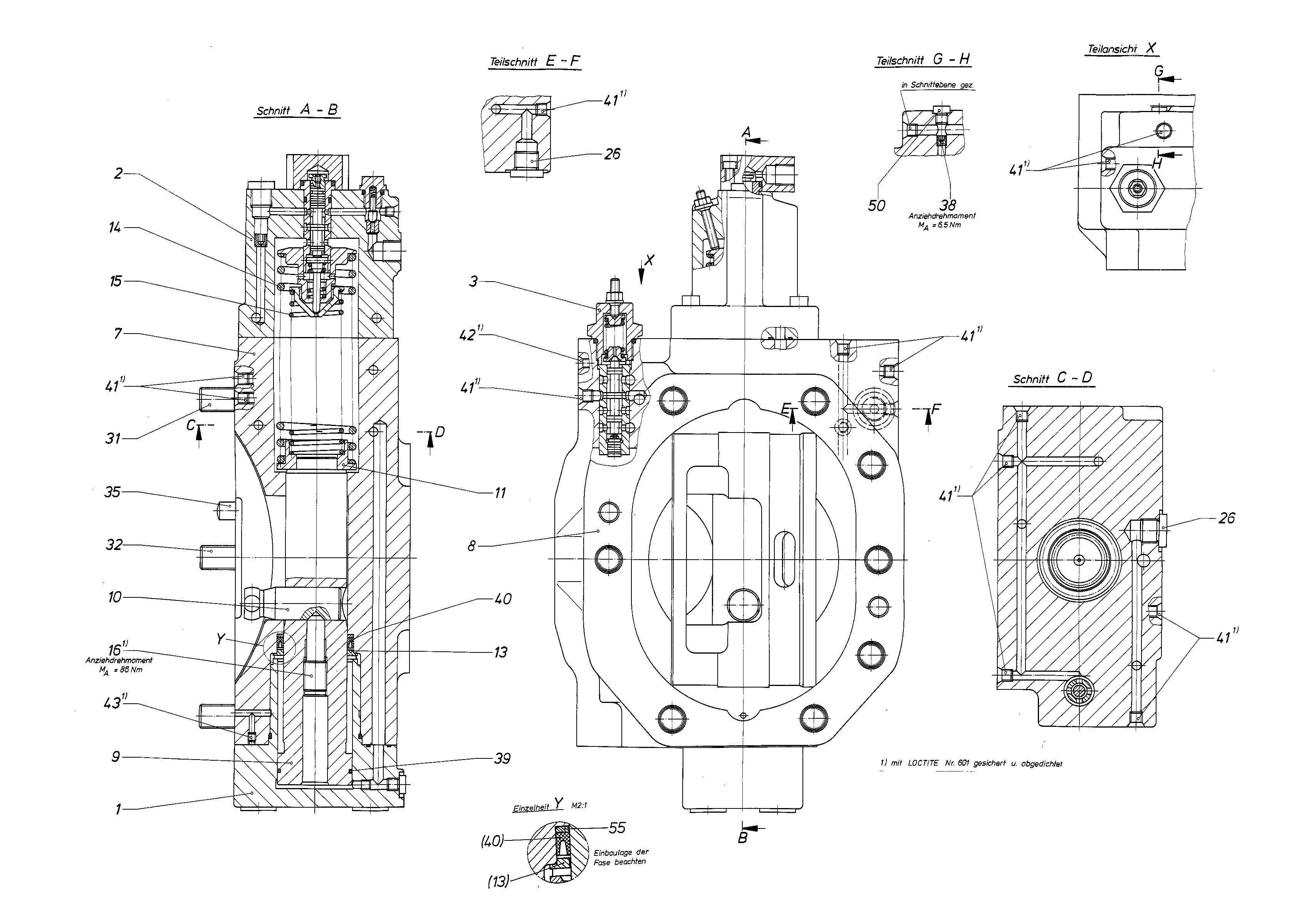

Assembly
CONTROLR909427600
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418613 | COVER Assembly parts list →L | 1 | ||
| R909427598 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909427599 | CONTROL PART Assembly parts list →L | 1 | ||
| R909418503 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024645 | SEAL | 1 | ||
| R909424412 | RING | 1 | ||
| R909418517 | COMPRESSION SPRING | 1 | ||
| R909418518 | COMPRESSION SPRING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUG | 2 | ||
| R909083144 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156777 | R-RING | 1 | ||
| R909157036 | ROD SEAL | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUG | 1 | ||
| R909424410 | BACKUP RING | 1 |
