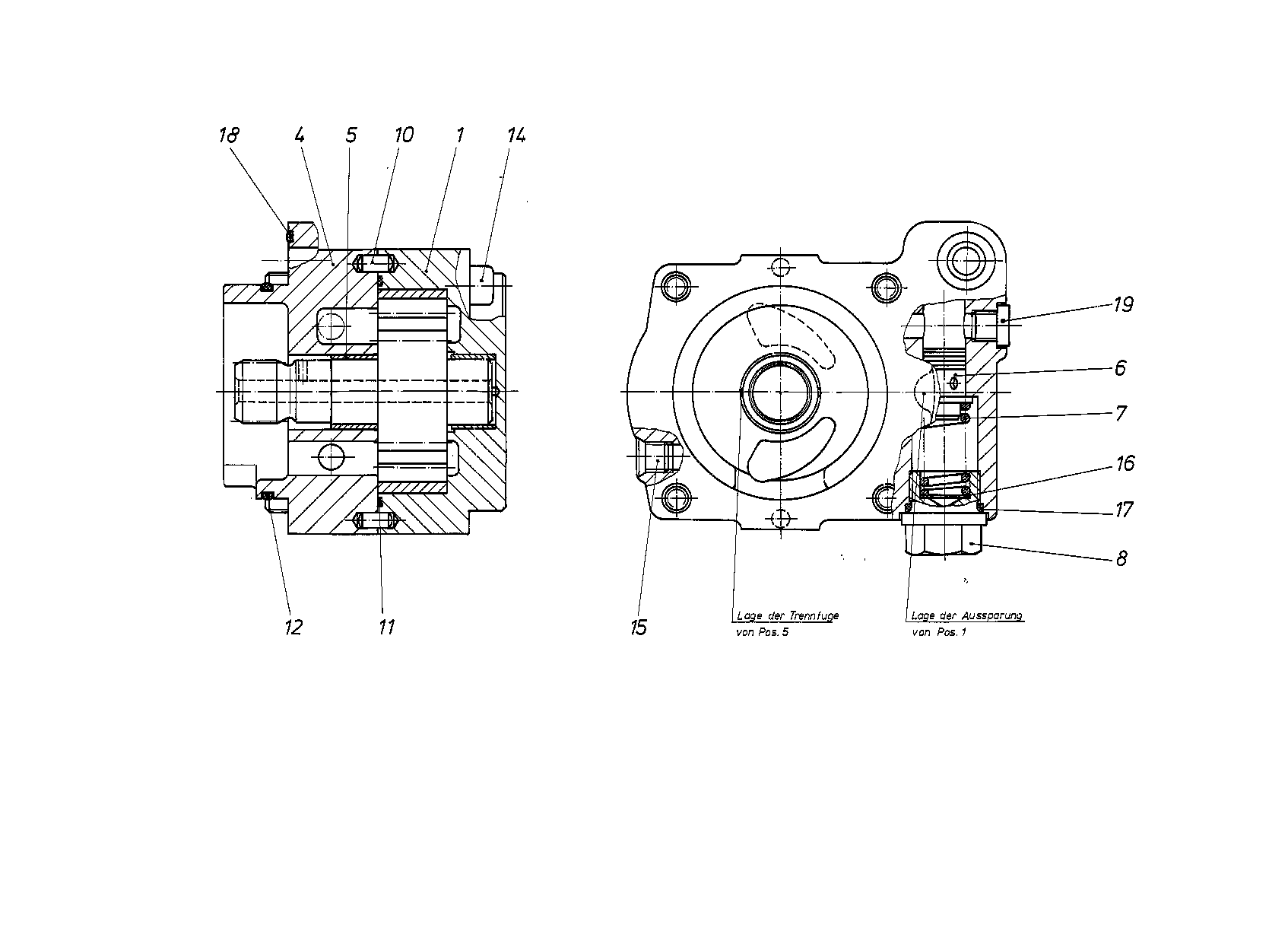

Assembly
INTERNAL GEAR PUMPR909427813
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909403652 | PUMP COVER Assembly parts list →L | 1 | |
| 4 | R909430350 | INTERMEDIATE PLATE | 1 | |
| R909069490 | BUSHING | 1 | ||
| 6 | R909426804 | VALVE SPOOL | 1 | |
| 7 | R909403718 | COMPRESSION SPRING | 1 | |
| 8 | R909409509 | SCREW PLUG | 1 | |
| R909084162 | STRAIGHT PIN | 2 | ||
| 11 | R909083748 | O-RINGD | 1 | |
| R909084462 | O-RINGD | 1 | ||
| 14 | R909083049 | SOCKET HEAD CAP SCREW | 4 | |
| 15 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909080515 | WASHER | 1 | ||
| 17 | R909083760 | O-RINGD | 1 | |
| 18 | R909083753 | O-RINGD | 1 | |
| 19 | R909153364 | SCREW PLUGD | 1 |
