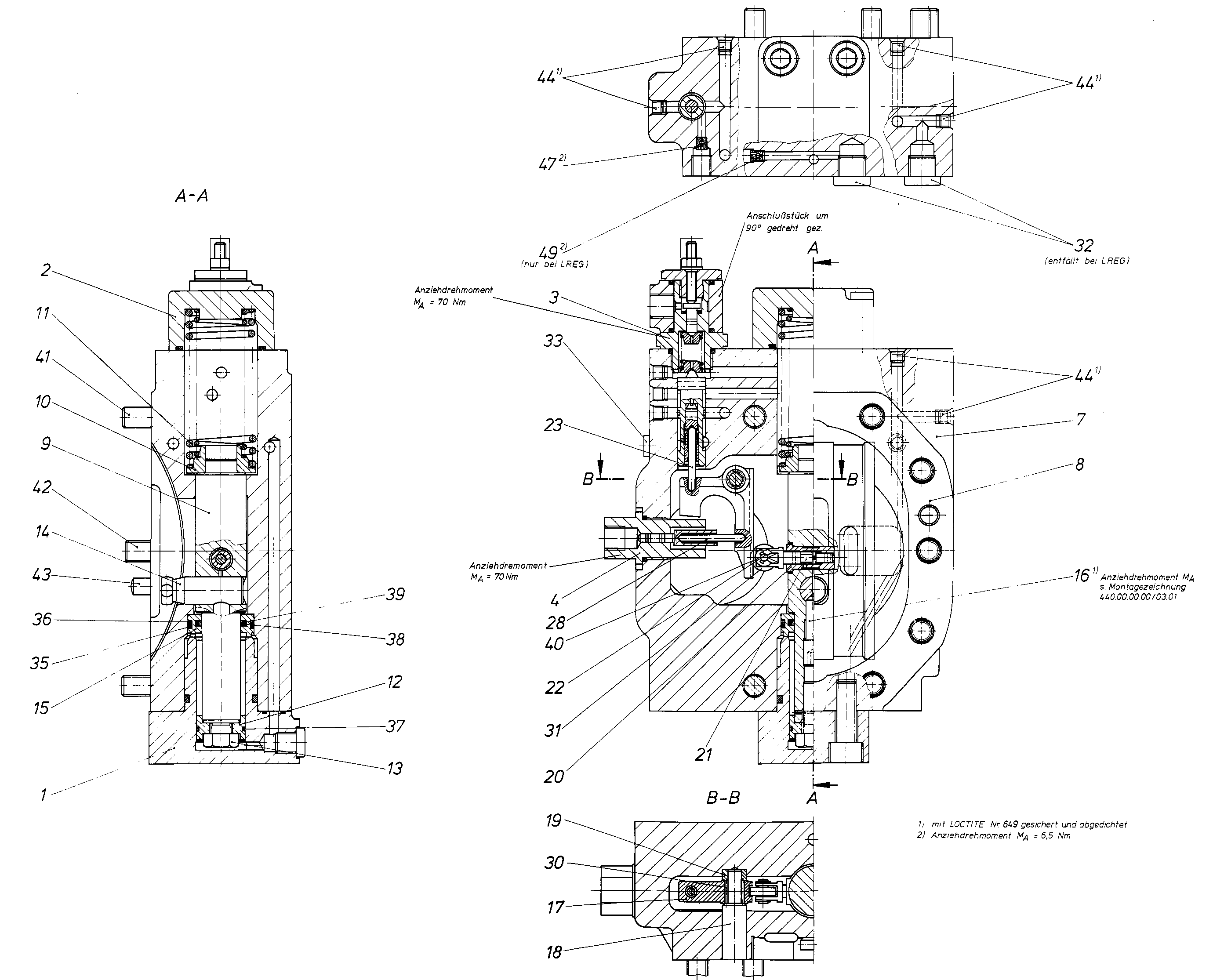

Assembly
CONTROLR909427820
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902000046 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909423869 | COVER Assembly parts list →L | 1 | ||
| R909437370 | CONTROL PART Assembly parts list →L | 1 | ||
| R909437480 | ADJUSTING PART Assembly parts list →L | 1 | ||
| R909426398 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024643 | SEALD | 1 | ||
| R909426391 | POSITIONING PISTON | 1 | ||
| R909426390 | SPRING DISK | 1 | ||
| R909426024 | COMPRESSION SPRING | 1 | ||
| R909426389 | PISTON | 1 | ||
| R902031876 | HEXAGON SCREW | 1 | ||
| R909425505 | POSITIONING STUD | 1 | ||
| R909426388 | SEAL RING | 1 | ||
| R909413014 | SETSCREW | 1 | ||
| R909426911 | LEVER | 1 | ||
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909426914 | ADJUSTING BUSH | 1 | ||
| R909425733 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909421357 | PIN | 1 | ||
| R909425473 | PIN | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909086730 | O-RINGD | 1 | ||
| R909157625 | BACKUP RINGD | 1 | ||
| R902602840 | STEEL SEALING RINGD | 1 | ||
| R909157628 | ROD SEALD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909085810 | LOCKING WASHER | 2 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909156492 | NOZZLE | 1 |
