Assembly

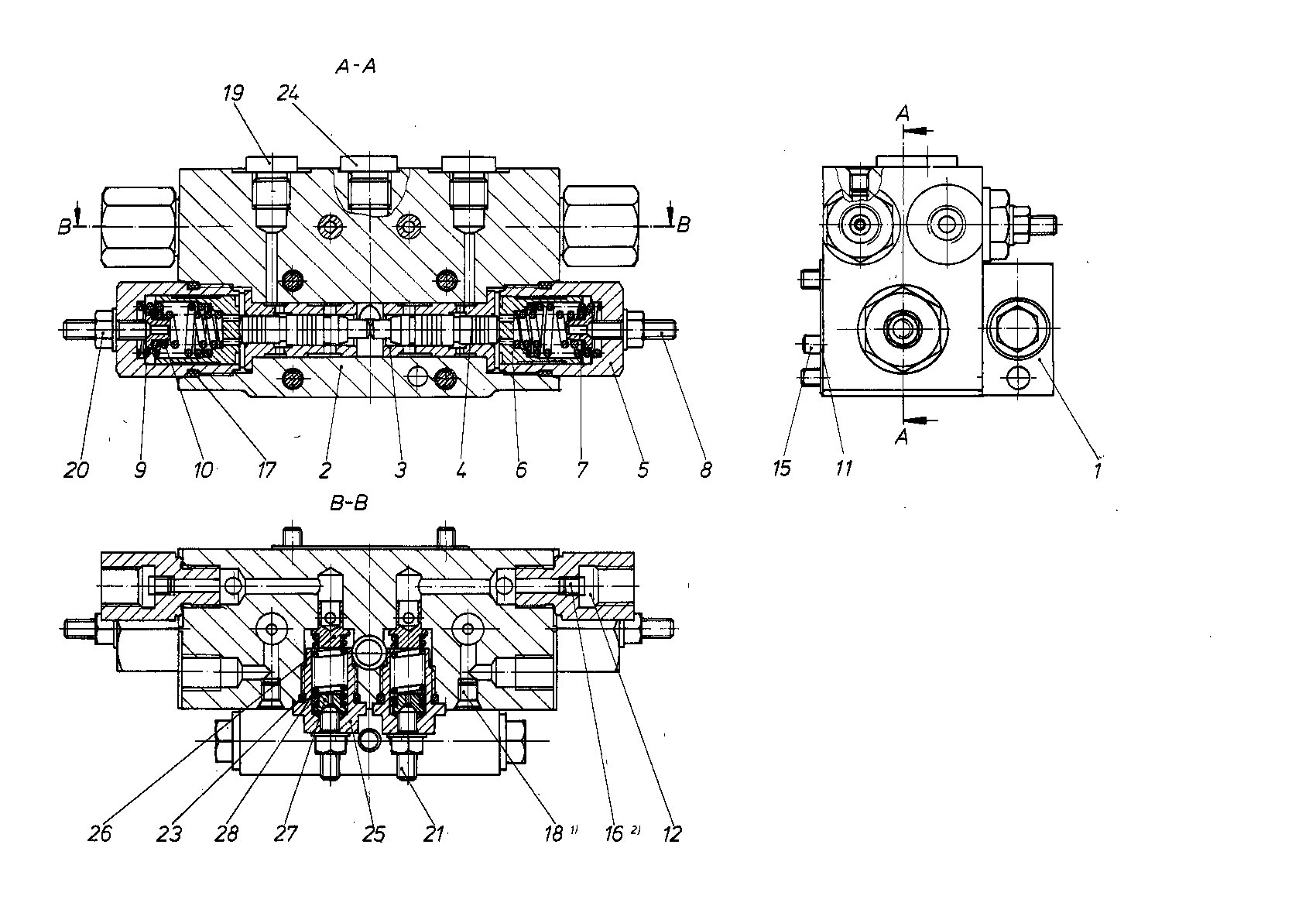

TORQUE-PRESSURE CONTROL VALVER909427928
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909423847 | THROTTLE VALVE Assembly parts list →L | 1 | ||
| 2 | R909432982 | HOUSING | 1 | |
| 3 | R909426488 | CONTROL SLEEVE | 2 | |
| R909422504 | PISTON | 2 | ||
| 5 | R909422551 | SCREW PLUG | 2 | |
| 6 | R909422552 | SPRING BUSH | 2 | |
| 7 | R902215679 | SPRING DISK | 2 | |
| 8 | R909414604 | SETSCREW | 2 | |
| 9 | R909074775 | COMPRESSION SPRING | 2 | |
| R909408166 | COMPRESSION SPRING | 2 | ||
| 11 | R913049009 | SEALD | 1 | |
| 12 | R909424849 | THREADED REDUCING STUD | 2 | |
| R913009665 | STRAIGHT PIN | 2 | ||
| 16 | R909156493 | NOZZLE | 2 | |
| R909083764 | O-RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 19 | R909151692 | SCREW PLUG | 2 | |
| R909152425 | SEALING NUT | 4 | ||
| 21 | R909153284 | SETSCREW | 2 | |
| 23 | R909086435 | O-RINGD | 2 | |
| 24 | R909151979 | SCREW PLUG | 1 | |
| 25 | R909424573 | SCREW PLUG | 2 | |
| R909424575 | VALVE SPOOL | 2 | ||
| R909424574 | SPRING DISK | 2 | ||
| 28 | R909424796 | COMPRESSION SPRING | 2 |
