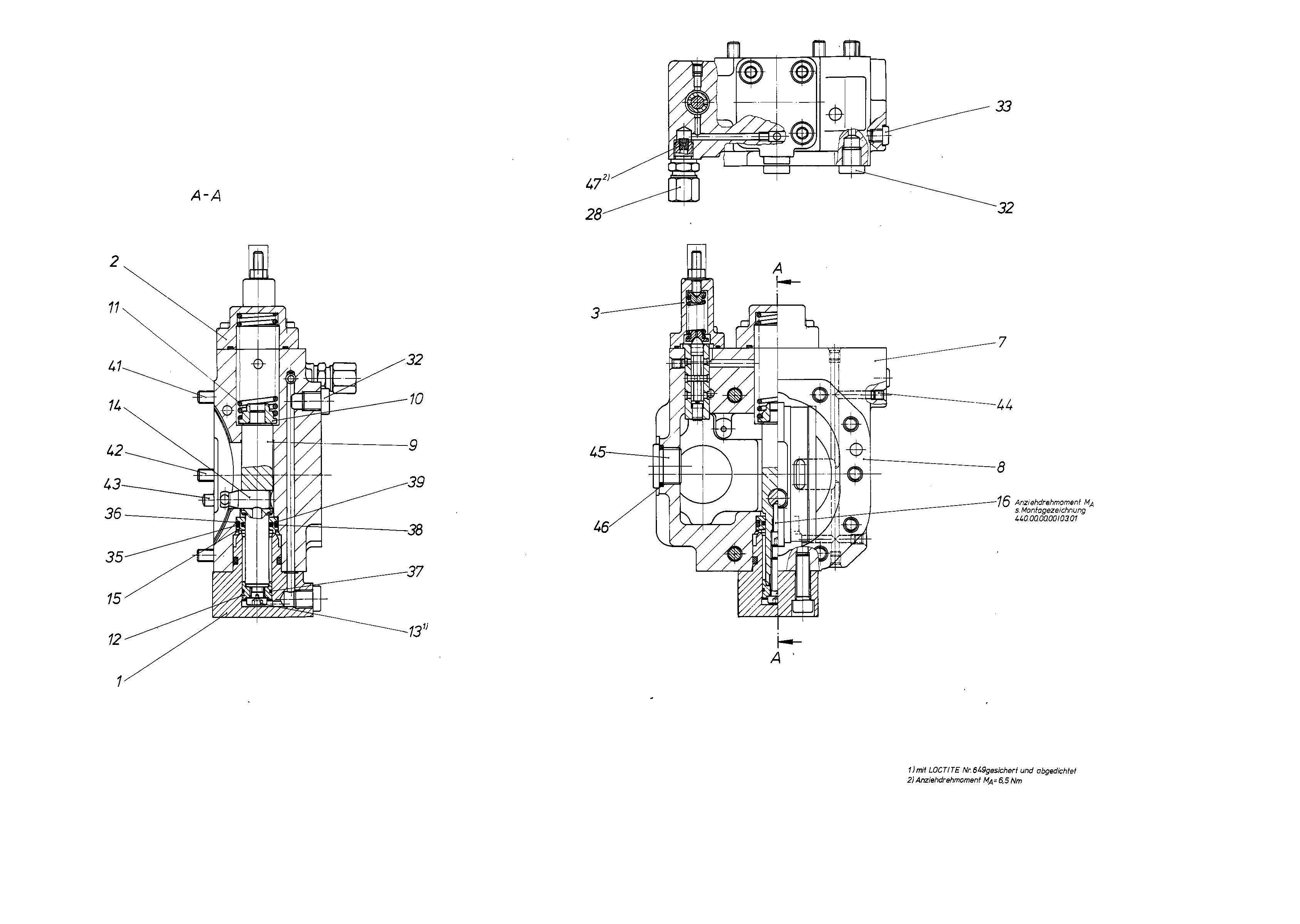

Assembly
CONTROLR909427931
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902014052 | GUIDE COVER Assembly parts list →L | 1 | |
| 2 | R909427187 | COVER Assembly parts list →L | 1 | |
| R909427553 | CONTROL PART Assembly parts list →L | 1 | ||
| 7 | R909426411 | COVER PLATE, COUNTER CLOCKWISE | 1 | |
| R902024641 | SEALD | 1 | ||
| 9 | R909430103 | POSITIONING PISTON | 1 | |
| R909430100 | SPRING DISK | 1 | ||
| 11 | R909426527 | COMPRESSION SPRING | 1 | |
| 12 | R909430099 | PISTON | 1 | |
| 13 | R909083191 | SOCKET HEAD CAP SCREW | 1 | |
| R909425515 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909403866 | THREADED FASTENER | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| 33 | R909154024 | SCREW PLUGD | 1 | |
| R909083761 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| 41 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909156492 | NOZZLE | 1 |
